Control Module: Diagrams

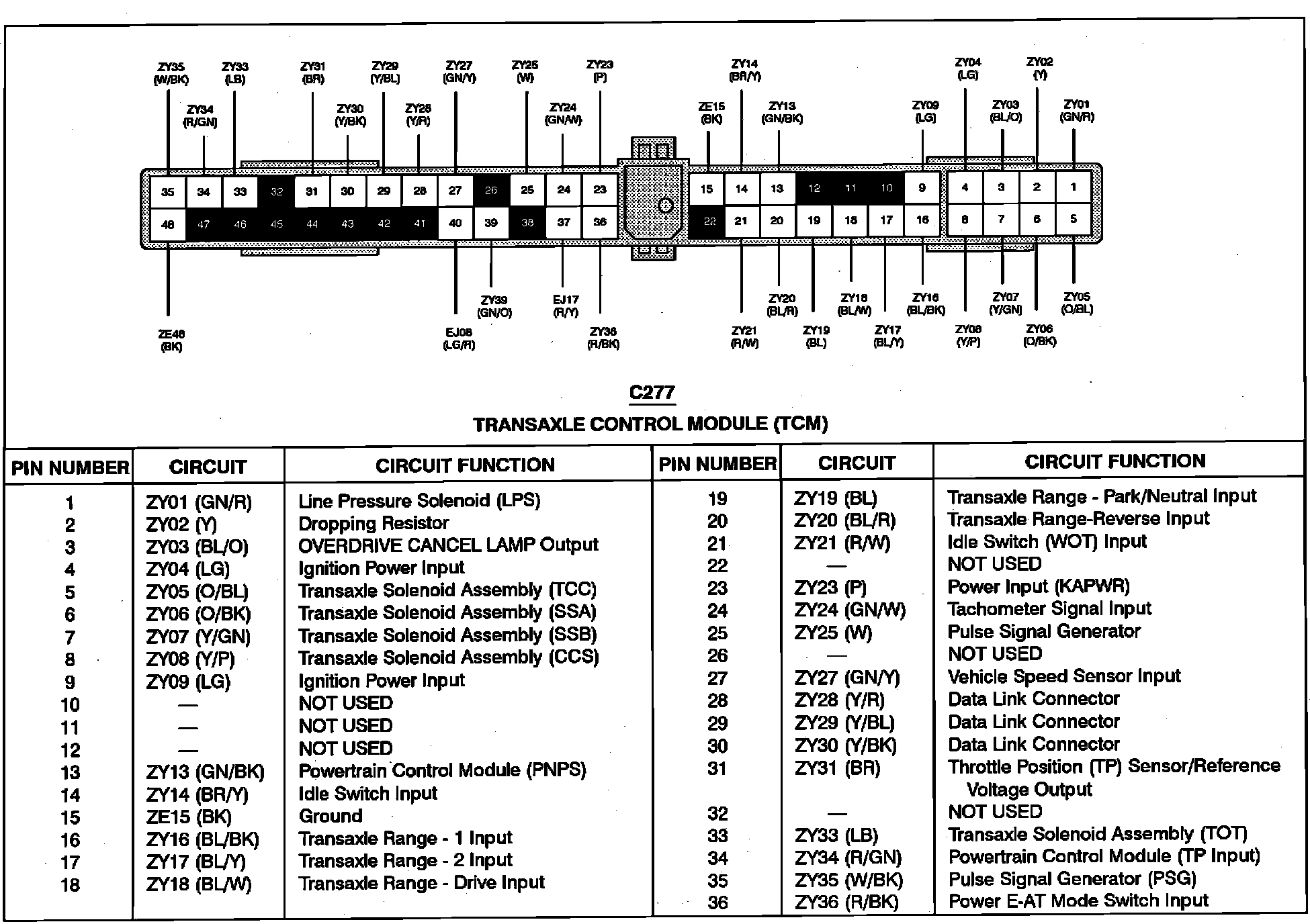

Transaxle Control Module (TCM):



Transaxle Control Module (TCM) Pinout Chart:
