Engine Controls

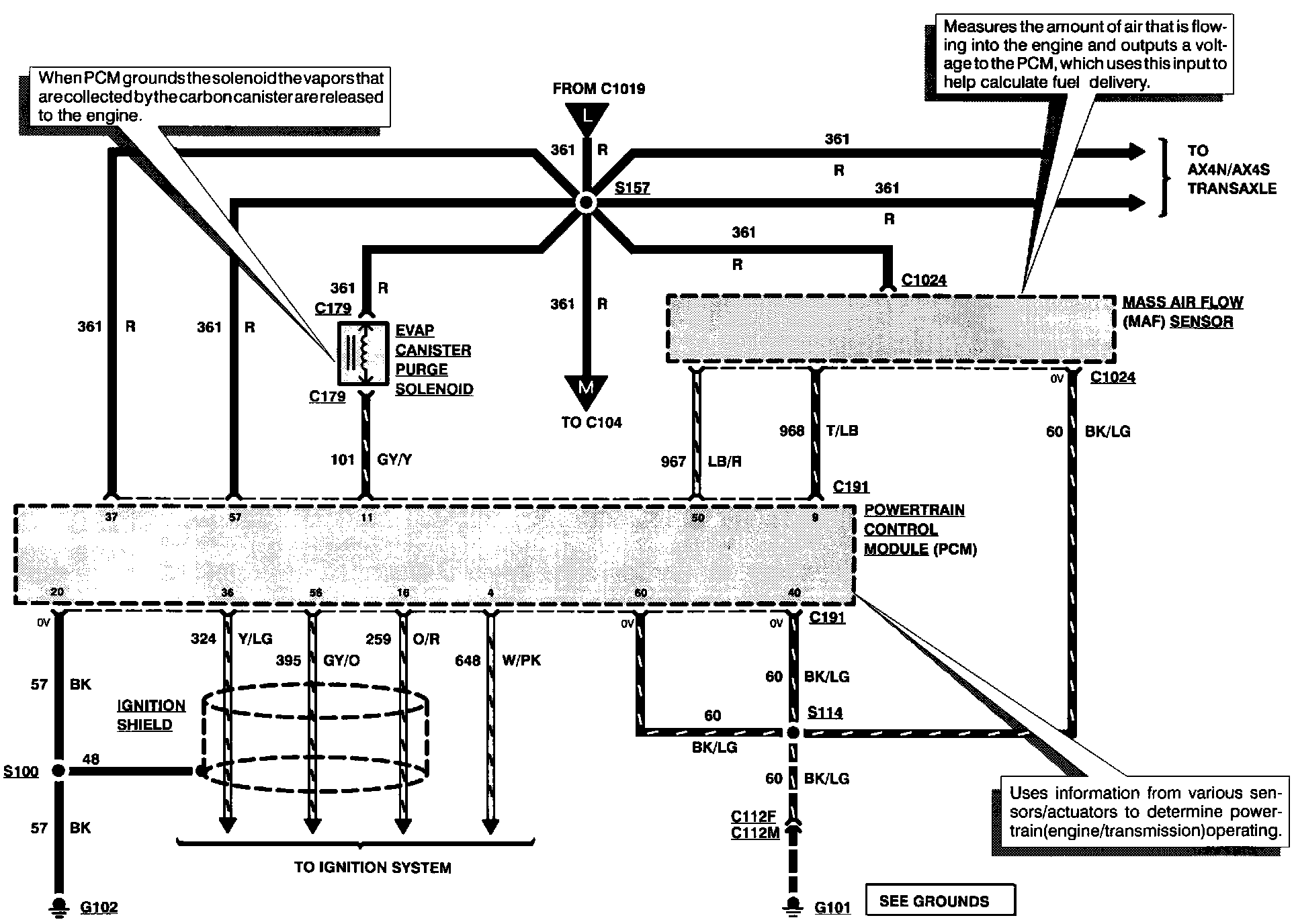

Engine Controls (Part 1 Of 7):

EVAPORATIVE CANISTER PURGE SOLENOID

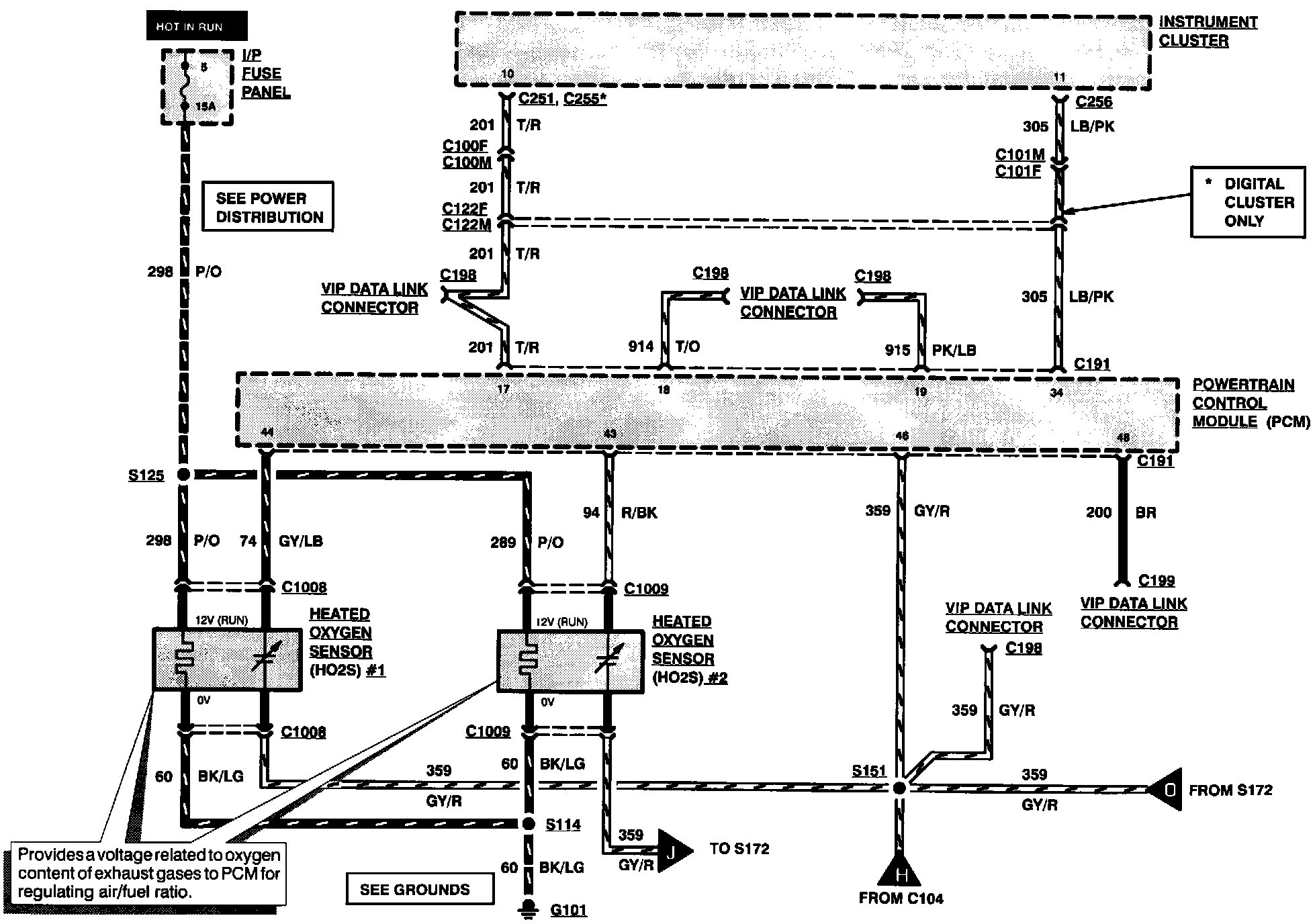

Engine Controls (Part 2 Of 7):

HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2

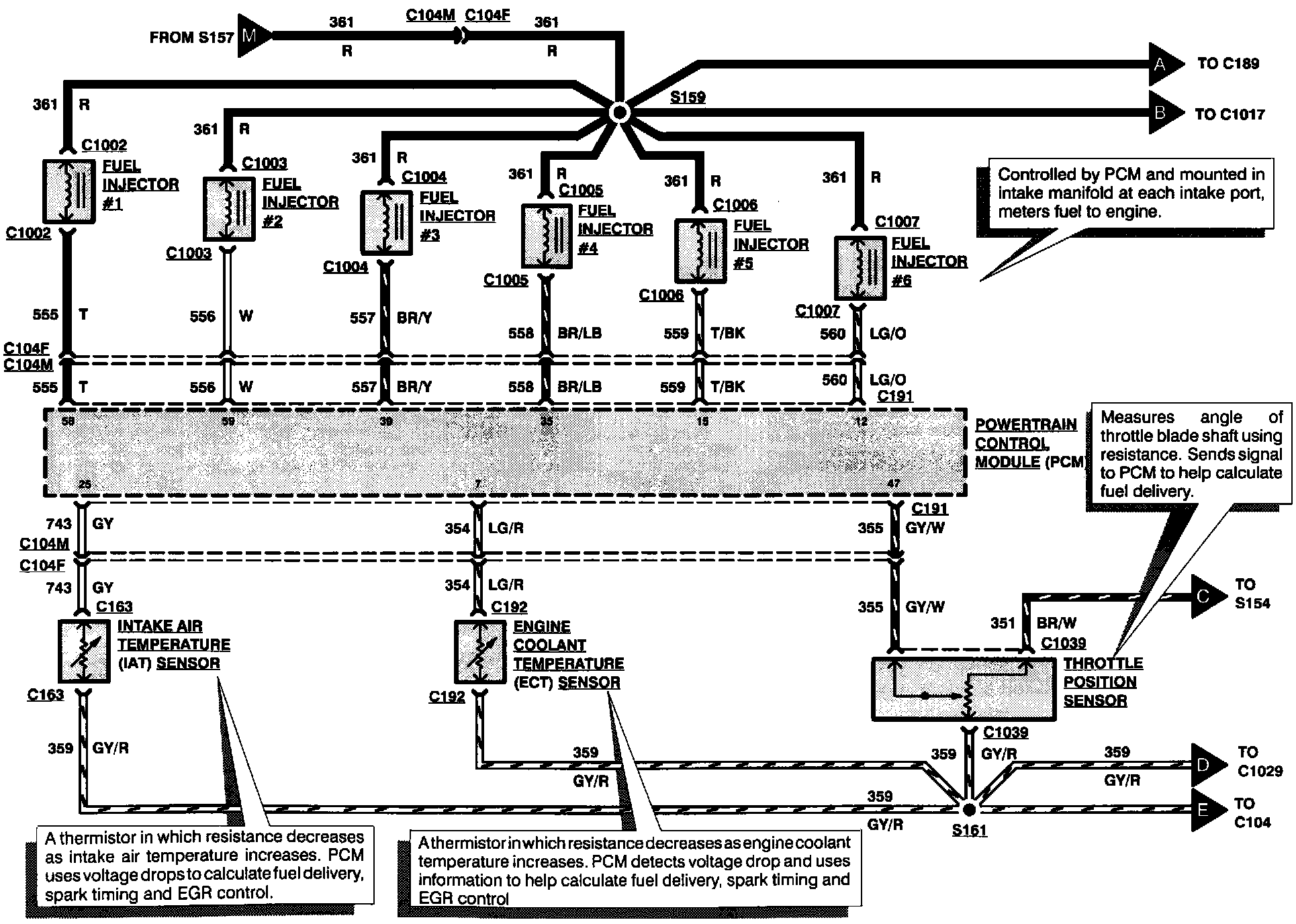

Engine Controls (Part 3 Of 7):

ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTORS
INTAKE AIR TEMPERATURE SENSOR
THROTTLE POSITION SENSOR

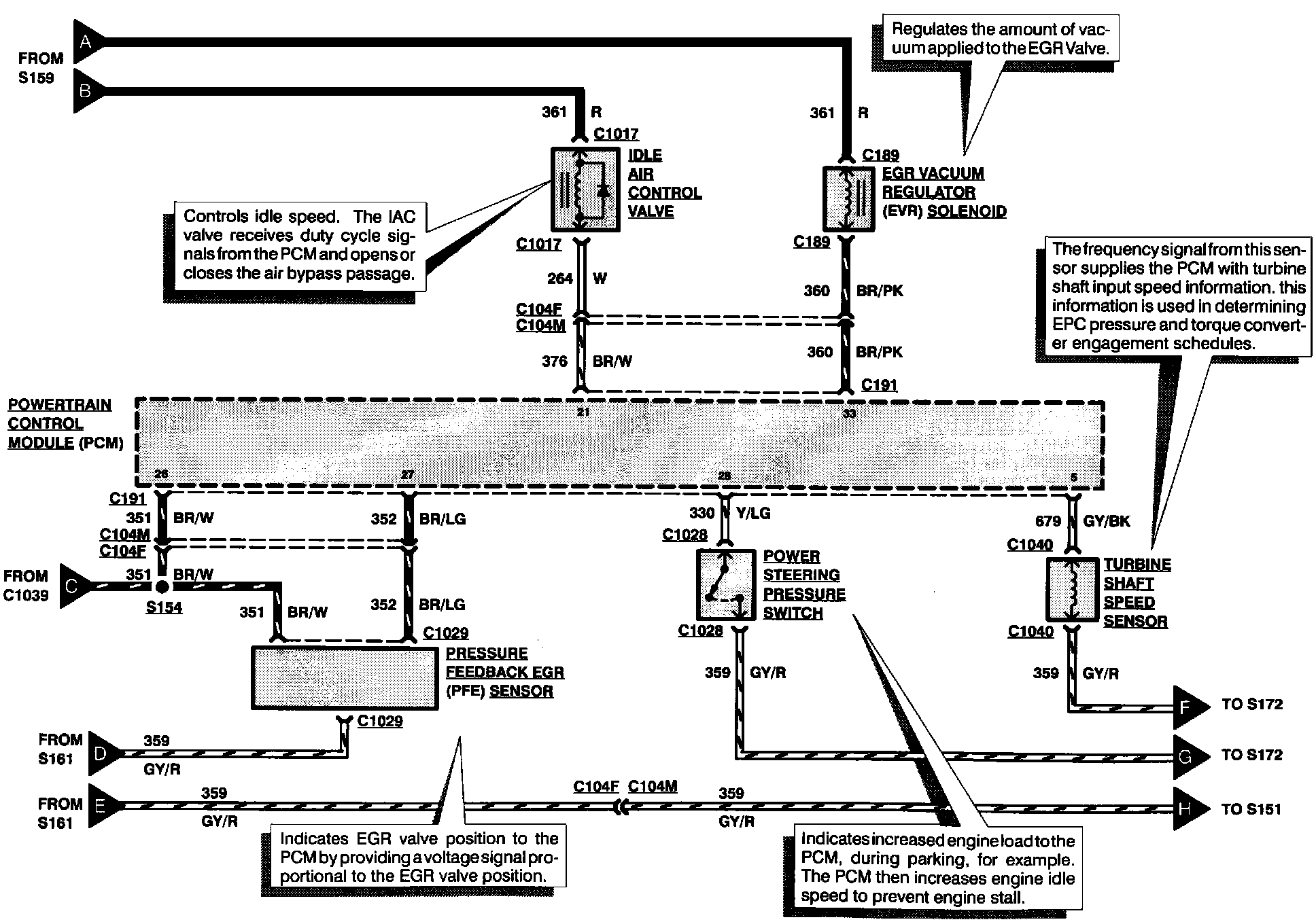

Engine Controls (Part 4 Of 7):

EGR VACUUM REGULATOR SOLENOID
IDLE AIR CONTROL VALVE
POWER STEERING PRESSURE SWITCH
PRESSURE FEEDBACK EGR SENSOR
TURBINE SHAFT SPEED SENSOR

Engine Controls (Part 5 Of 7):

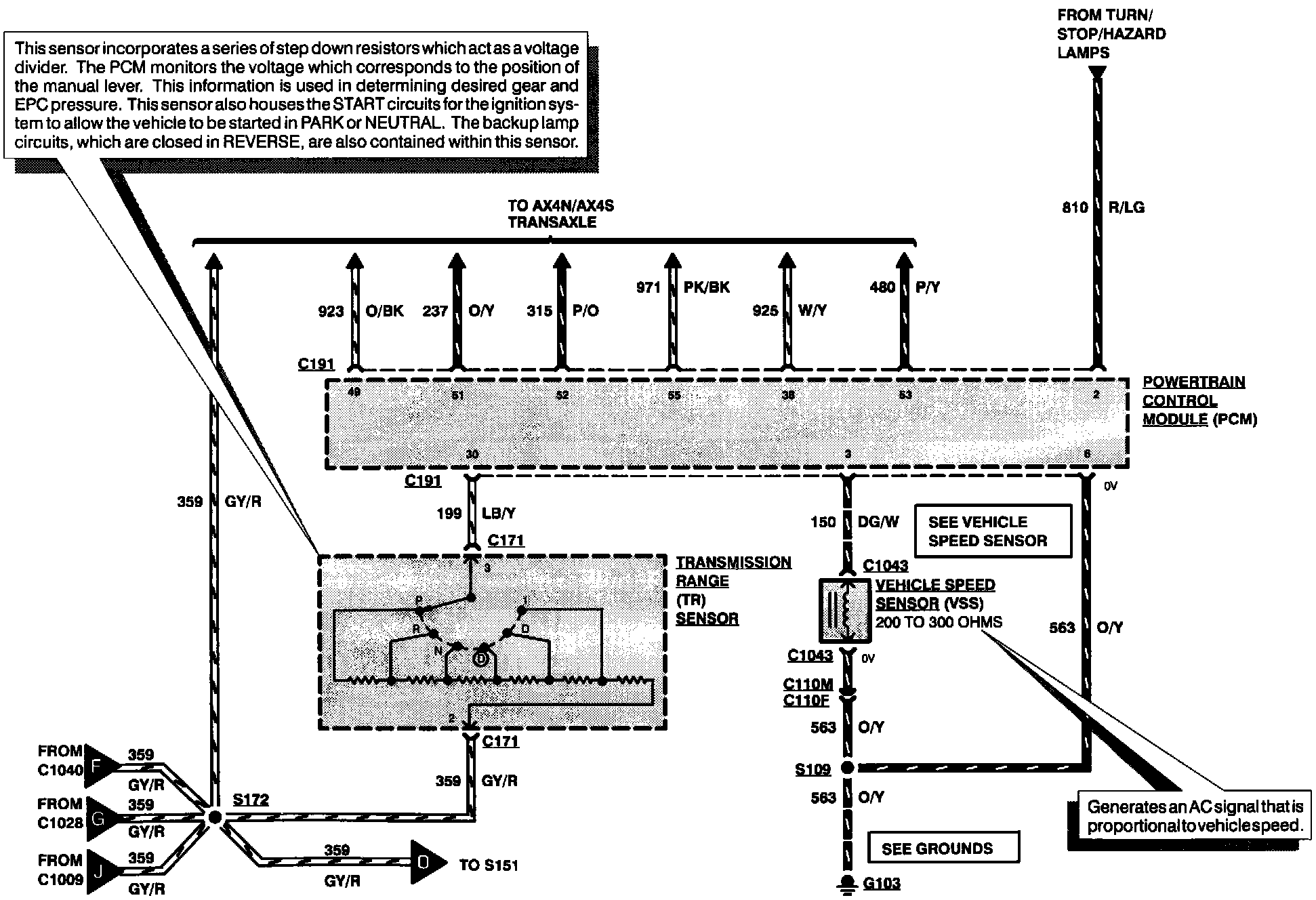

VEHICLE SPEED SENSOR

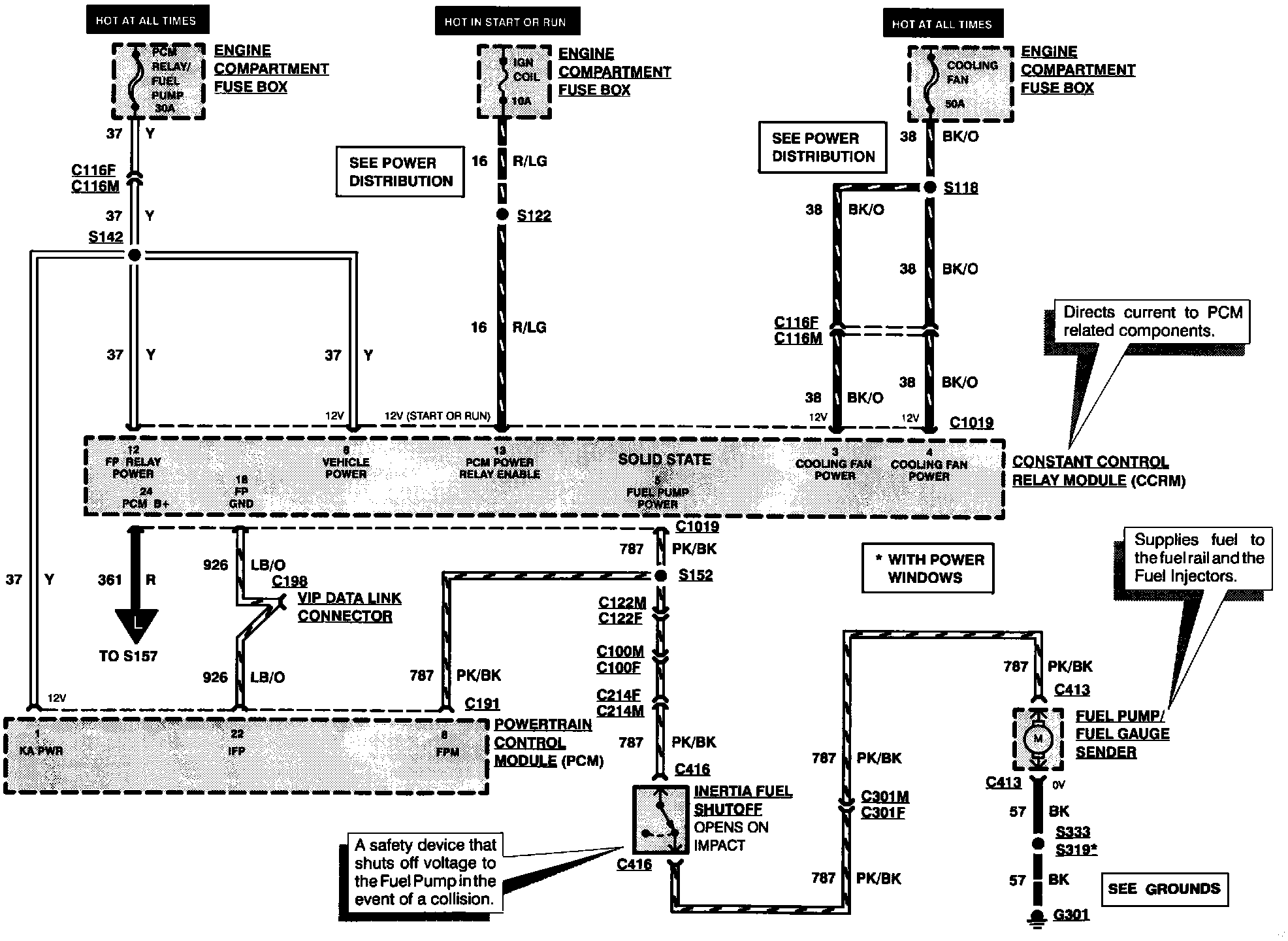

Engine Controls (Part 6 Of 7):

INERTIA FUEL SHUTOFF

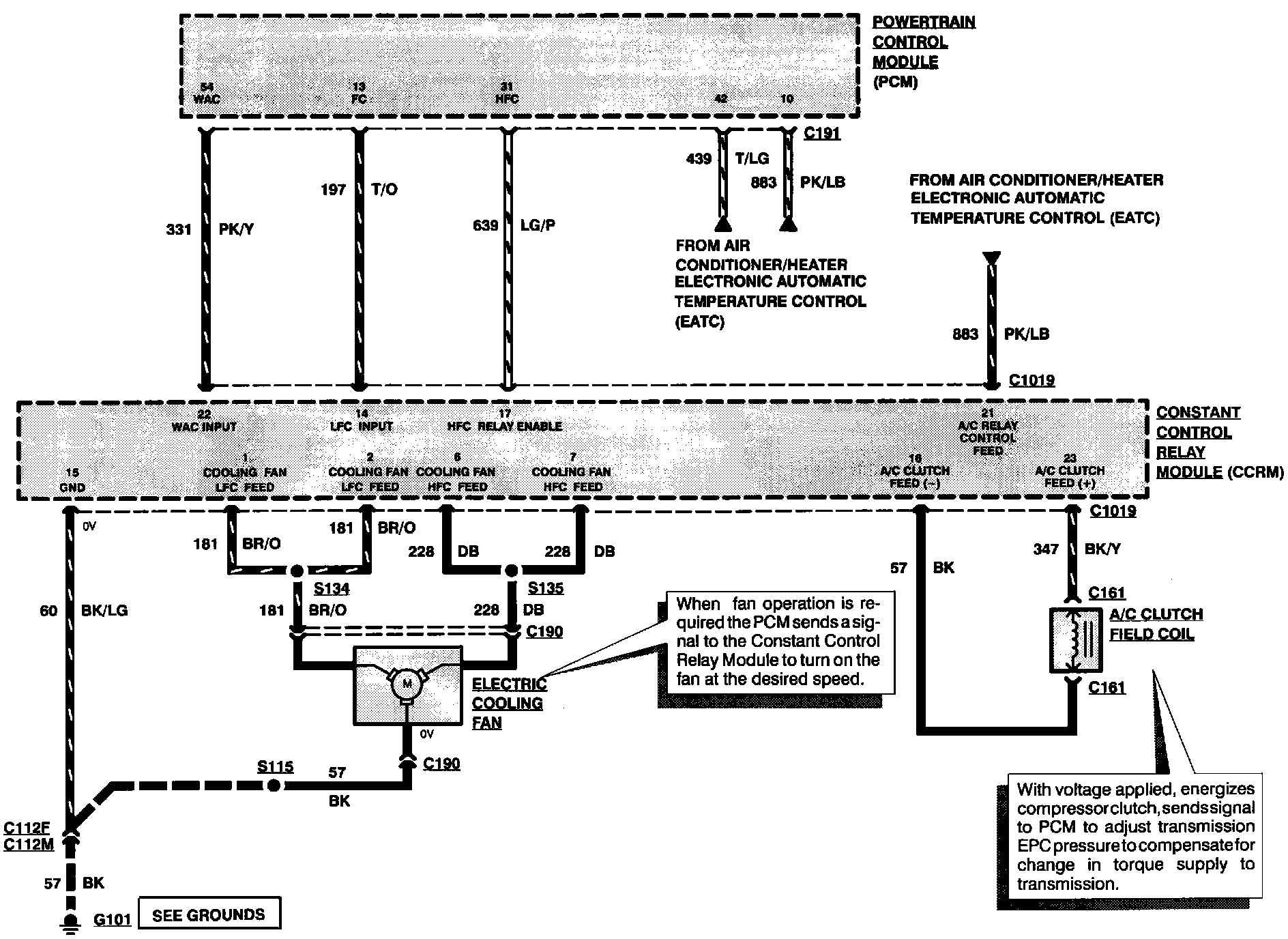

Engine Controls (Part 7 Of 7):

A/C CLUTCH FIELD COIL
ELECTRIC COOLING FAN
