With Power Window or Remote Keyless Entry

In Line Connector Faces - C210:

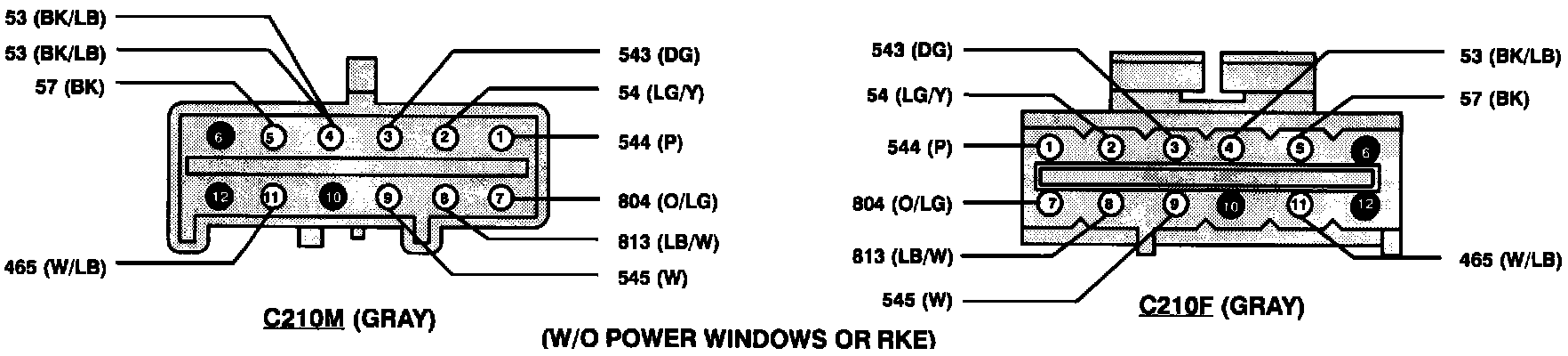

In Line Connector Faces - C210 (Without Power Windows Or Remote Keyless Entry):
