Panel Illumination Control Module: Locations

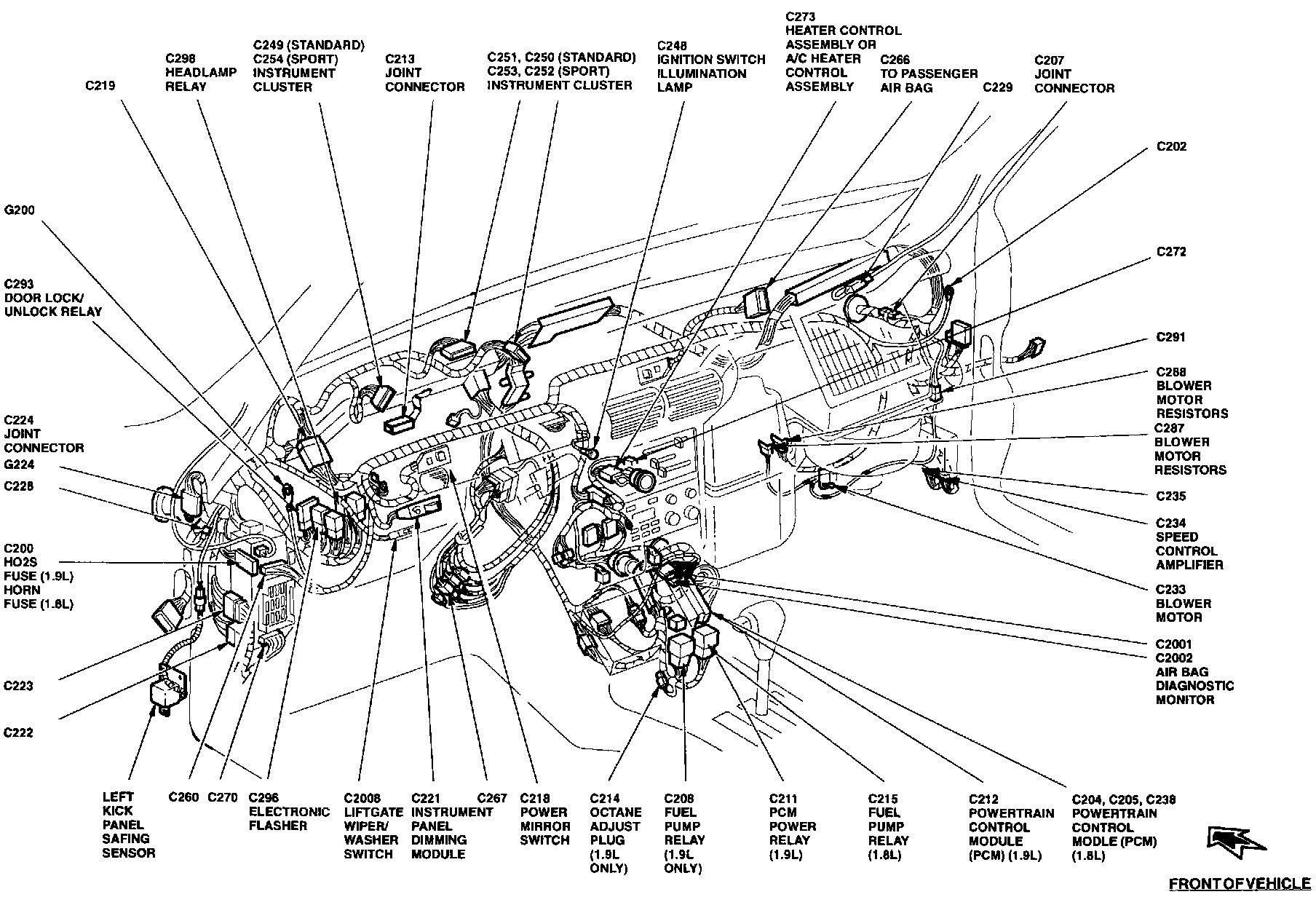

Instrument Panel View:





The Instrument Panel Dimming Module is located at the LH side of the instrument panel, left of steering column.
