Component Locations

COMPONENT LOCATIONS

Component

Location

Brake On/Off Switch

On Brake Pedal Support

Diode Junction Box

Behind Upper Left Side of Instrument Panel. See Fig 1 .

Ground G110

On Left Shock Tower. See Fig 6 .

Ground G200

Behind Left Side of Instrument Panel. See Fig 5 .

Ground G201

Behind Center Console. See Fig 7 .

Ground G203

Behind Right Side of Instrument Panel. See Fig 5 .

Horn Relay

In Left Hand Engine Compartment Relay Block

Inhibit Relay

In Left Hand Engine Compartment Relay Block. See Fig 2 .

Instrument Panel Fuse/Relay Panel

Behind Left Side of Instrument Panel. See Fig 7 .

Speed Control Hold Relay

In Left Hand Engine Compartment Relay Block. See Fig 3 .

Speed Control Module

Behind Center Console. See Fig 4 .

Speed Control Actuator (Servo)

On Top of Engine. See .

Transaxle Control Module

Behind Glove Box. See Fig 5 .

Transmission Range Switch ⁽¹⁾

On Front of Transaxle

Vehicle Speed Sensor

On Rear of Transaxle

⁽¹⁾	Transmission range switch is part of the transmision range sensor assembly.

Fig 1: Locating Diode Junction Box

Courtesy of FORD MOTOR CO.

Fig 2: Locating Inhibit Relay

Courtesy of FORD MOTOR CO.

Fig 3: Locating Speed Control Components in Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 4: Locating Speed Control Components in Passenger Compartment

Courtesy of FORD MOTOR CO.

Fig 5: Locating Ground G200 & G203; Transaxle Control Module

Courtesy of FORD MOTOR CO.

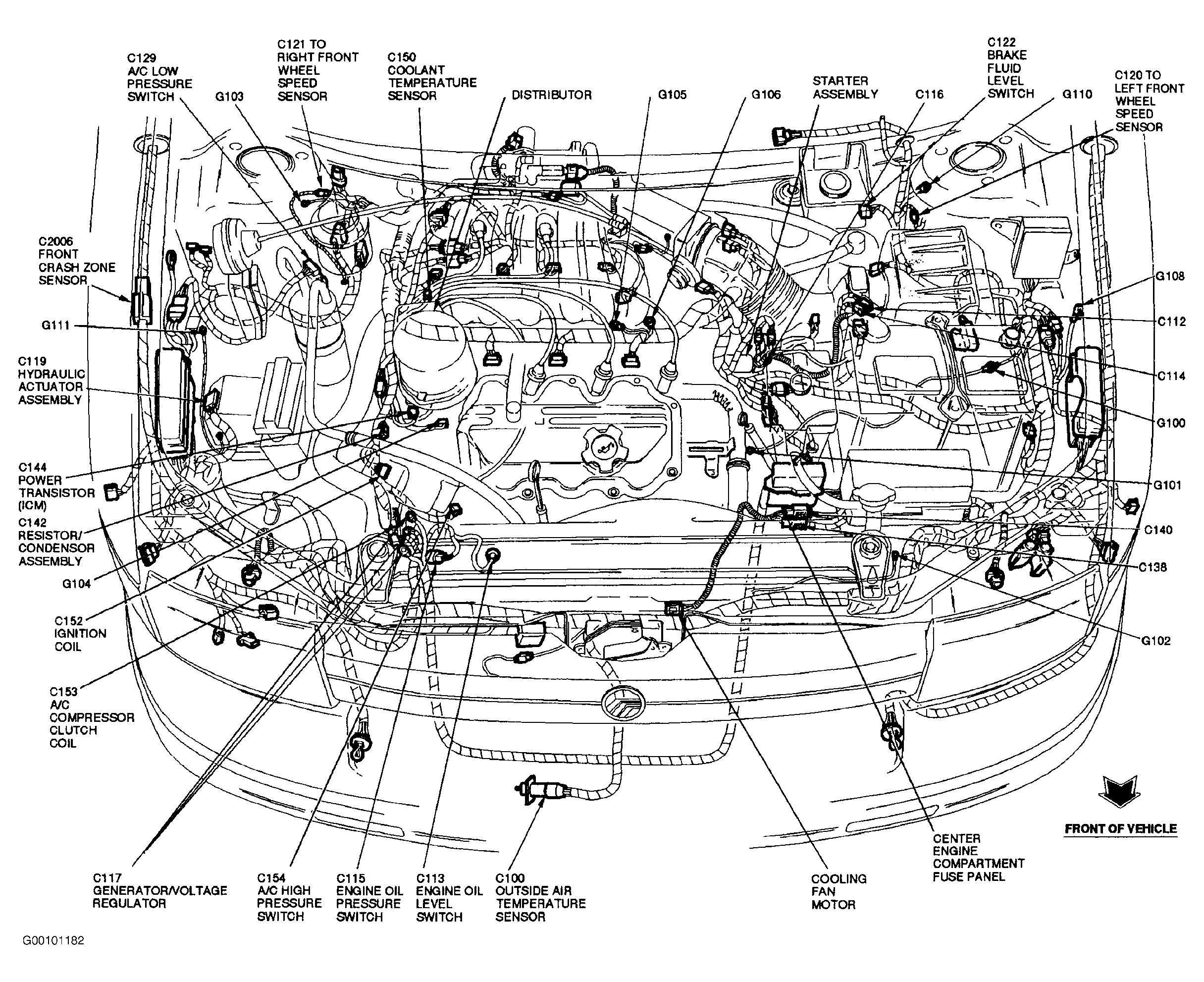

Fig 6: Locating Ground G110

Courtesy of FORD MOTOR CO.

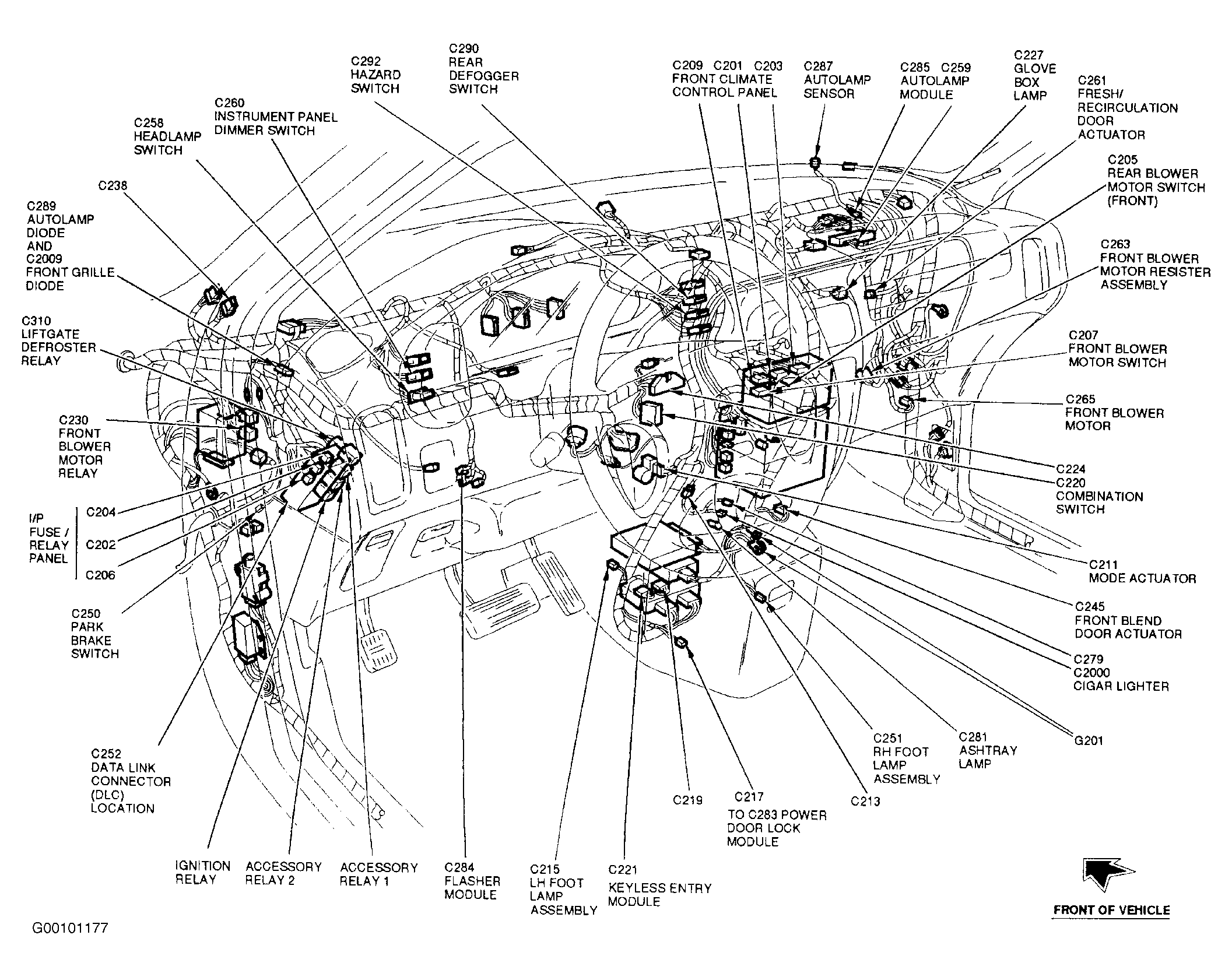

Fig 7: Locating Ground G201 & Instrument Panel Relay Panel

Courtesy of FORD MOTOR CO.
