Seat Regulator Control
- Remove the right hand seat regulator control switch.

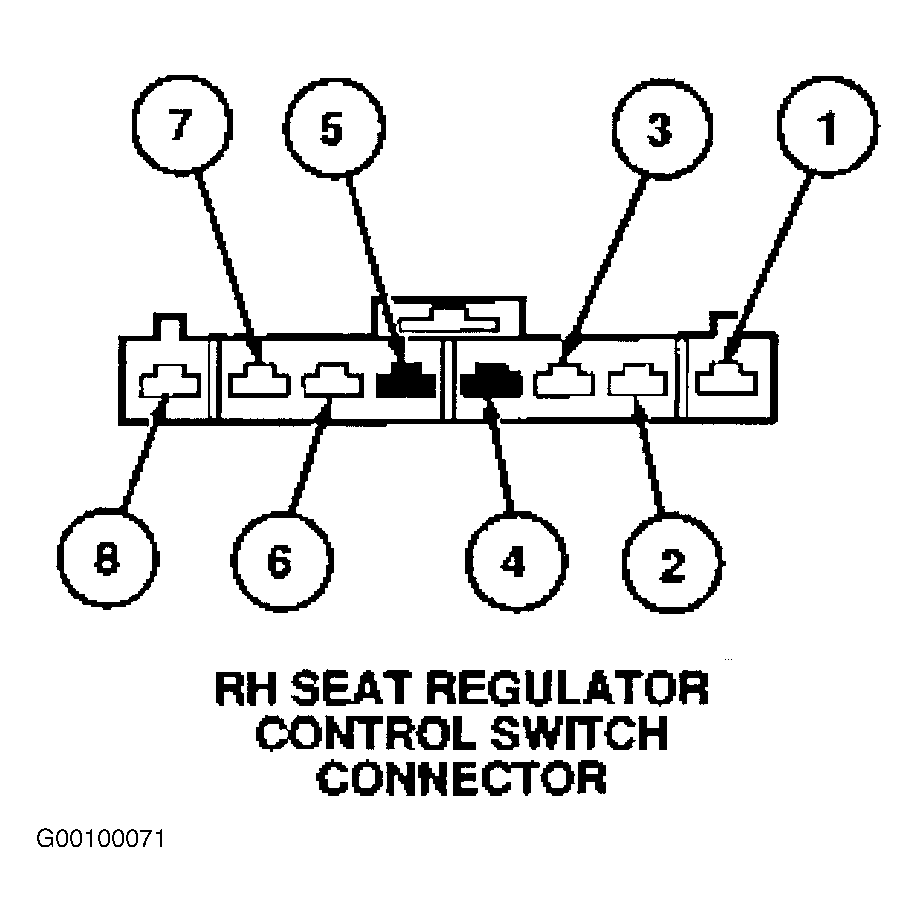

- Measure the resistance between the terminals on the right hand seat regulator control switch as indicated. See SEAT REGULATOR CONTROL TEST . See Fig 1 .
- If the resistances are not specified, replace the right hand seat regulator control switch. Otherwise, return to the SYMPTOM INDEX .
SEAT REGULATOR CONTROL TEST
| Switch | Position | Wire Terminal | Resistance (Ohms) |
|---|---|---|---|
| Sliding | Forward | 3-1, 6-2 | Less Than 5 |
| Sliding | Neutral | 6-1, 6-2 | Less Than 5 |
| Sliding | Reverse | 3-2, 6-1 | Less Than 5 |
| Reclining | Up | 7-3, 8-6 | Less Than 5 |
| Reclining | Neutral | 7-6, 8-6 | Less Than 5 |
| Reclining | Down | 8-3, 7-6 | Less Than 5 |
