Power Window Relay: Locations

Instrument Panel View:

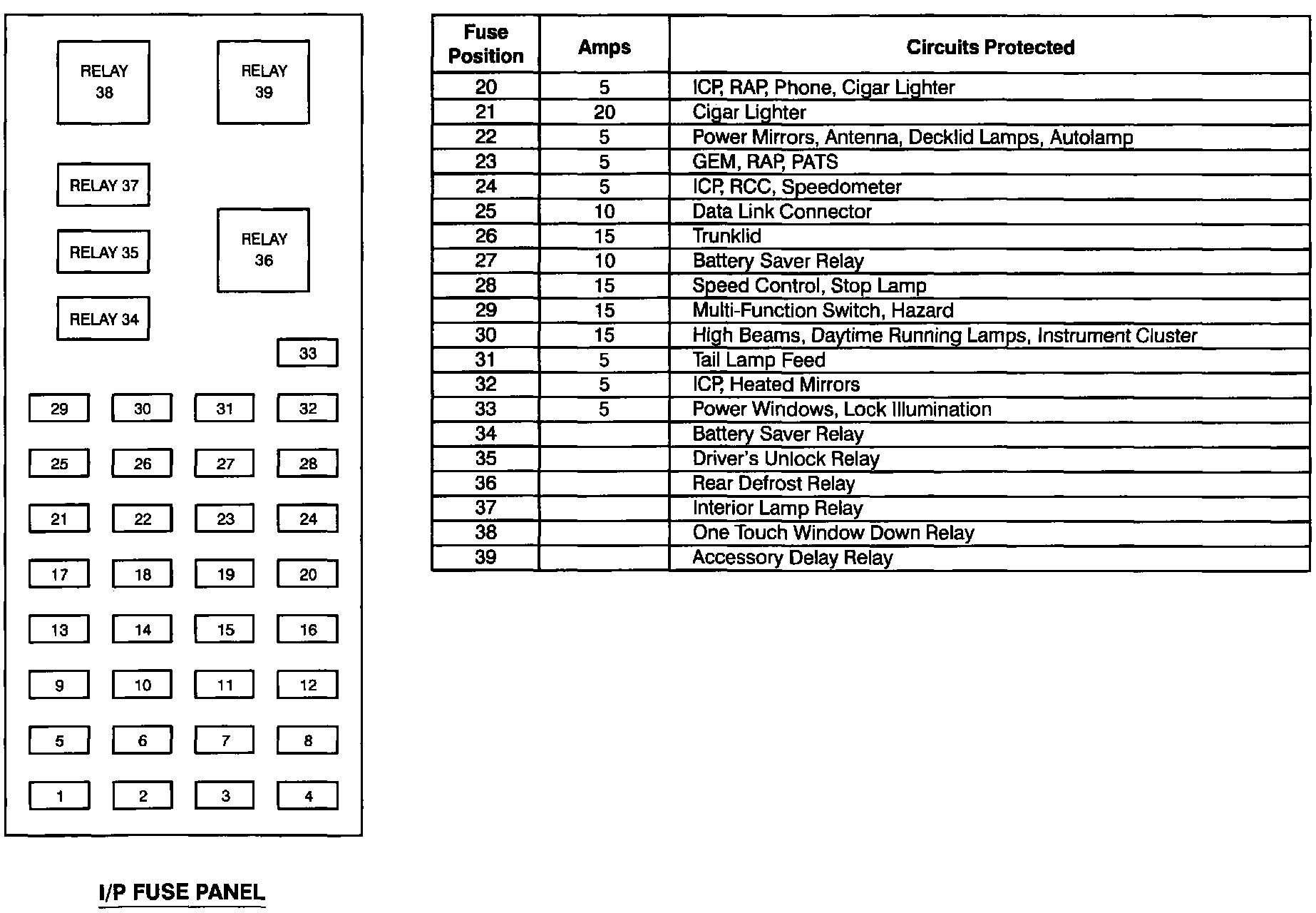

Instrument Panel Fuse Panel (part 2 Of 2):





The One Touch Window Down Relay is located in the instrument panel fuse panel.
