Home
>>
Mercury
>>
1997
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
System Diagram
>>
Rear
>>
Sedan
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Sedan

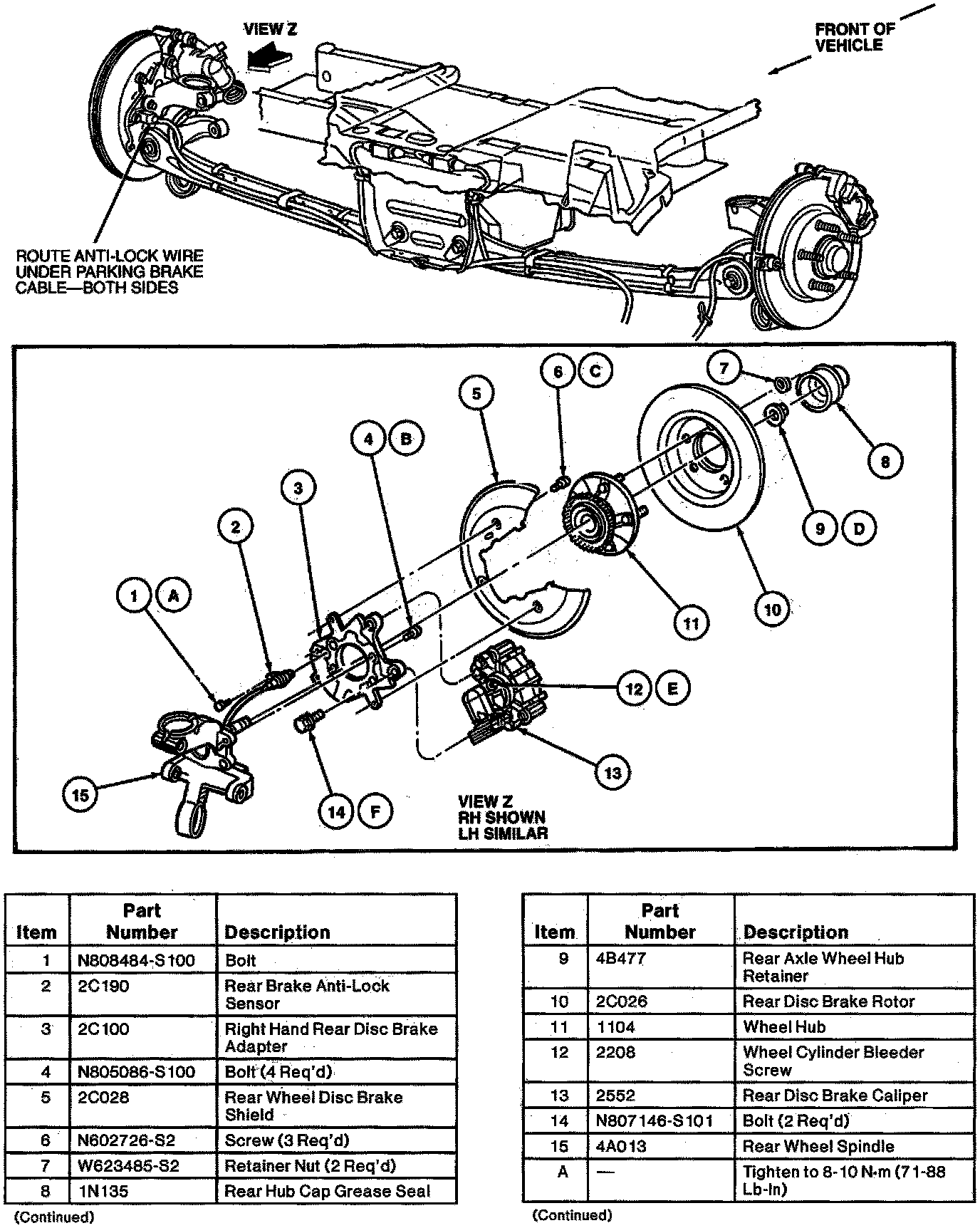

Rear Disc Brakes, Sedan (Part 1 OF 2):
Rear Disc Brakes, Sedan (Part 2 Of 2):
