Diagnostic Monitor Test Results

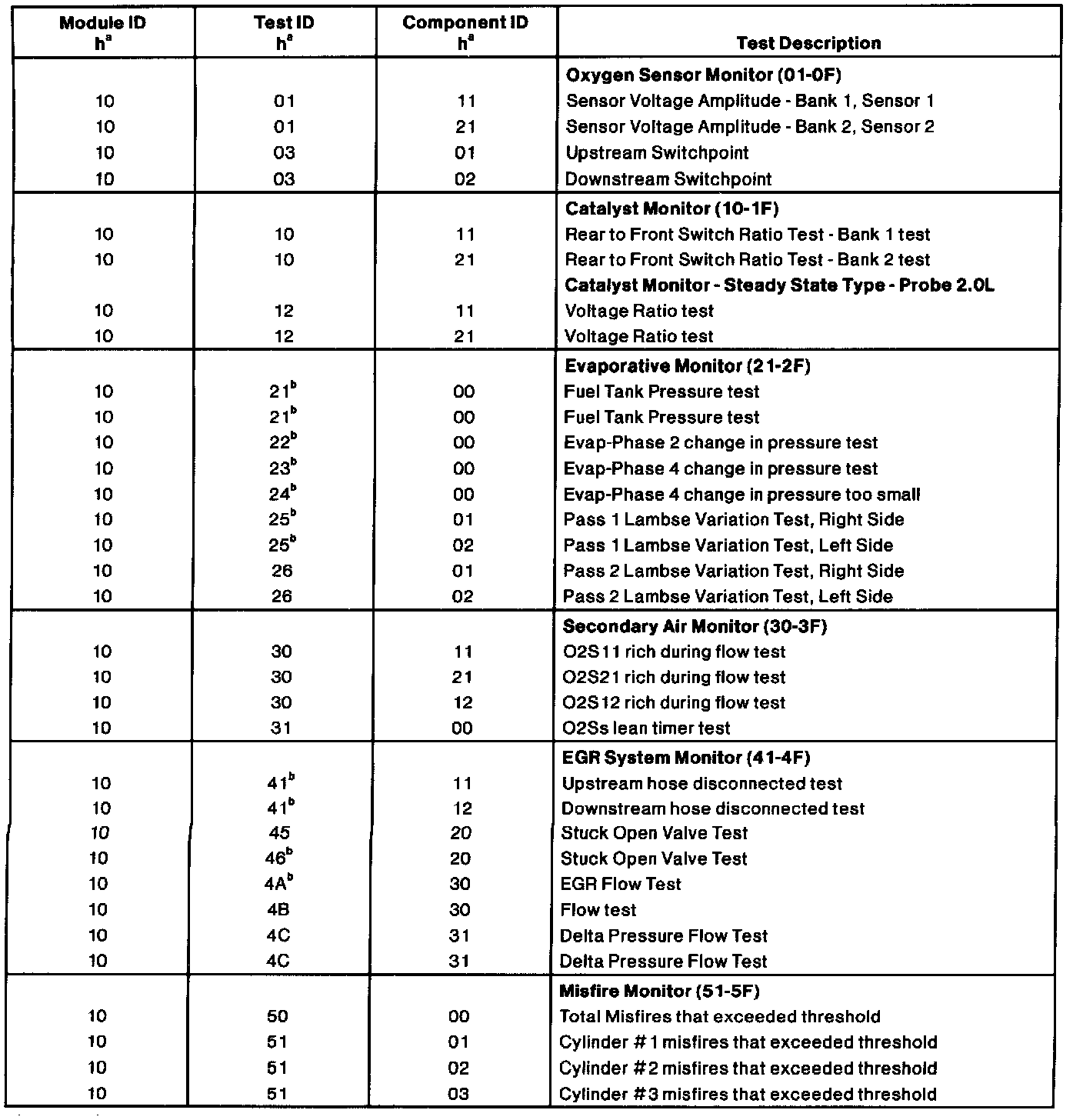

Diagnostic Monitoring Test Results Table - Part 1 Of 2:

Diagnostic Monitoring Test Results Table - Part 2 Of 2:

The purpose of this Test (Mode 06) is to allow access to the results of OBD II monitor diagnostic test results. The test values that are stored at the time of the particular monitor completion are displayed when the particular test identification is requested. Refer to the table for test information.





The conversion is done as follows:

If the value is greater than 32767 then compliment (change 0's to 1's and 1's to 0's), add 1 and a negative sign.
