Mercury
>>
1997
>>
Tracer L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Control Module HVAC
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Control Module HVAC

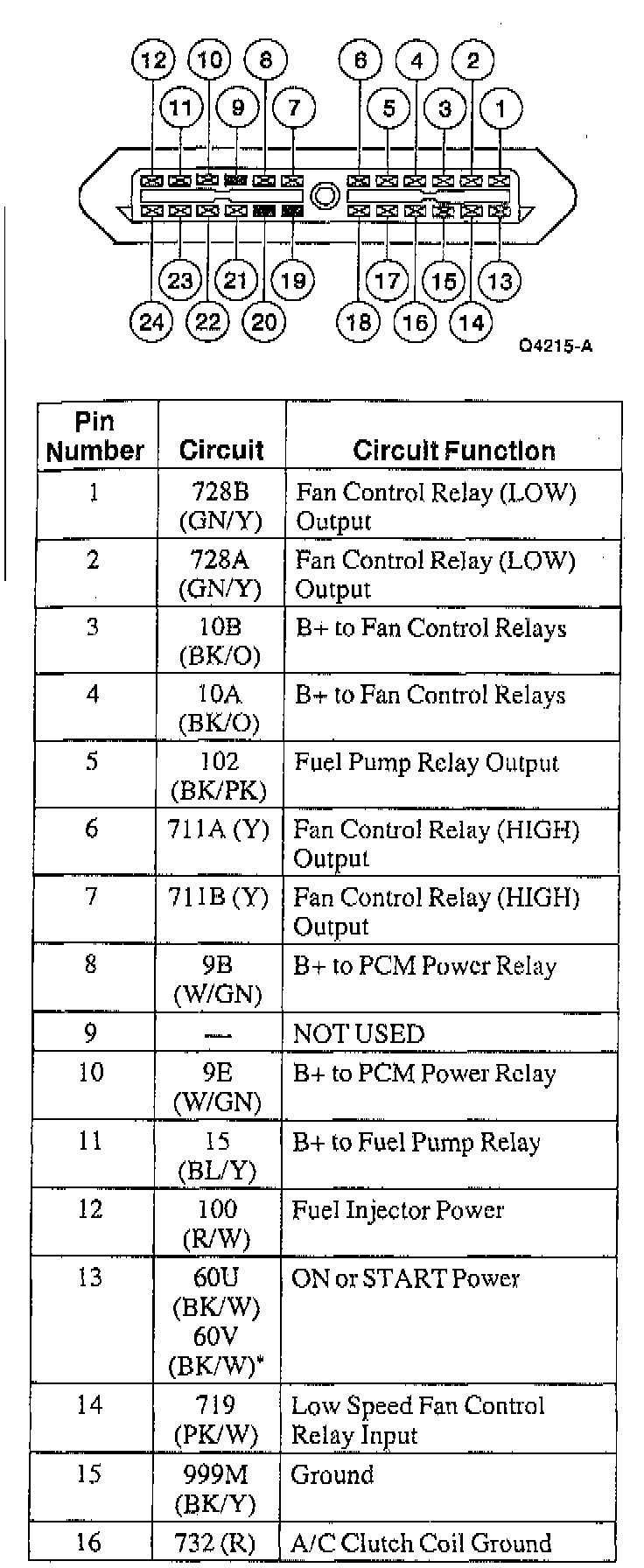

Constant Control Relay Module, Part 1 Of 2:
Constant Control Relay Module, Part 2 Of 2:
