Cylinder Head Assembly

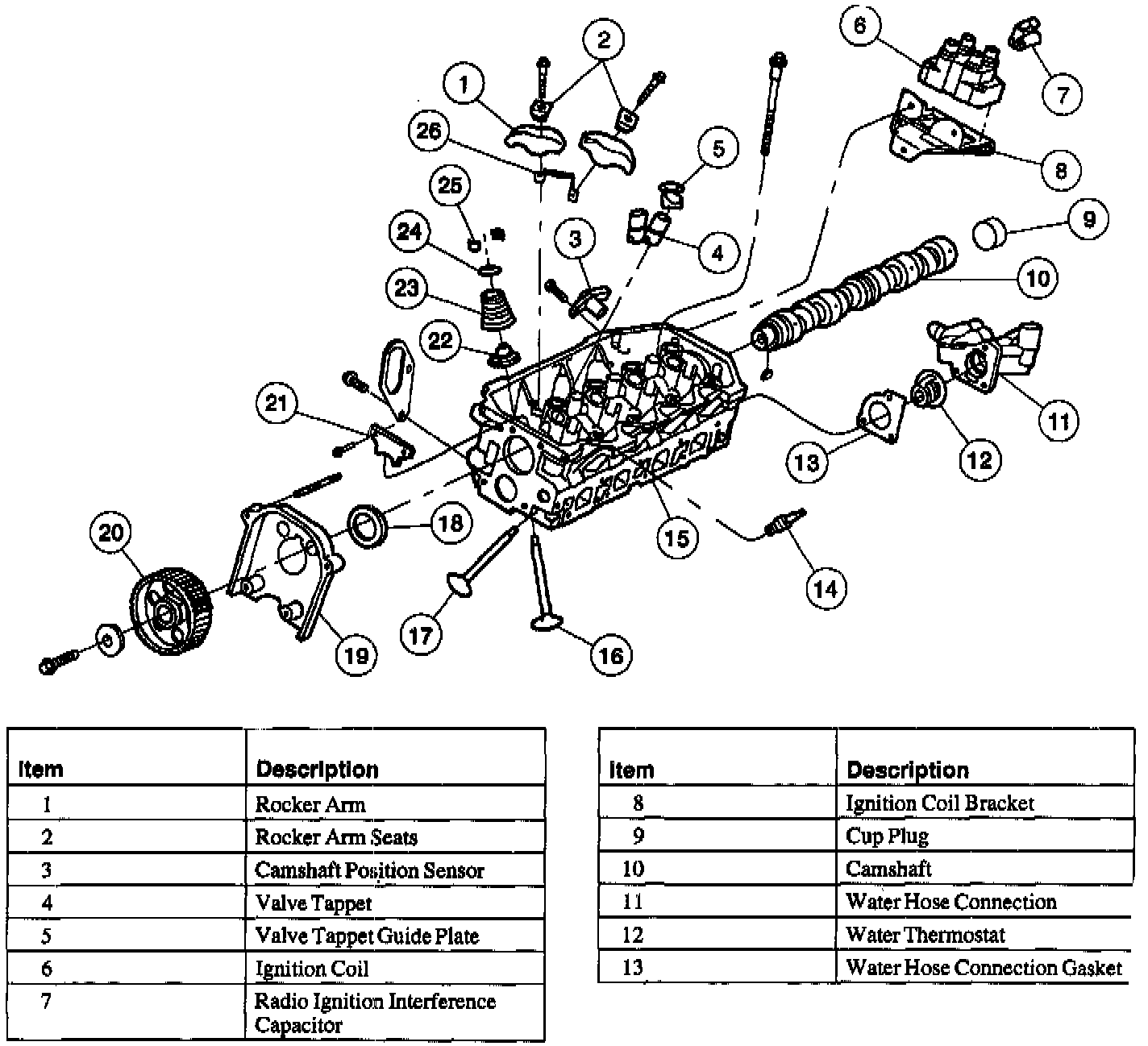

Cylinder Head Components, Part 1 Of 2:



Cylinder Head Components, Part 2 Of 2:
