System Diagram

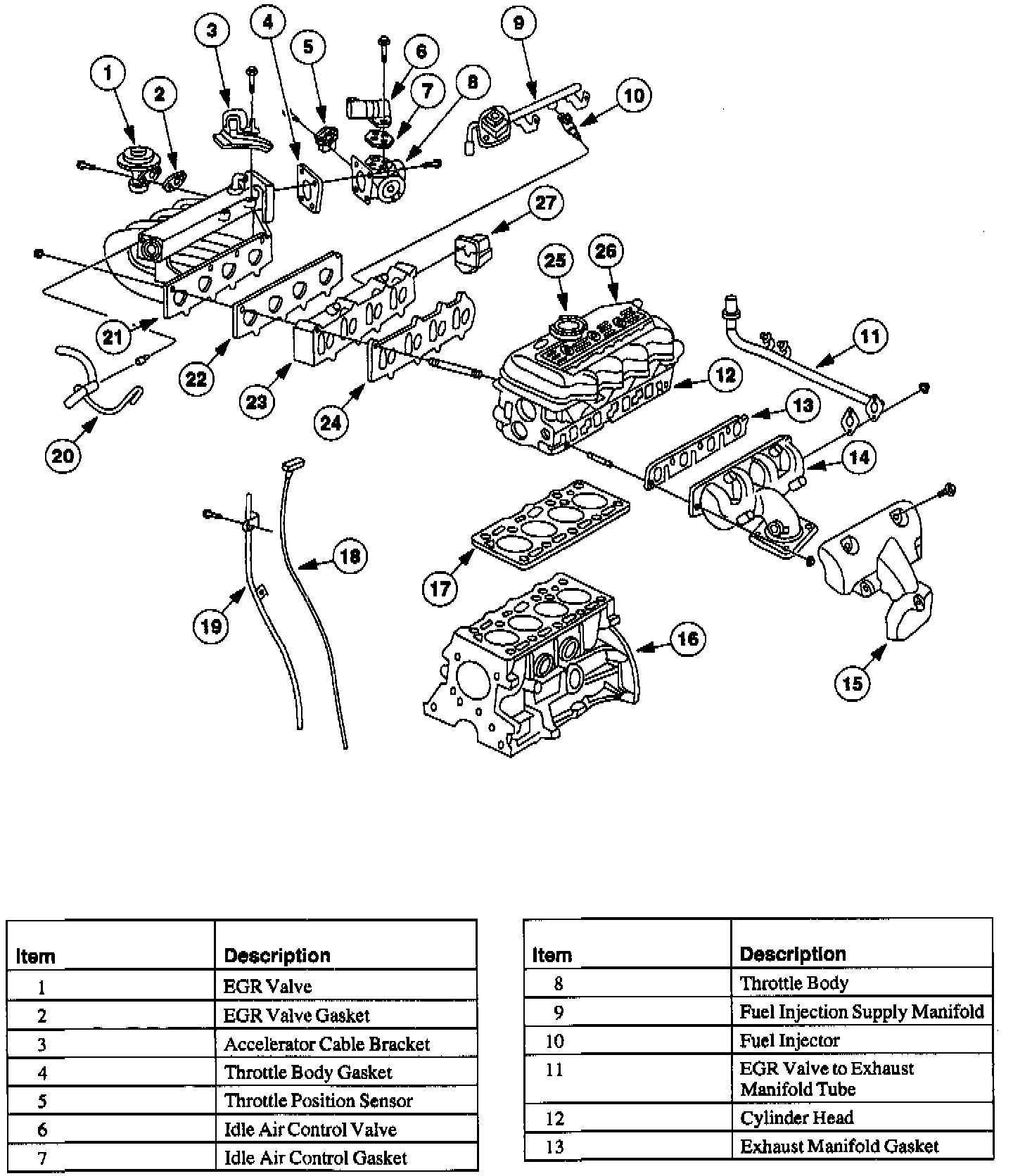

Upper Engine Components, Part 1 Of 2:

Upper Engine Components, Part 2 Of 2:

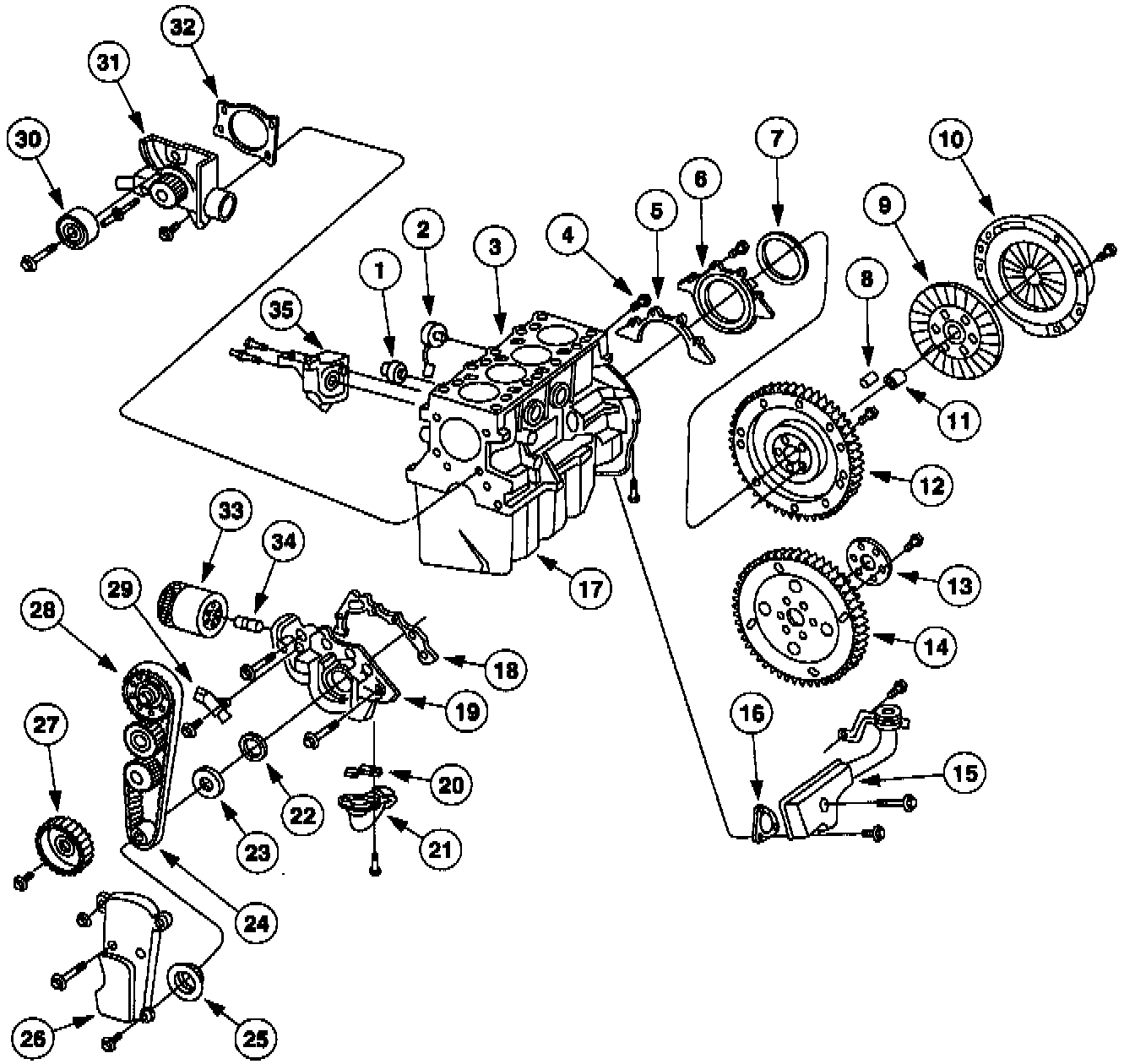

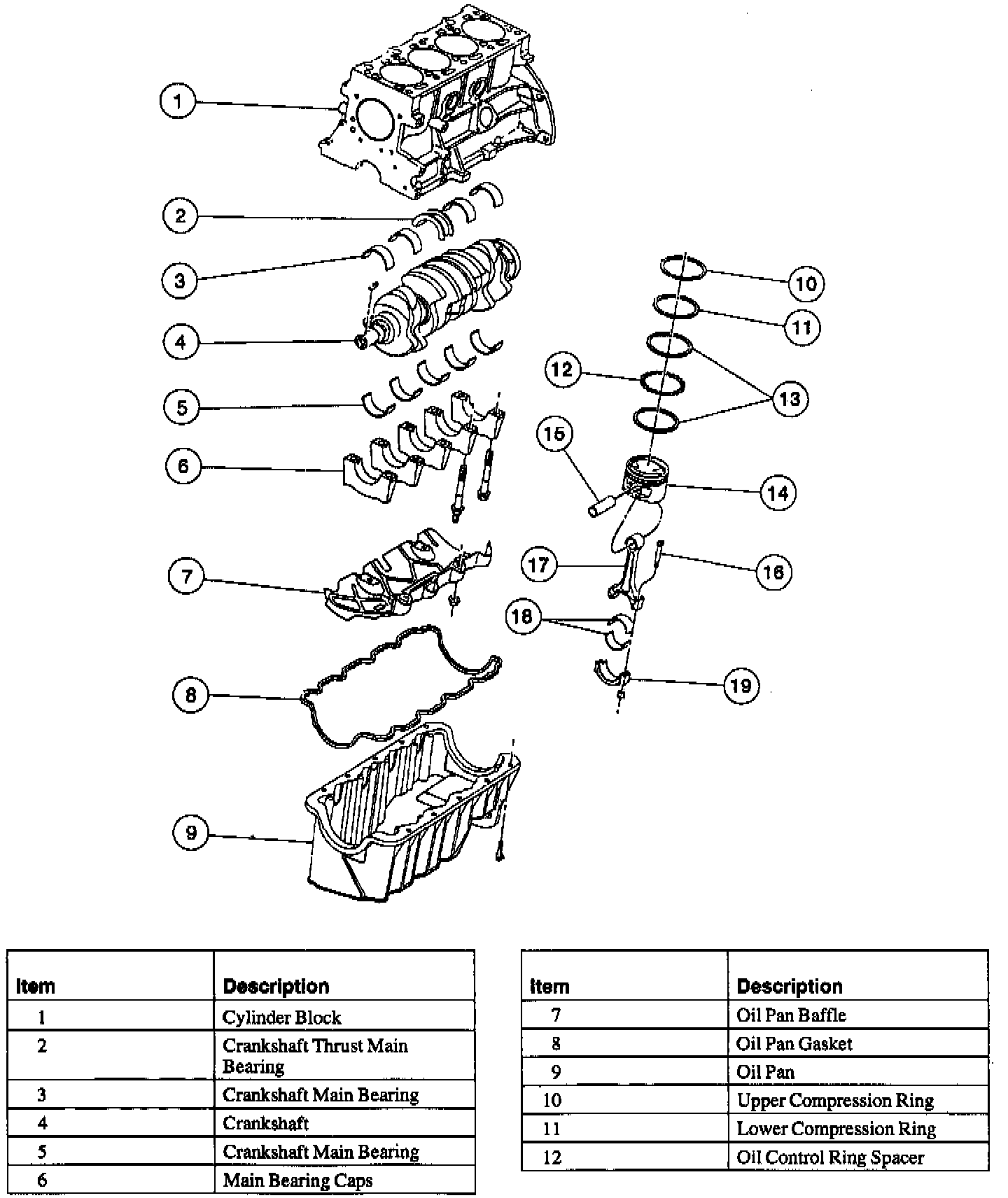

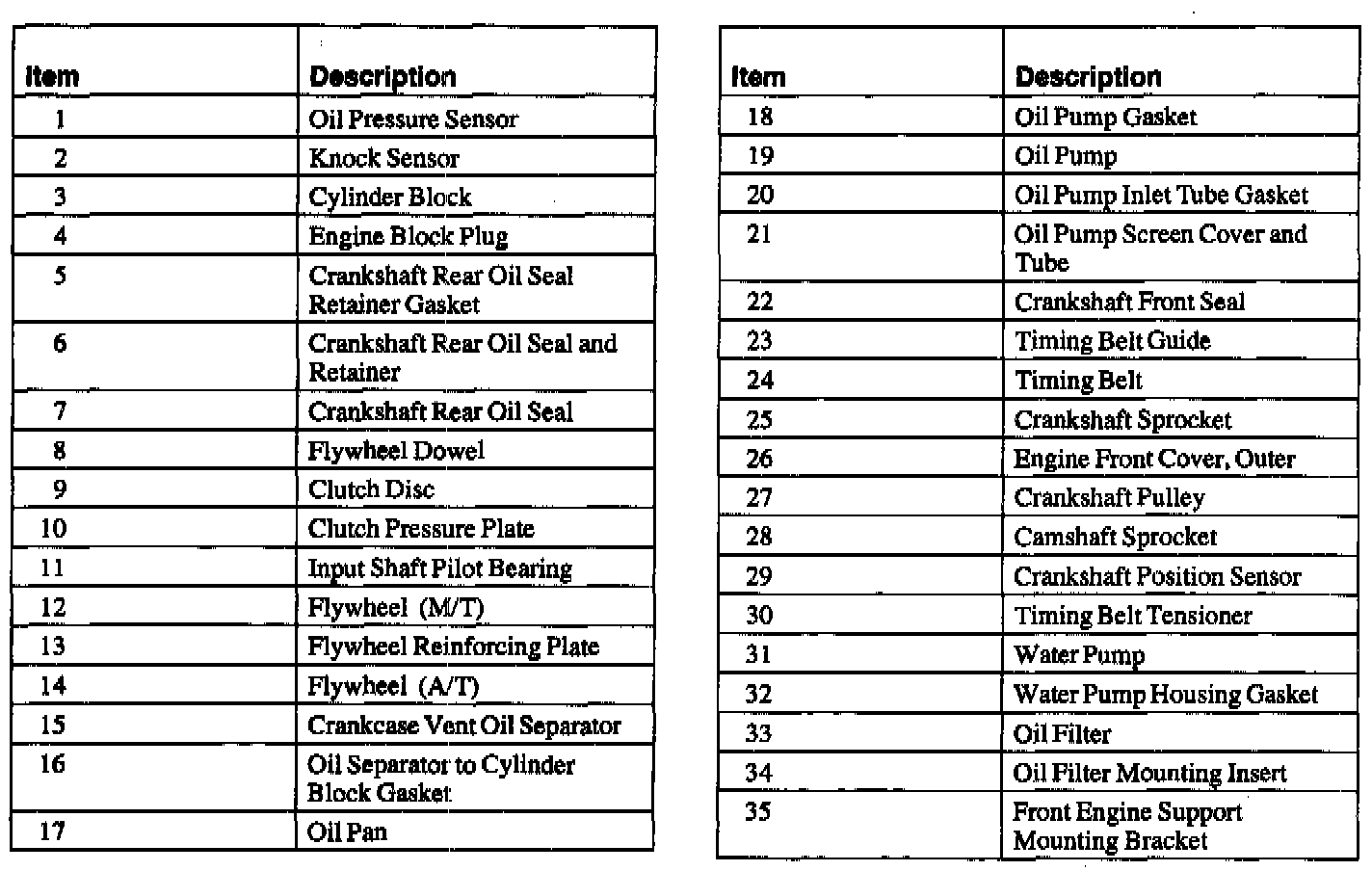

Lower Engine Components, Part 1 Of 4:

Lower Engine Components, Part 2 Of 4:

Lower Engine Components, Part 3 Of 4:

Lower Engine Components, Part 4 Of 4:
