A/T Technical Data

F4E III 4-spd A/T, Clearances (Escort/Tracer):

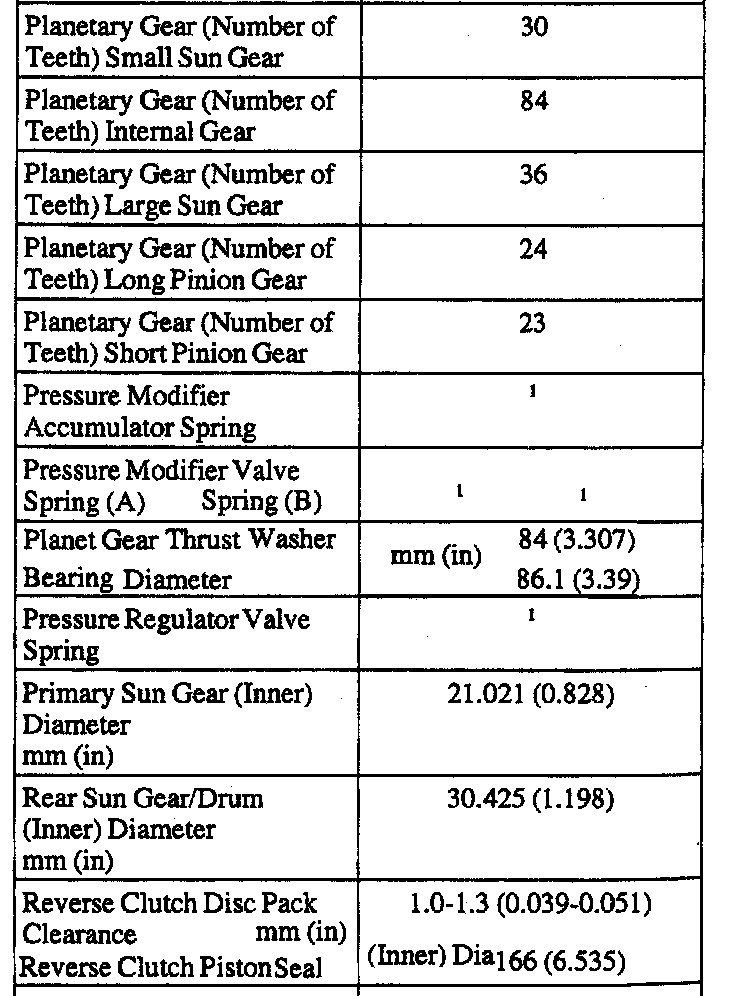

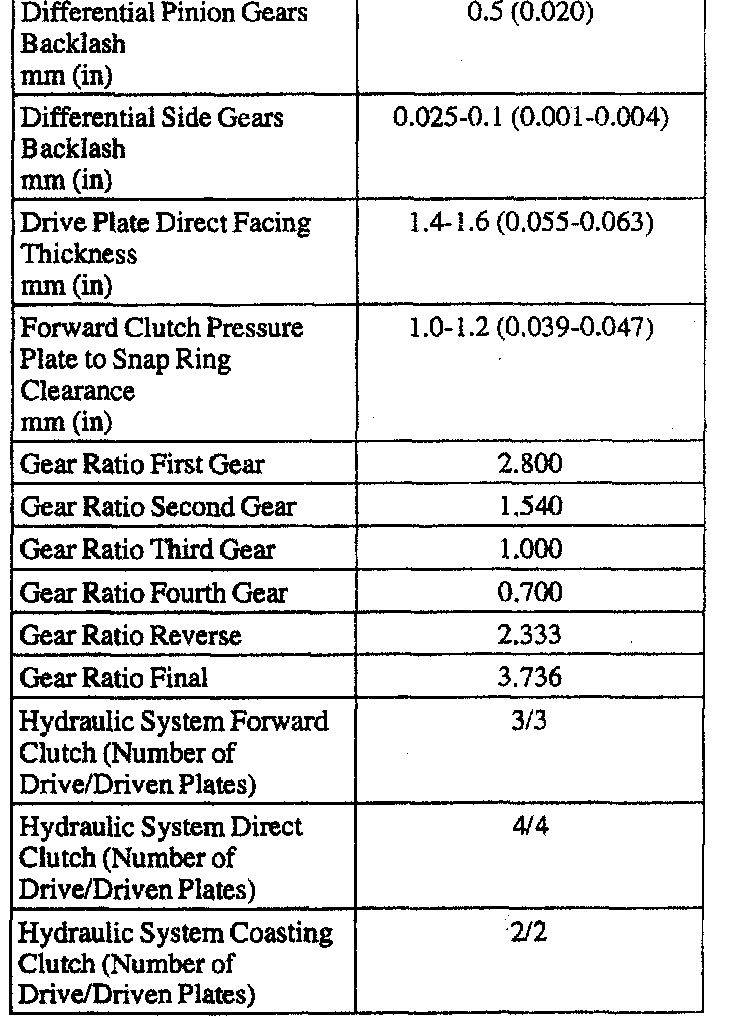

F4E III 4-spd A/T, Gear Clearances/Ratios (Escort/Tracer):

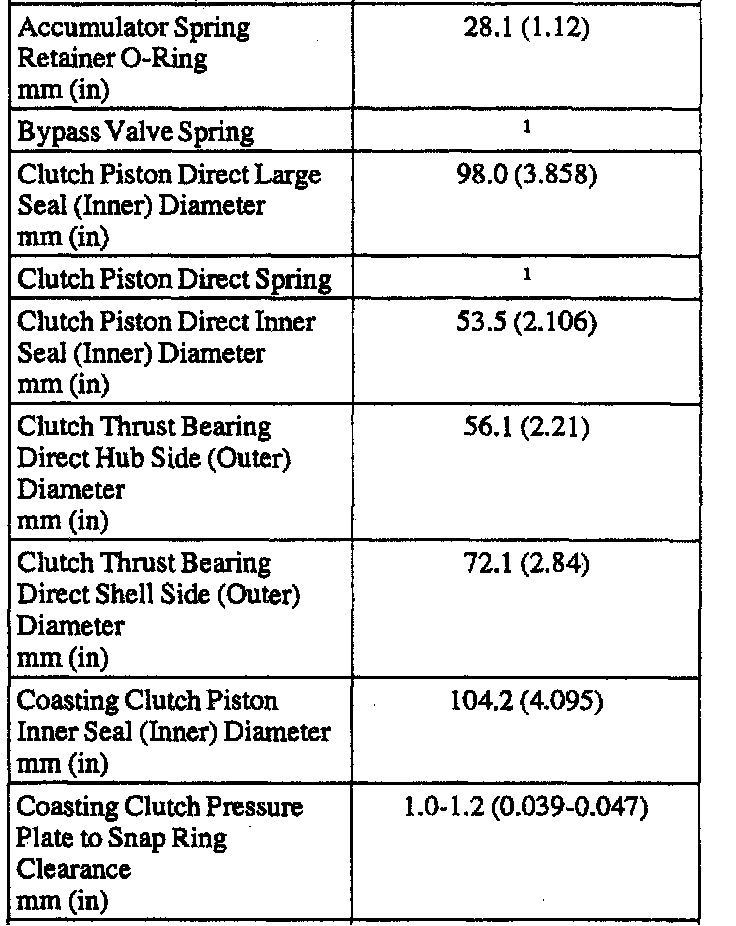

F4E III 4-spd A/T, Drive/Clutch Clearances (Escort/Tracer):

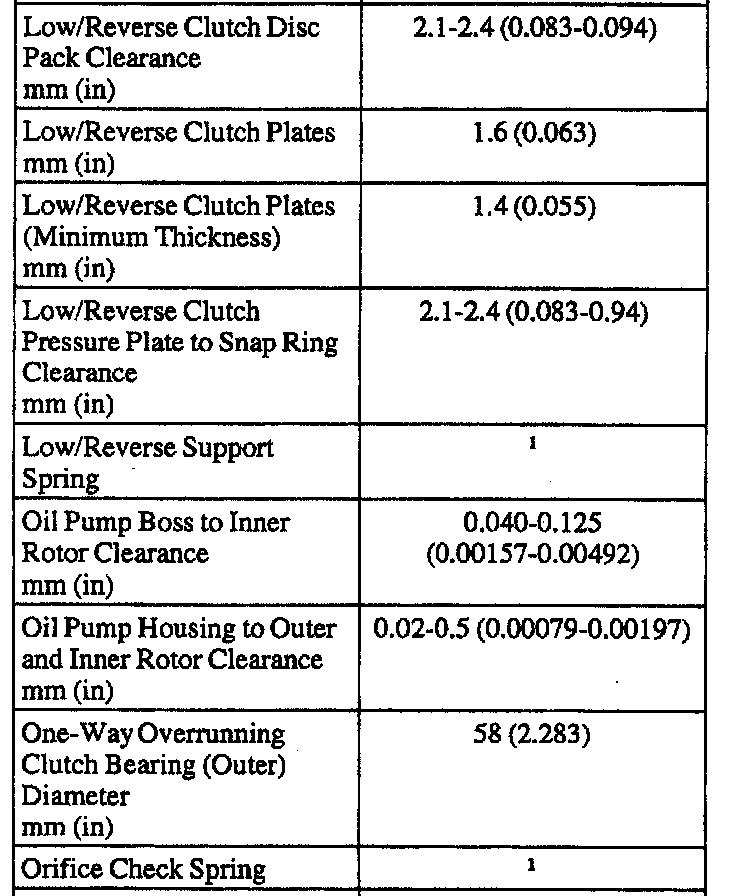

F4E III 4-spd A/T, Internal Tolerances (Escort/Tracer):

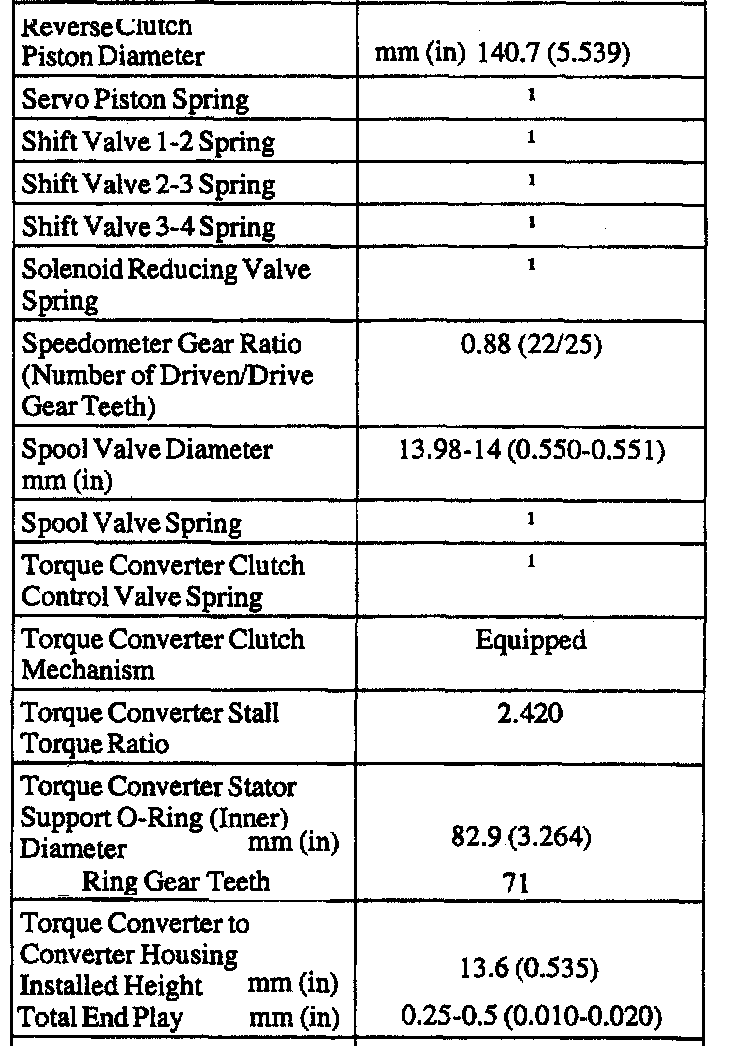

F4E III 4-spd A/T, Tolerances/Clearances (Escort/Tracer):

F4E III 4-spd A/T, Conversion Meters To Inches Cont.:

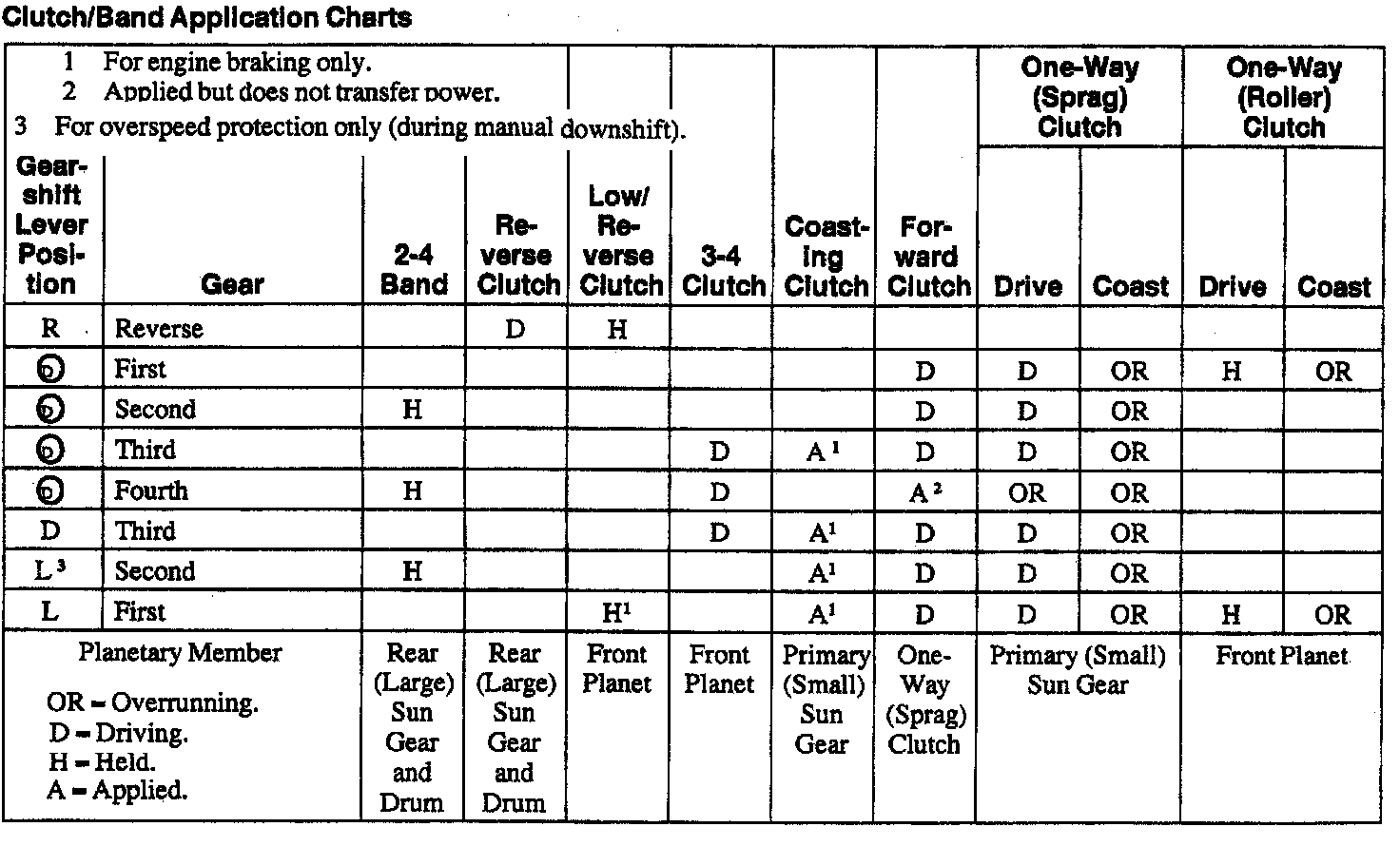

F4E III 4-spd A/T, Clutch/Band Application (Escort/Tracer):
