Electrical Diagrams

Diagram 29-1:







Brake Pedal Position Switch
Fuse 12
Fuse 28
Fuse Junction Panel
Powertrain Control Module
PRNDL Transmission Control Illumination
Transmission Control Indicator Lamp
Transmission Control Switch

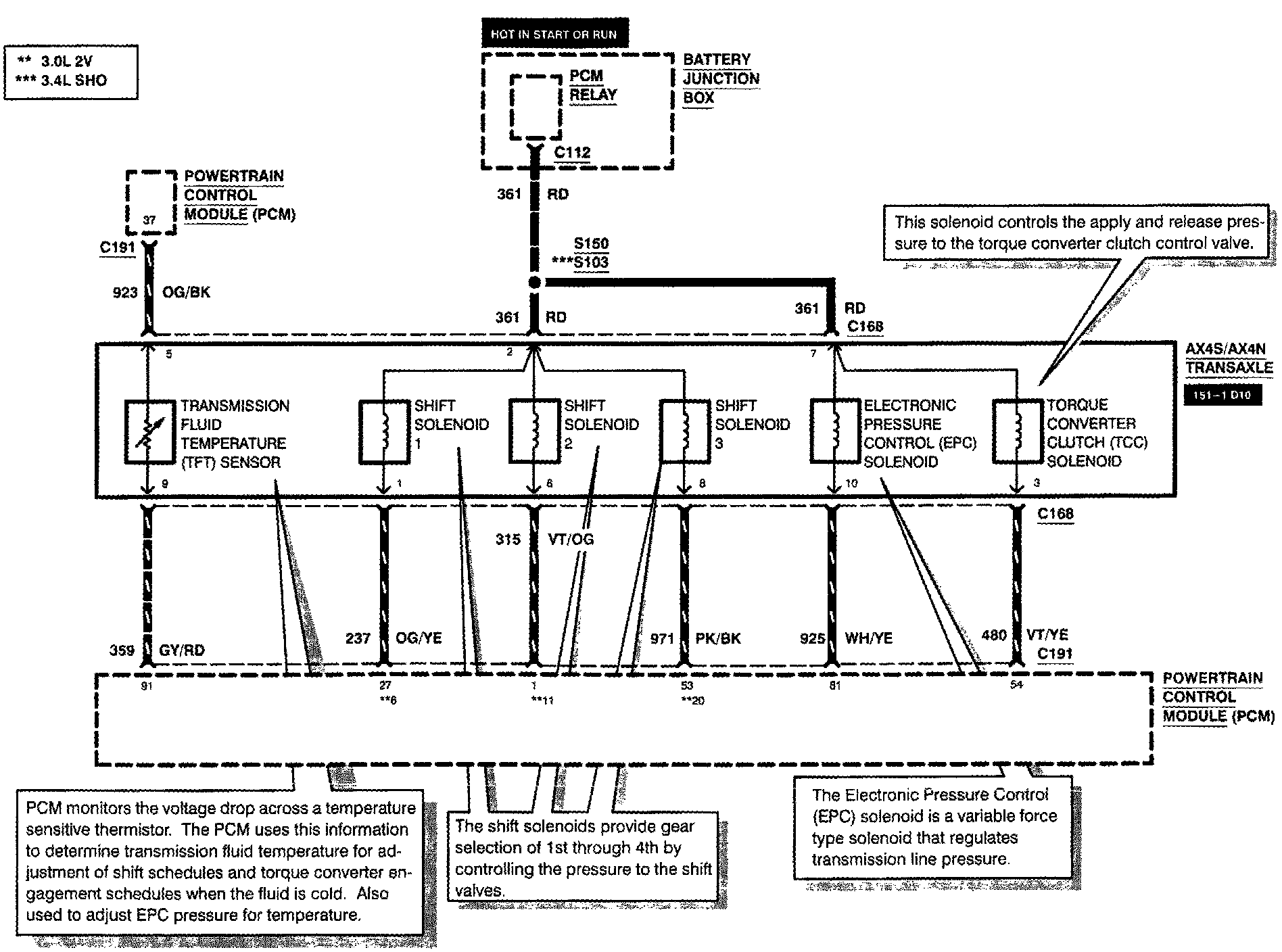

Diagram 29-2:







AX4S/AX4N Transaxle
Battery Junction Box
Electronic Pressure Control Solenoid
Powertrain Control Module
Powertrain Control Module Relay
Shift Solenoid
Torque Converter Clutch Solenoid
Transmission Fluid Temperature Sensor

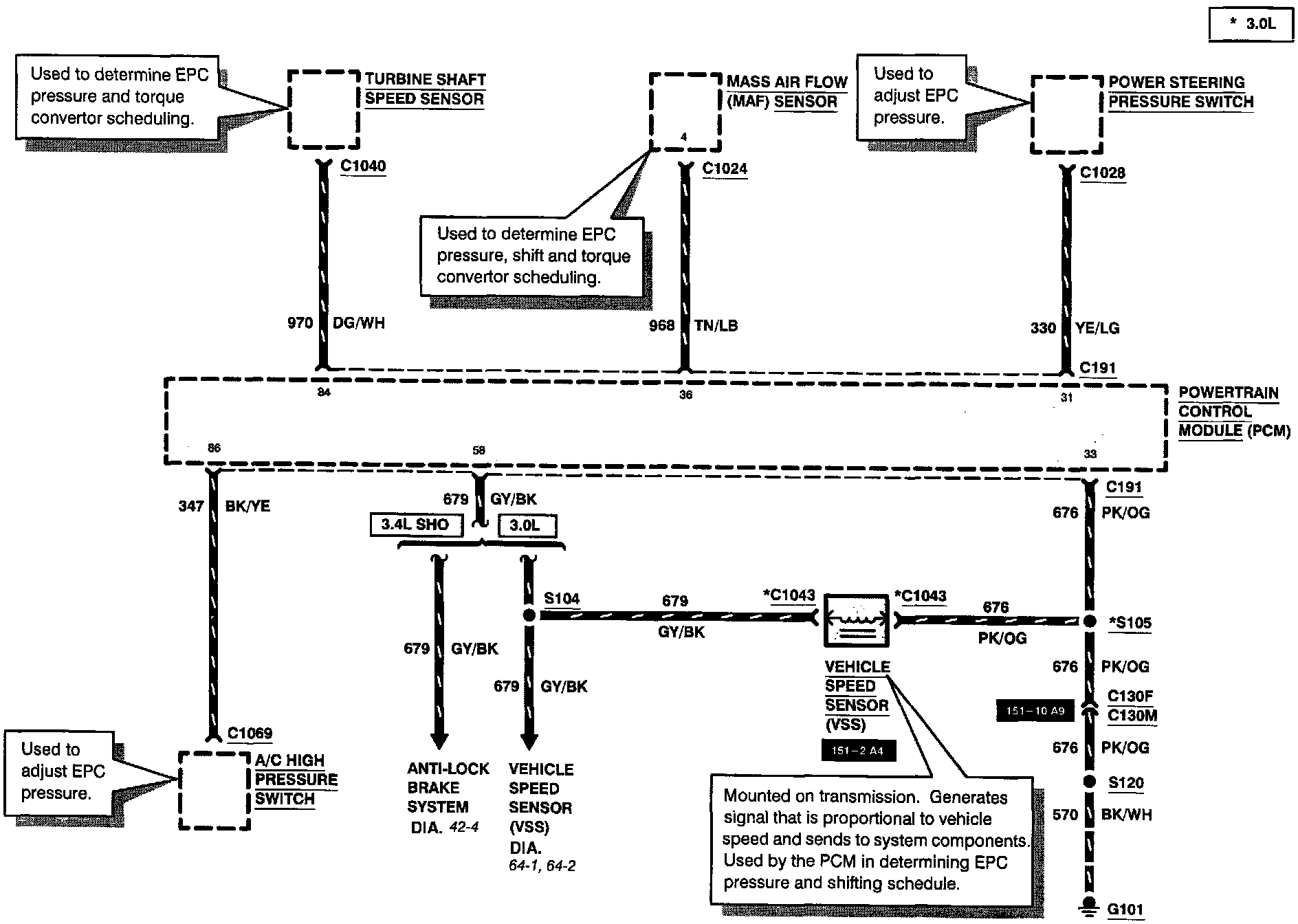

Diagram 29-3:







Mass Air Flow Sensor
Power Steering Pressure Switch
Powertrain Control Module
Turbine Shaft Speed Sensor
Vehicle Speed Sensor

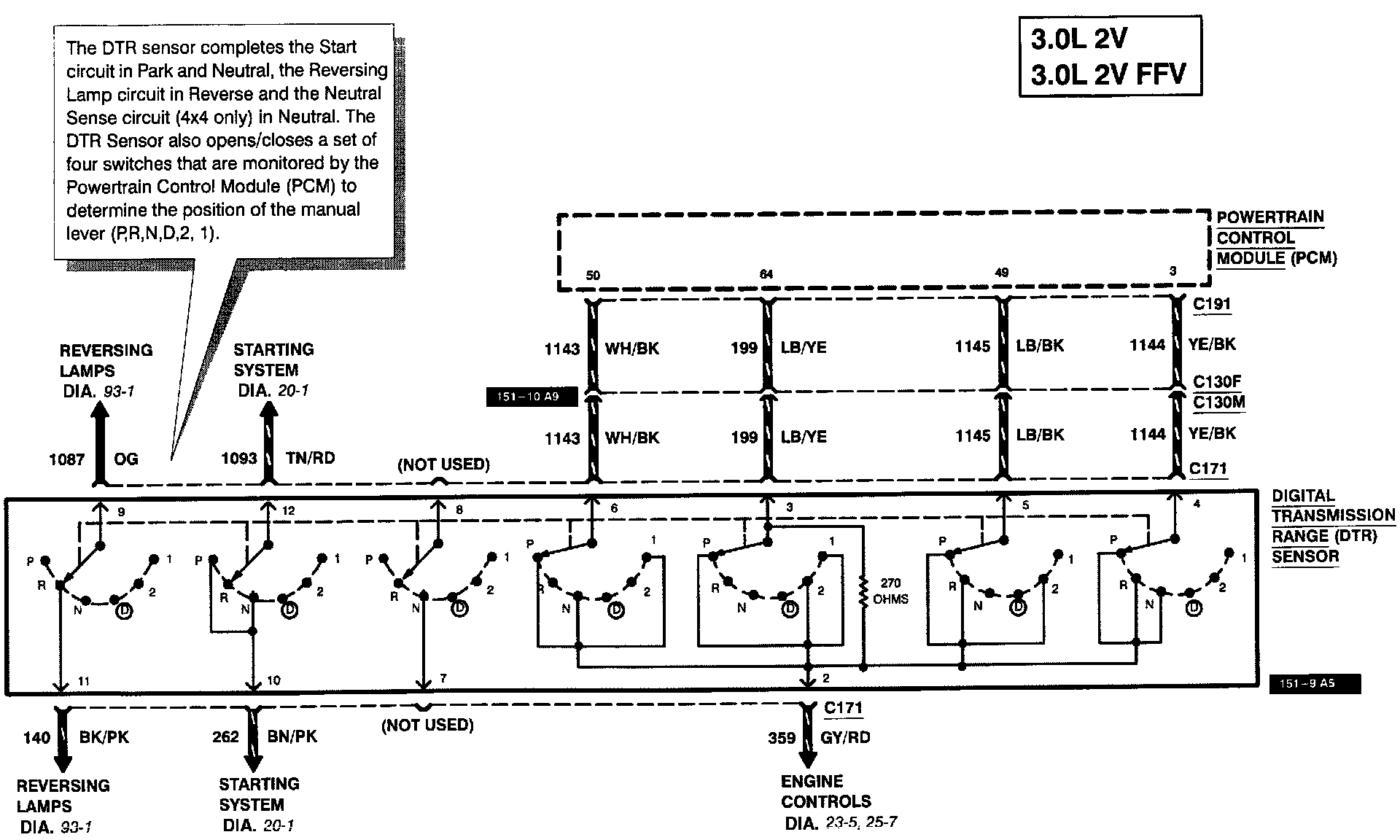

Diagram 29-4:







Digital Transmission Range Sensor
Powertrain Control Module
