Front Suspension: Description

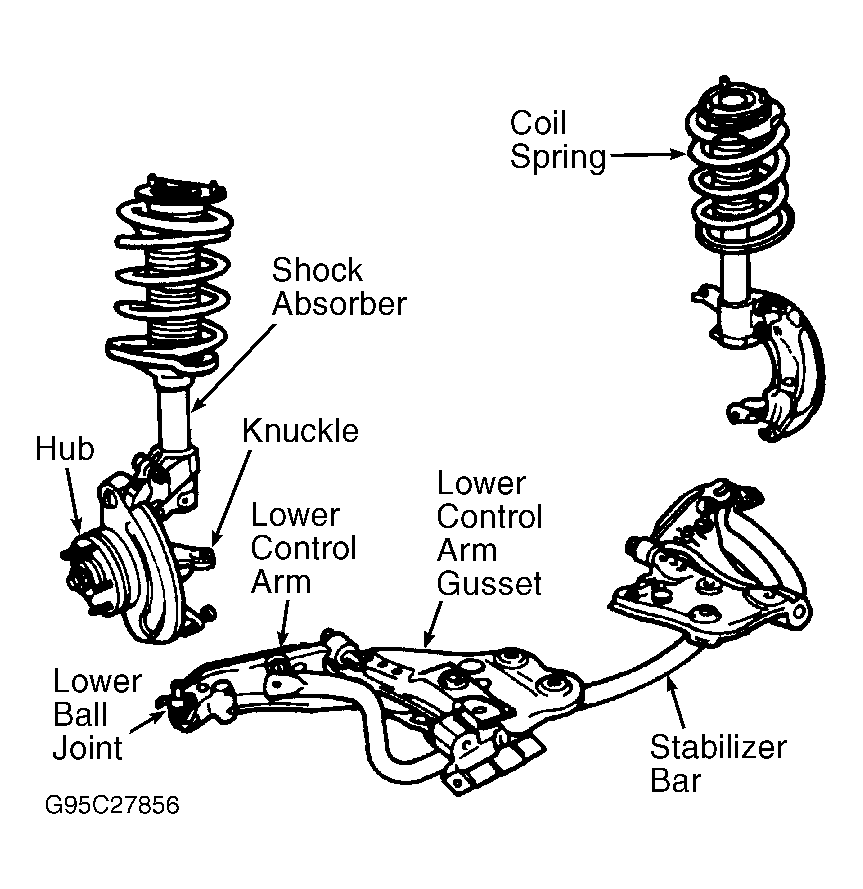

A MacPherson strut-type front suspension system is used. See Fig 1 . Strut assembly consists of a strut and coil spring. Upper end of strut assembly is bolted onto a strut tower.
Lower end of strut is bolted onto wheel knuckle. Wheel knuckle is attached onto lower control arm by a replaceable ball joint. Lower control arms are attached onto chassis by gussets and bushings. Stabilizer bar is attached onto lower control arm.
