Transaxle - Vehicles With 2.5L Engine: Notes

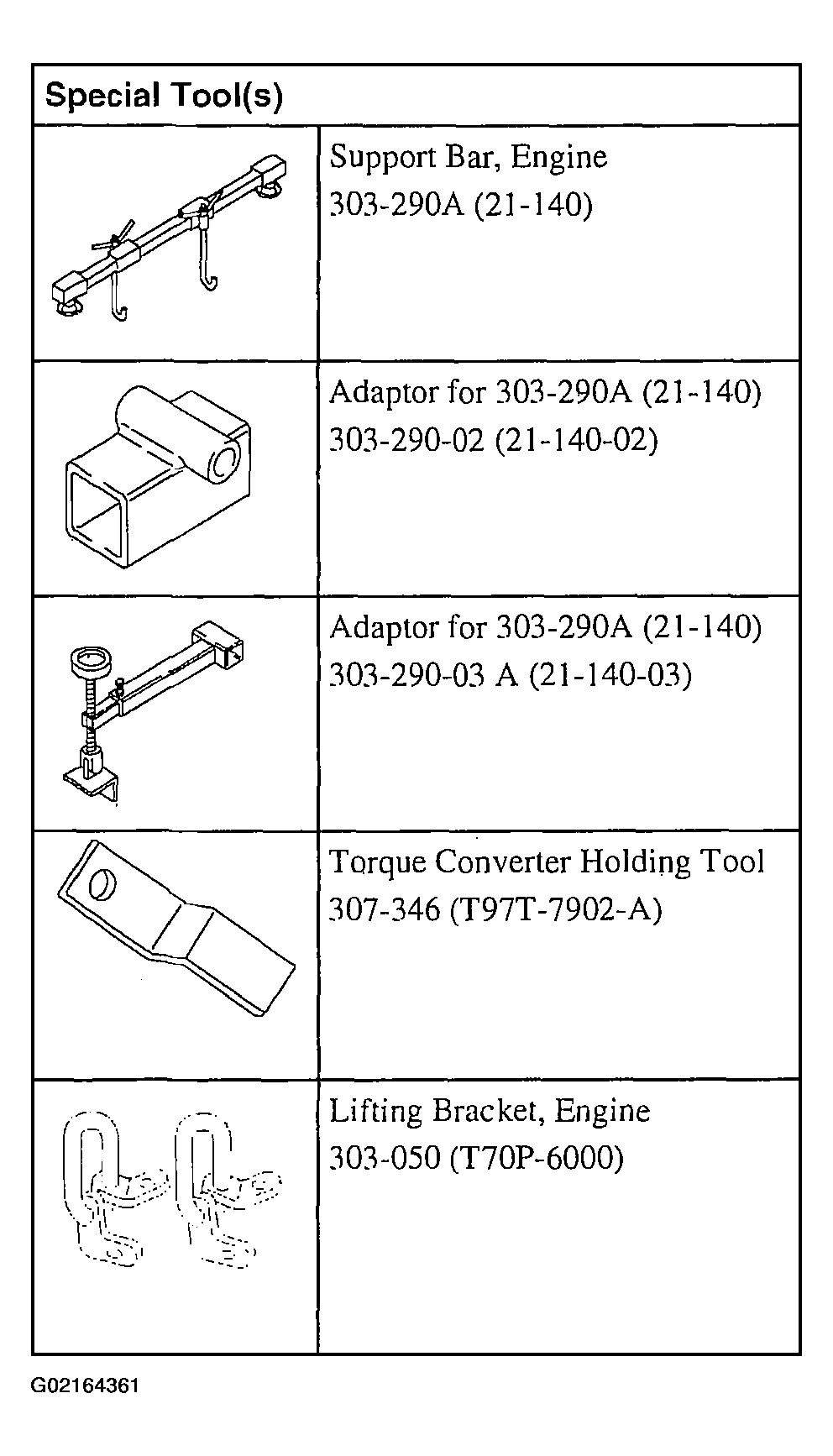

Fig 1: Identifying Transaxle Removal Special Tools (1 Of 2)
G02164361

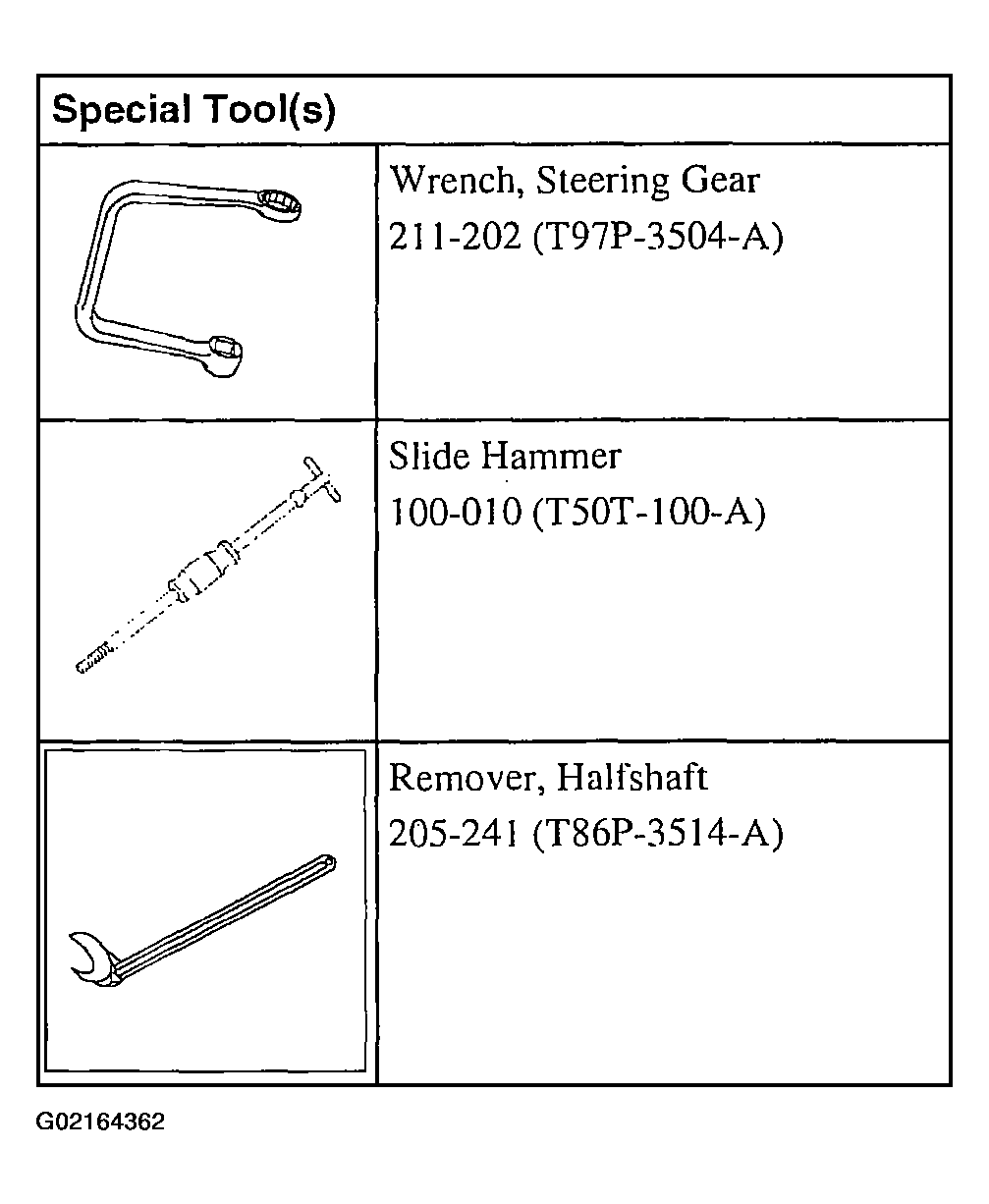

Fig 2: Identifying Transaxle Removal Special Tools (2 Of 2)
G02164362
Fig 3: Identifying Transaxle General Equipment (1 Of 2)
G02164363
Fig 4: Identifying Transaxle General Equipment (2 Of 2)
G02164364
