Catalyst Monitor Sensor: Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
Disconnect the catalyst monitor sensor electrical connector.

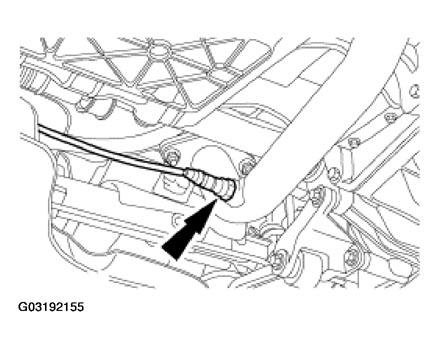

Fig 1: Disconnecting Catalyst Monitor Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the catalyst monitor sensor.

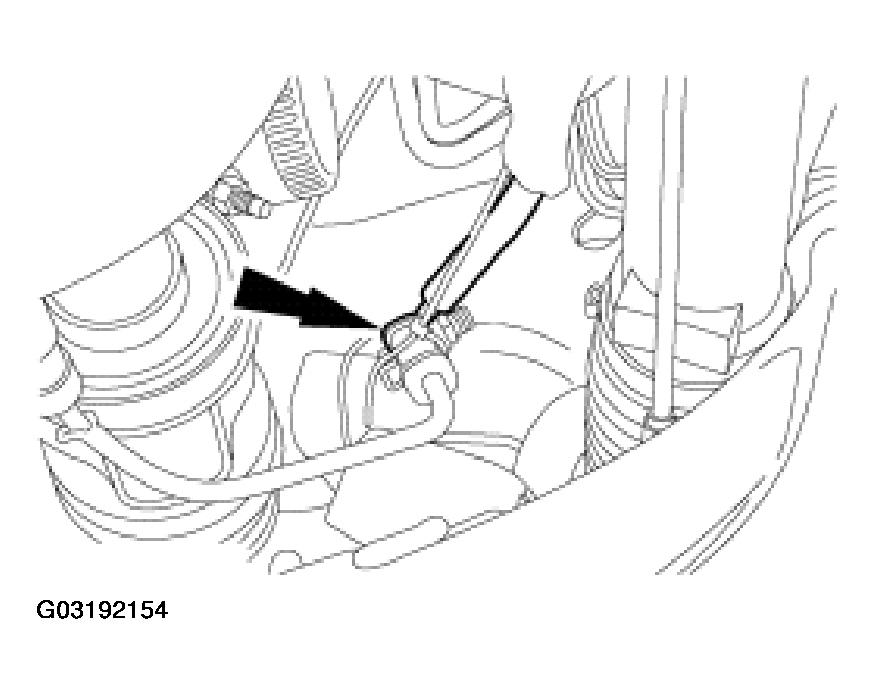

Fig 2: Removing Catalyst Monitor Sensor
Courtesy of FORD MOTOR CO.
