4F50N

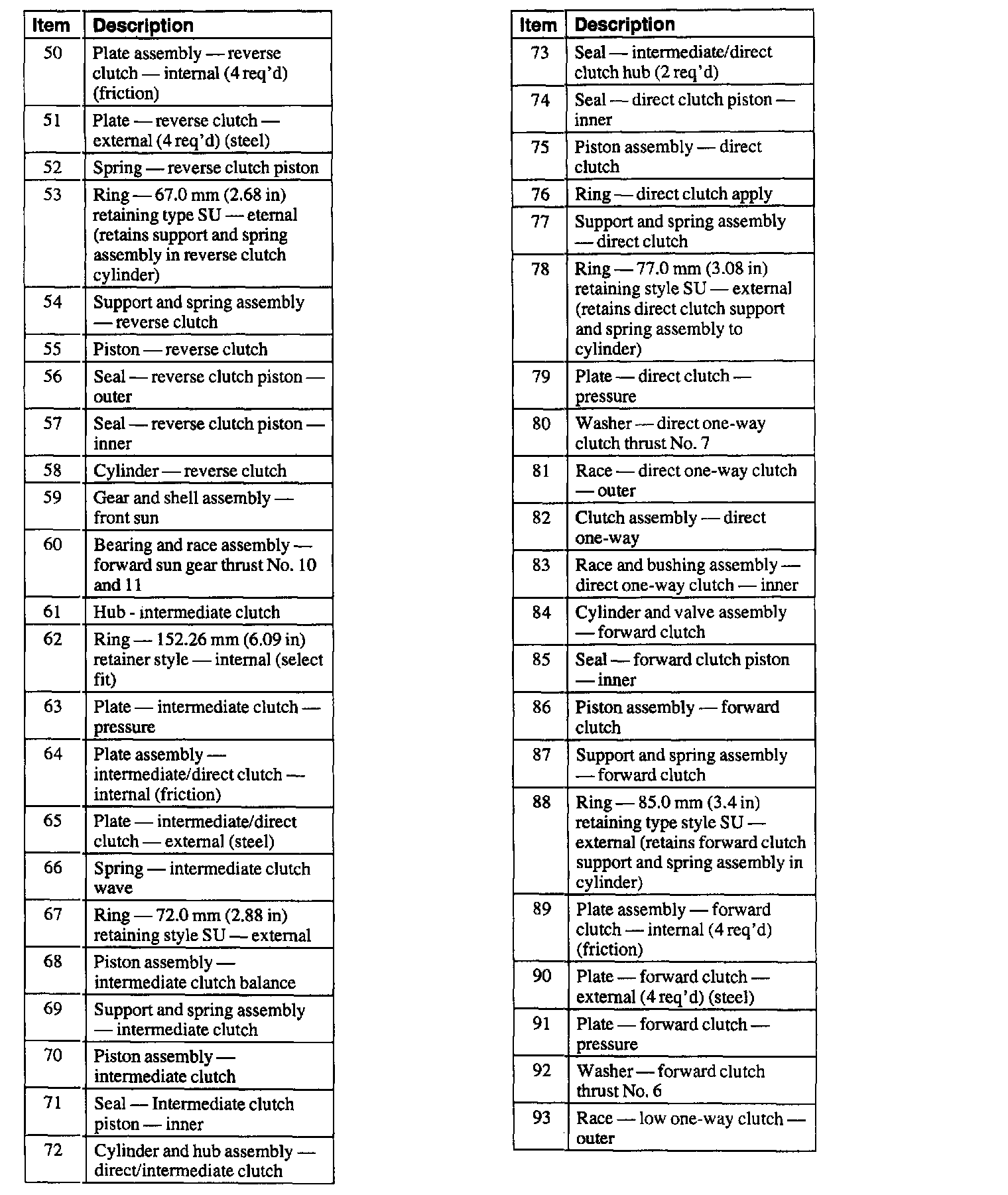

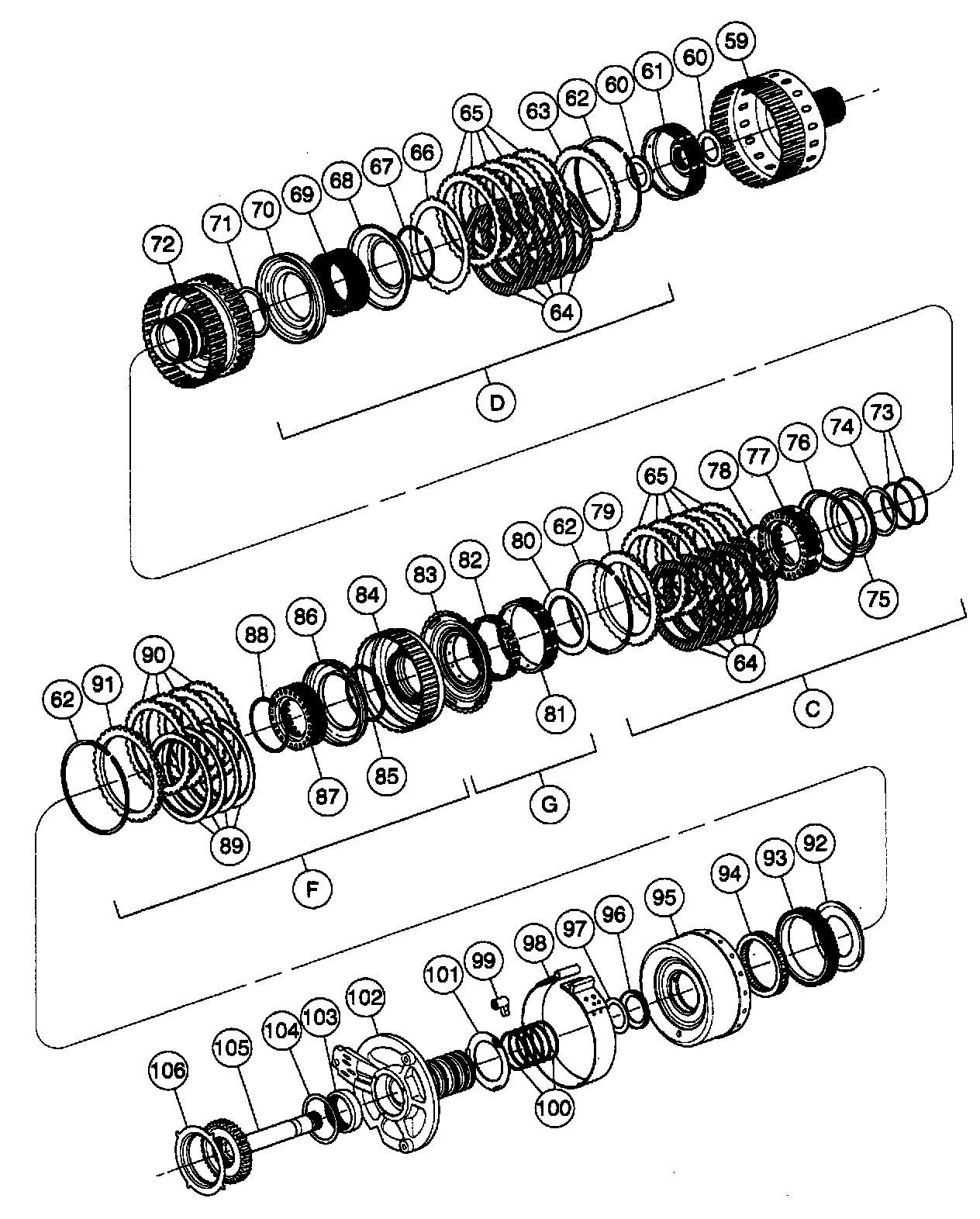

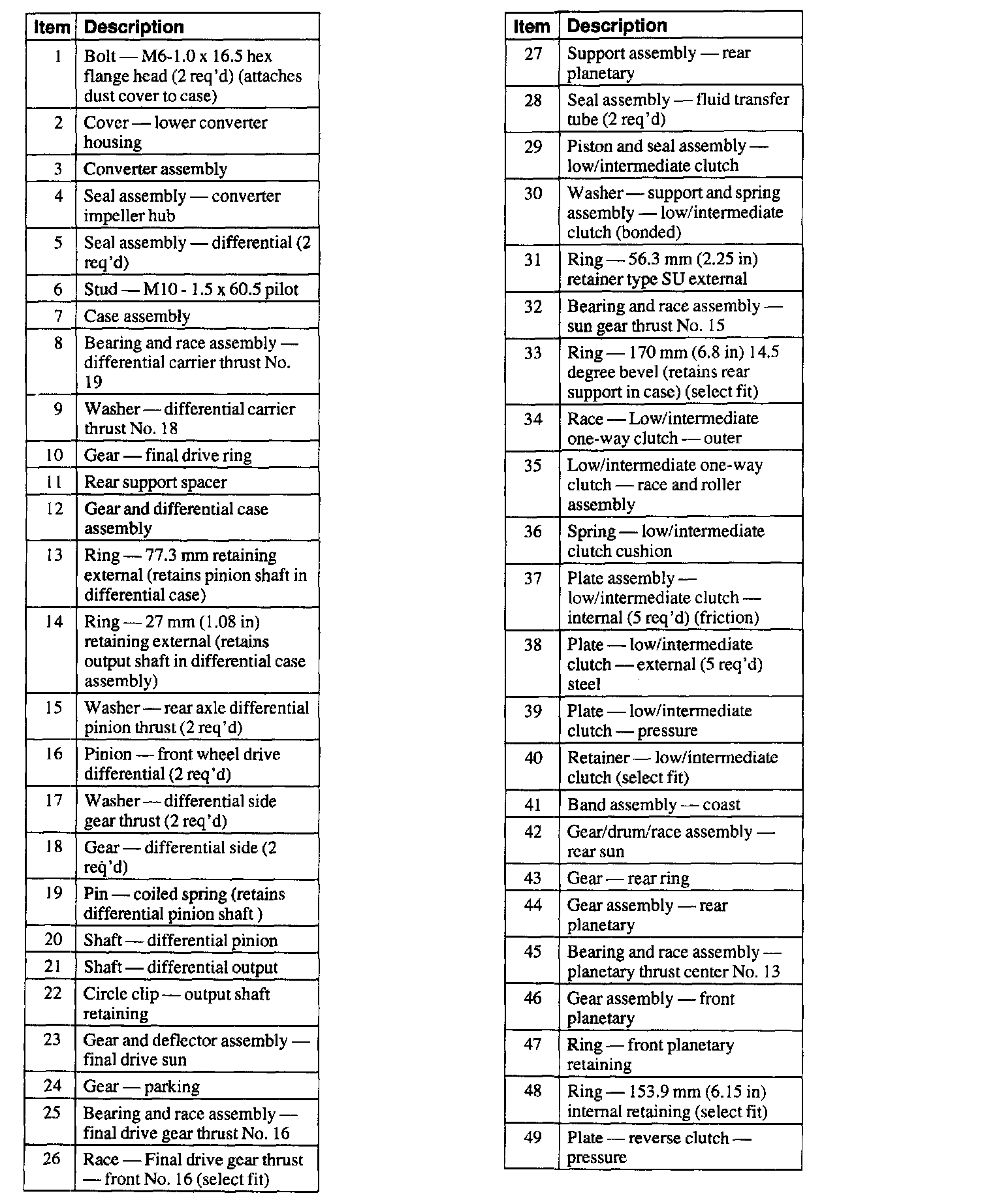

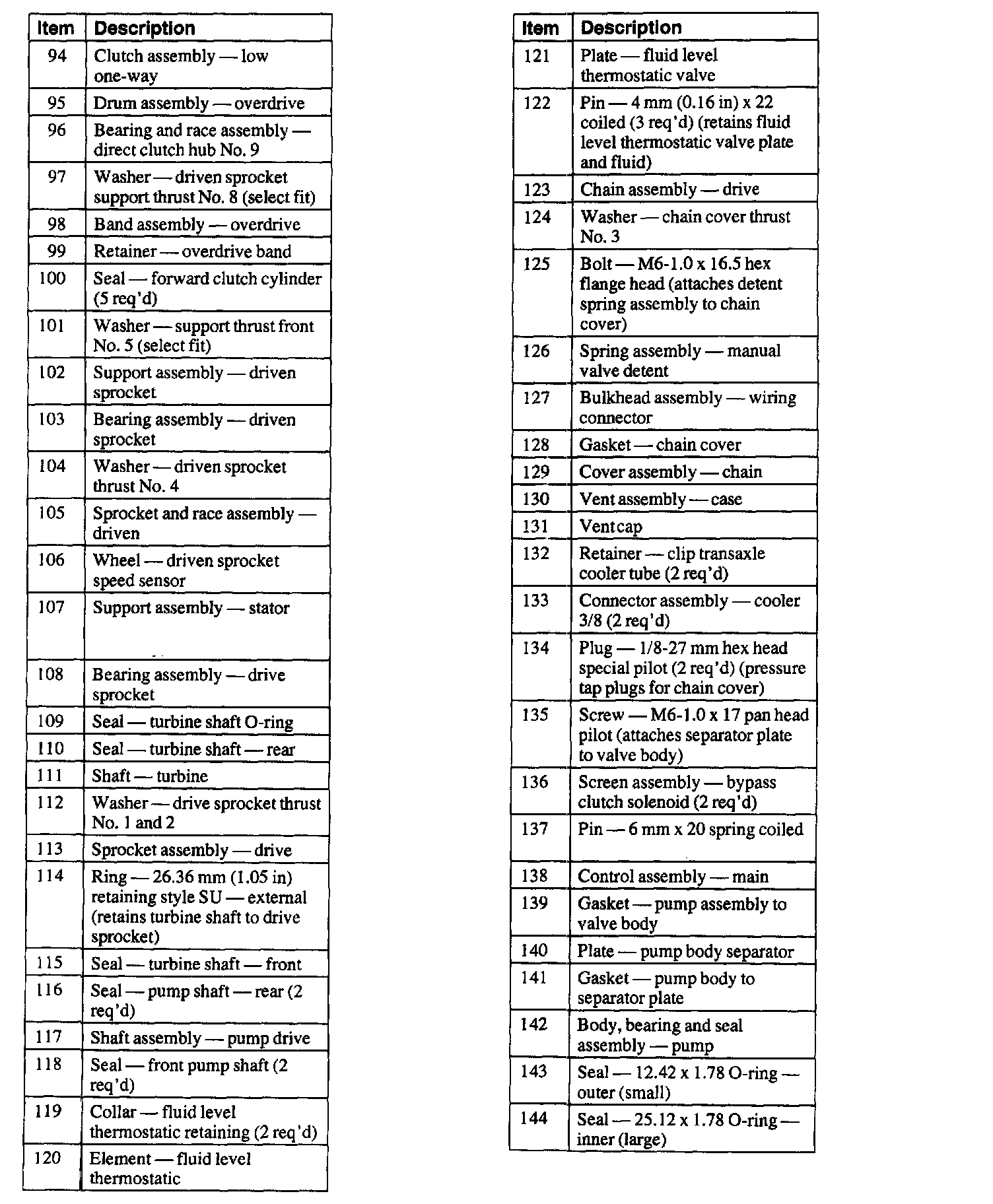

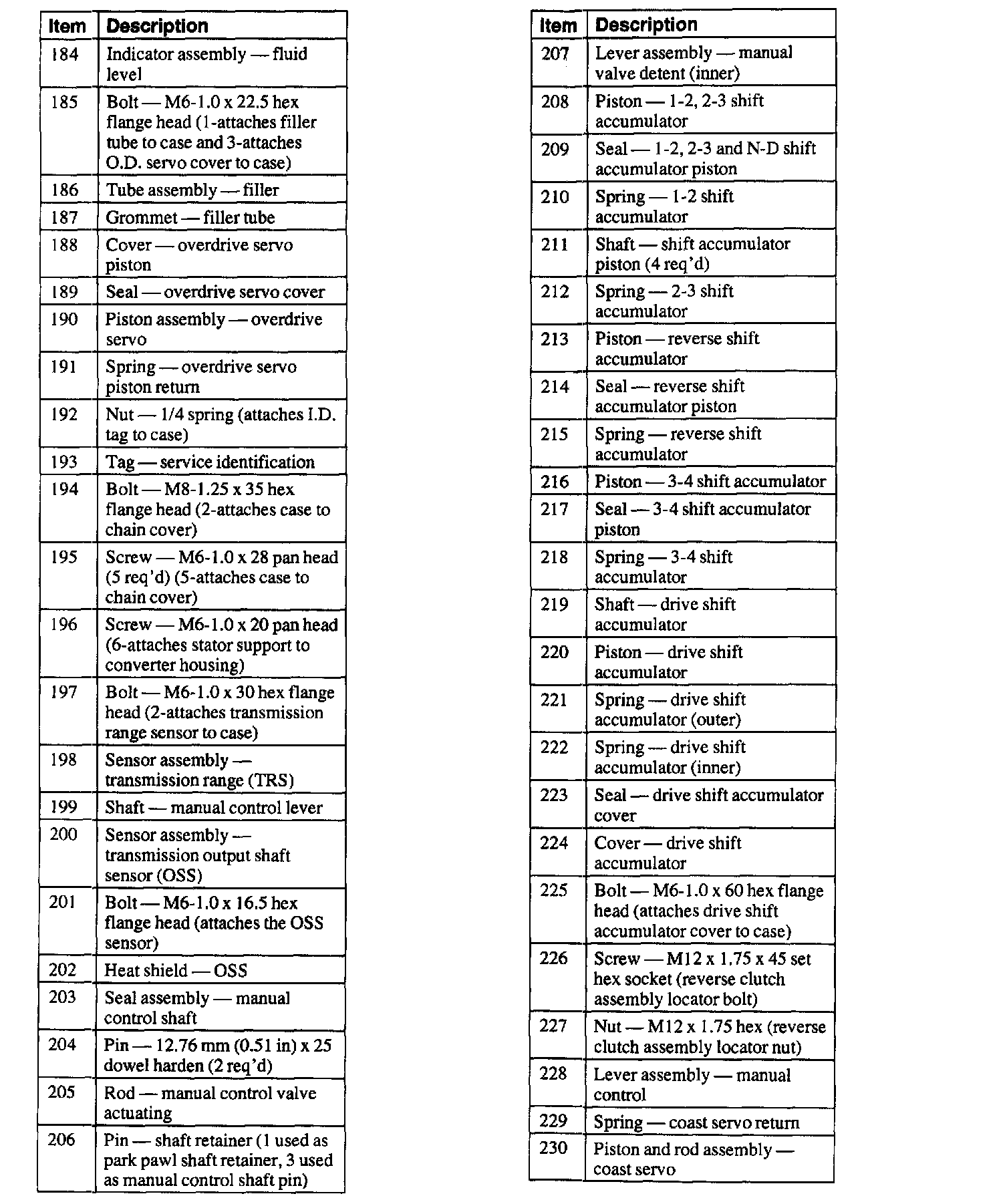

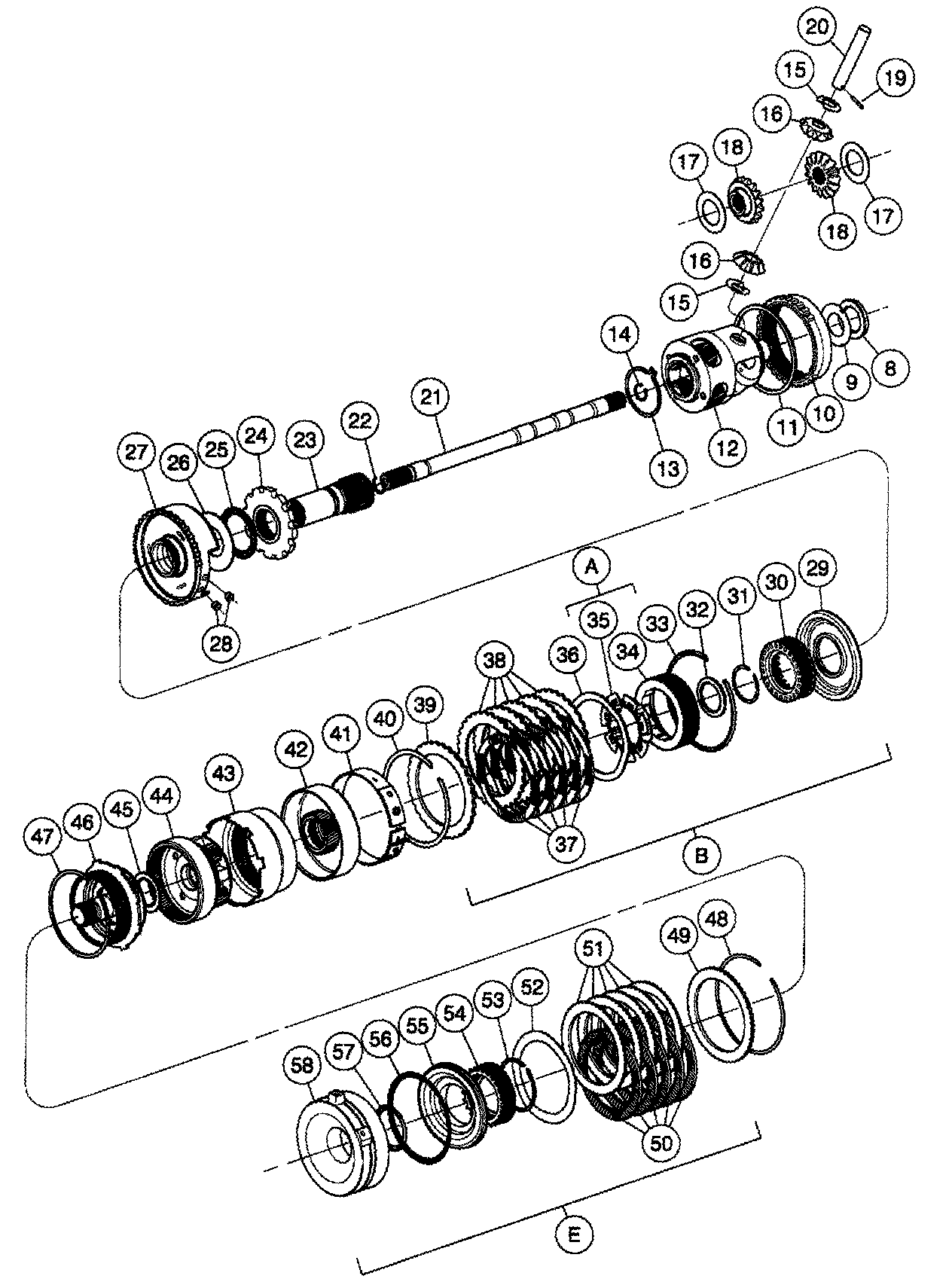

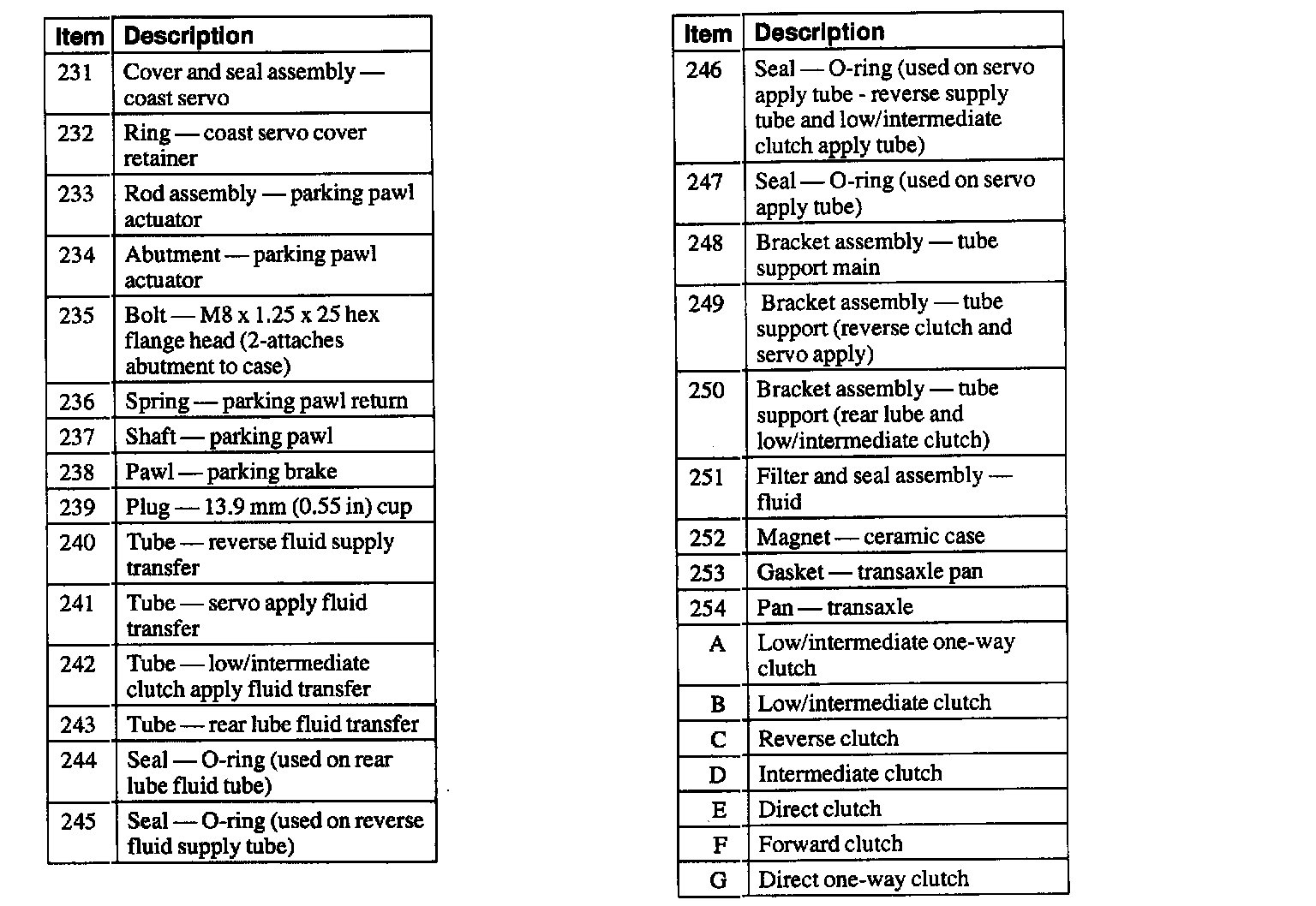

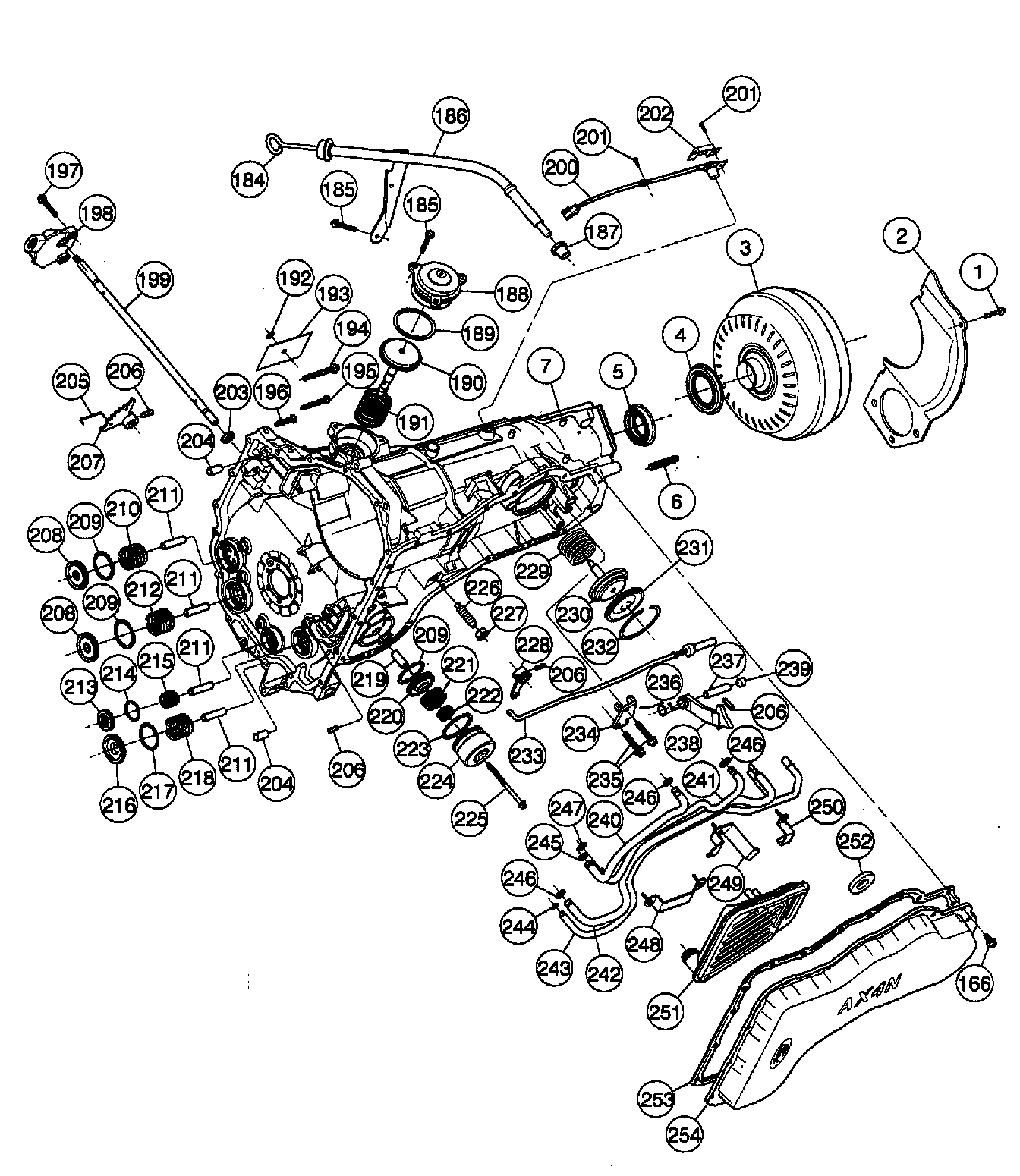

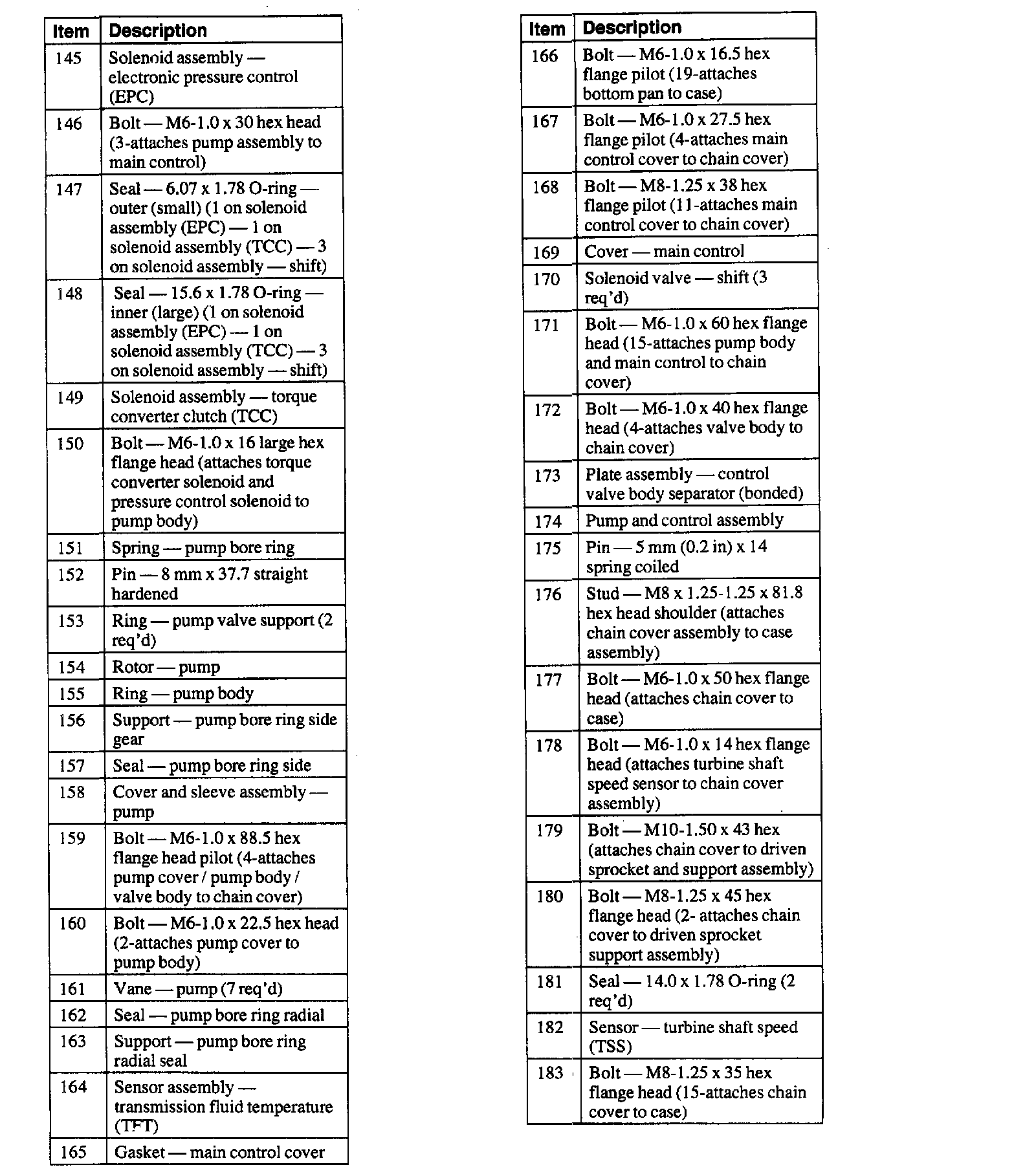

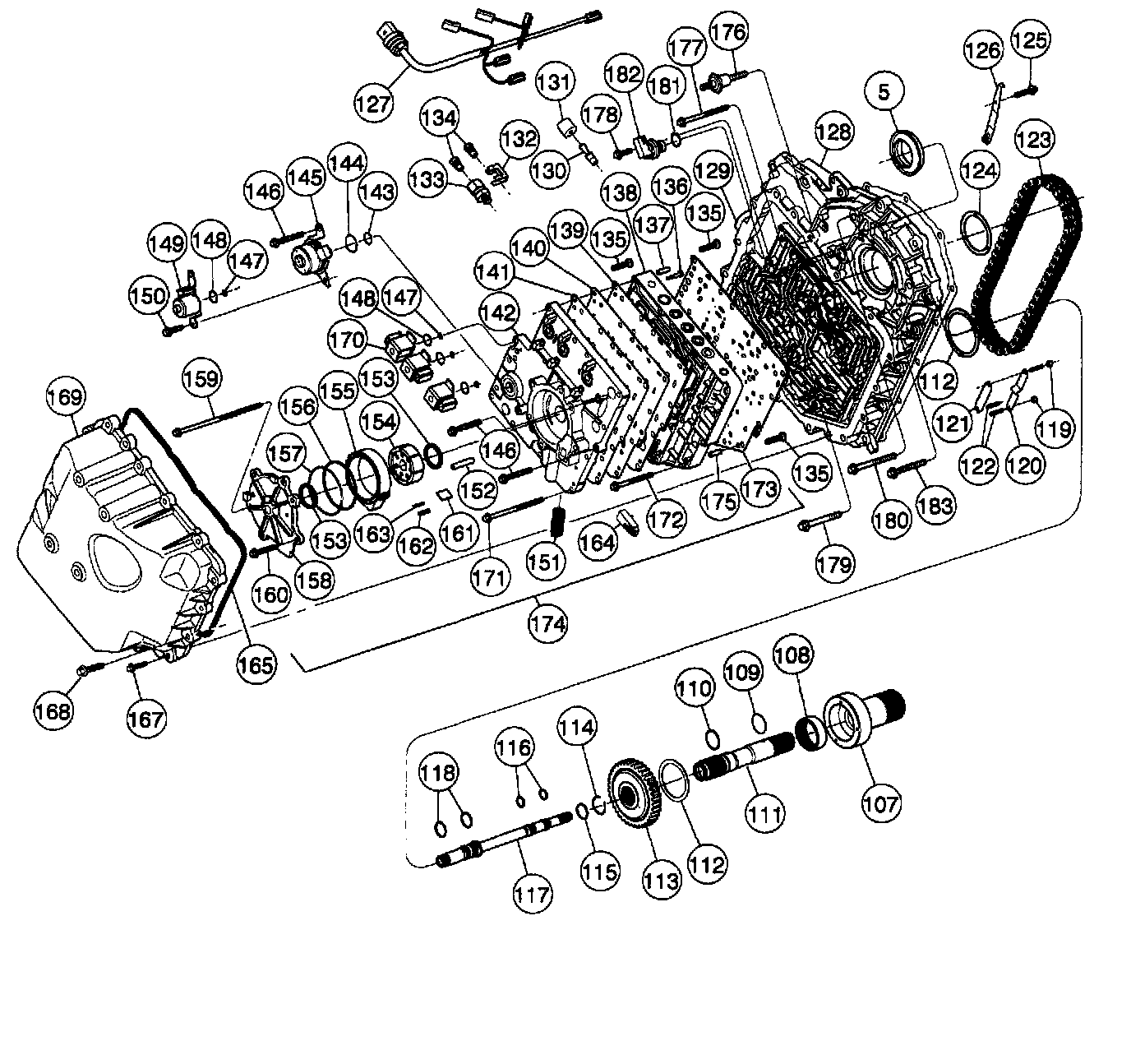

Disassembled Views

Part 1 of 10

Part 2 of 10

Part 3 of 10

Part 4 of 10

Part 5 of 10

Part 6 of 10

Part 7 of 10

Part 8 of 10

Part 9 of 10

Part 10 of 10
