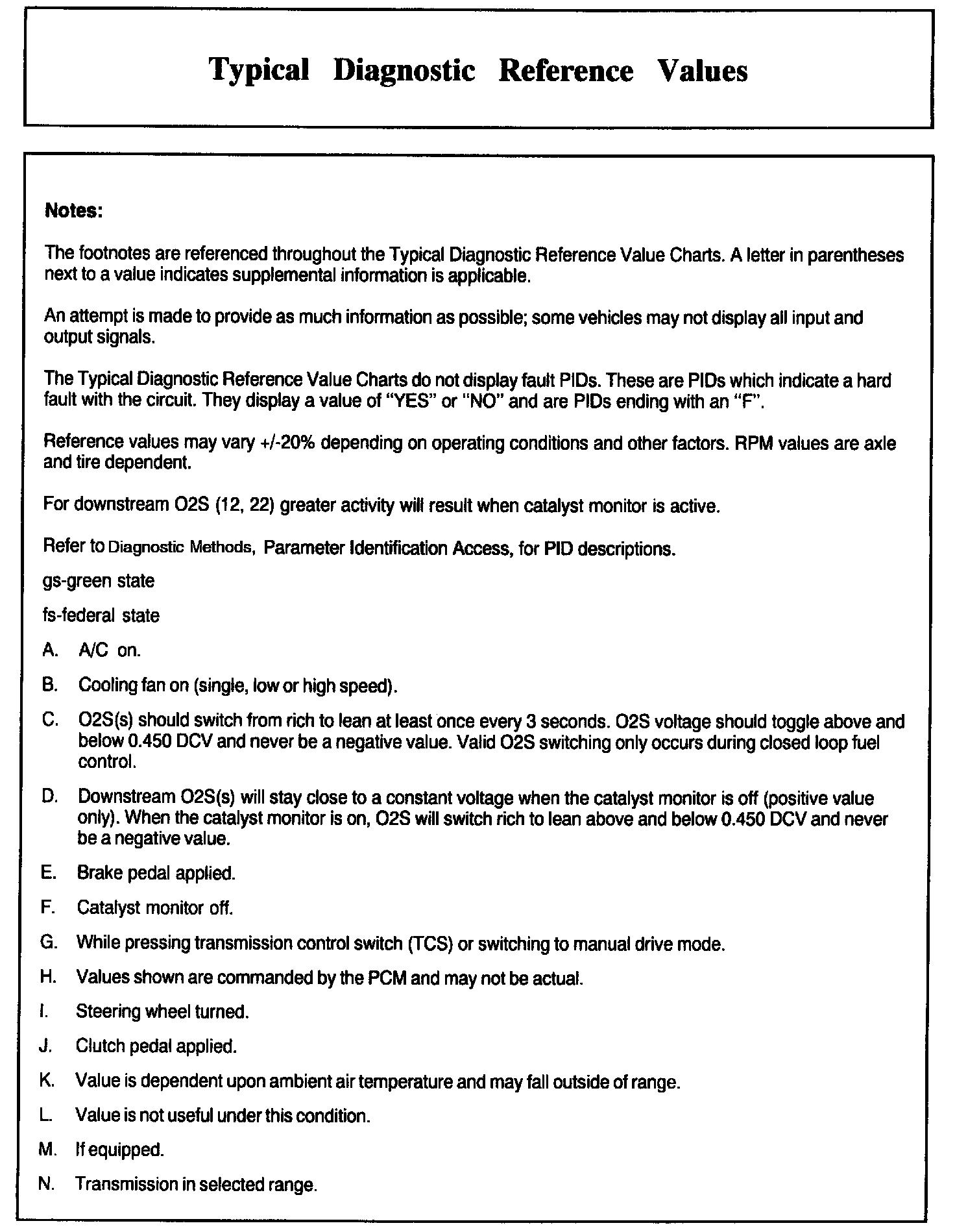

Typical Diagnostic Reference Values Notes

Typical Diagnostic Reference Values, Part 1:



Typical Diagnostic Reference Values, Part 2:
