Pinpoint Test B: The Liftgate Is Inoperative Using The Remote Transmitter

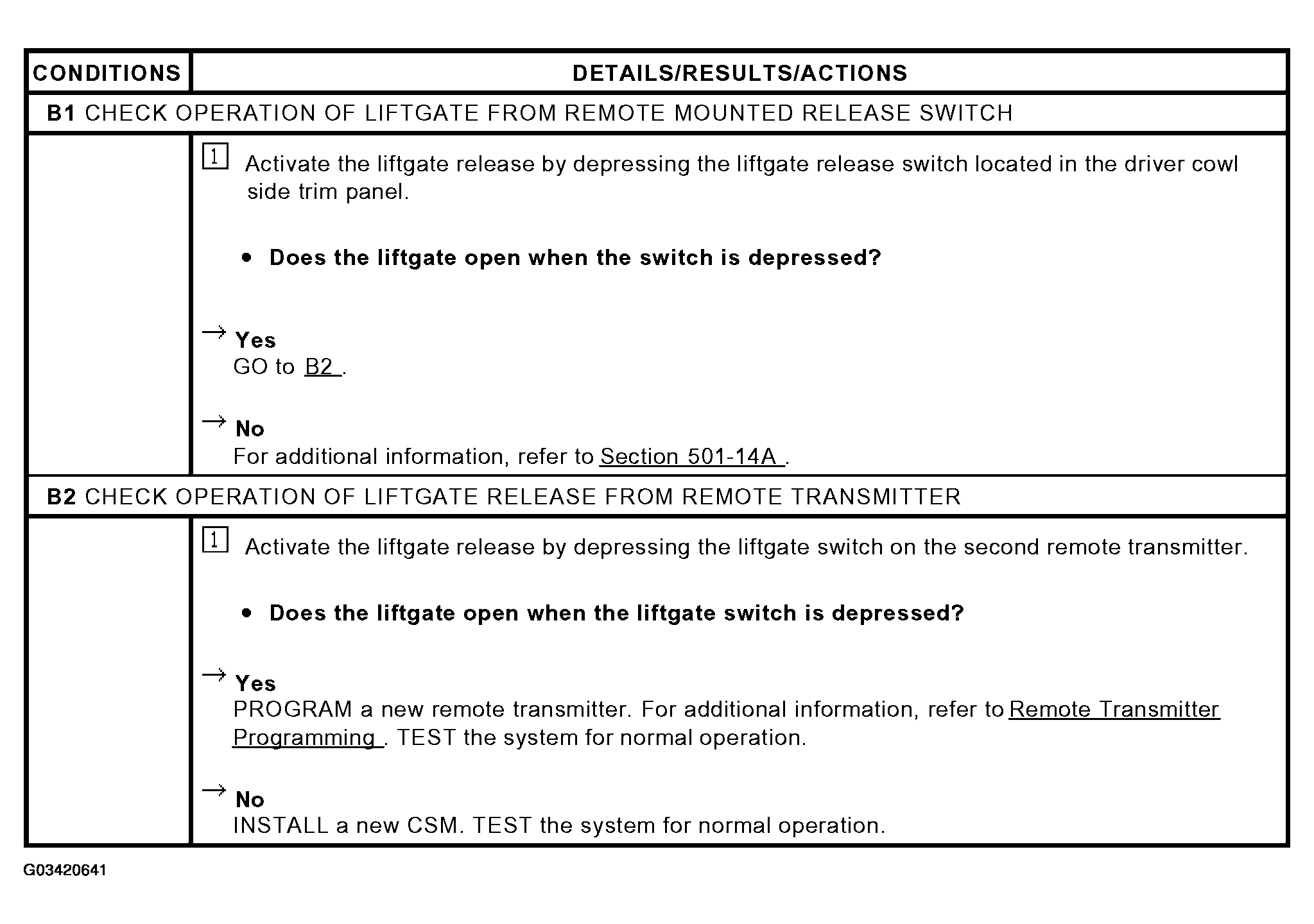

Fig 1: Pinpoint Test B: Liftgate Is Inoperative Using Remote Transmitter
G03420641Courtesy of FORD MOTOR CO.
