Selector Mechanism: Disassembly

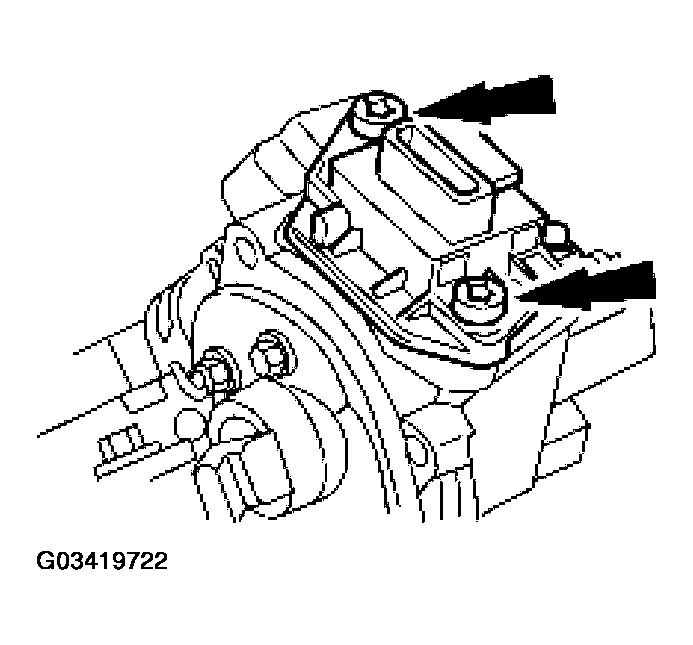

Remove the reversing lamp switch.

Fig 1: Removing Reversing Lamp Switch
Courtesy of FORD MOTOR CO.

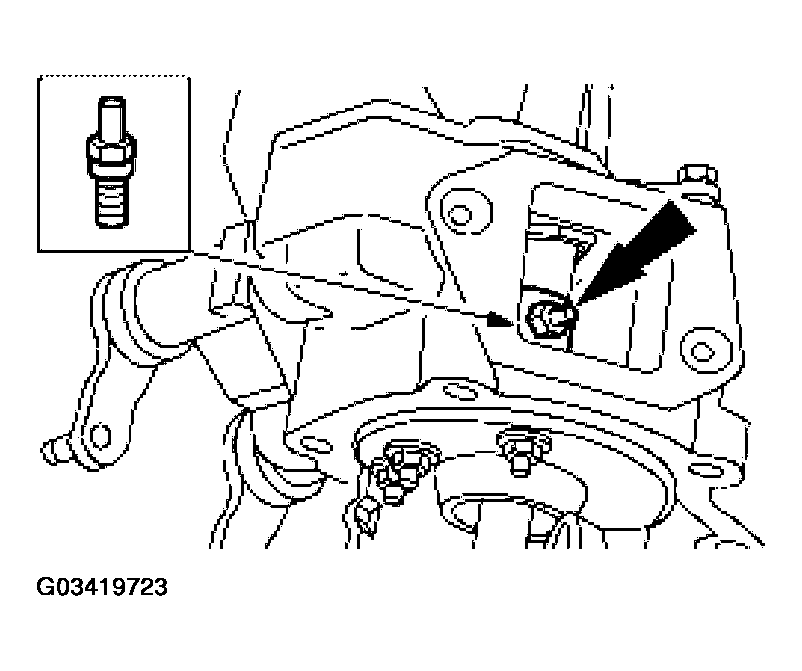

Remove the reversing lamp actuating pin.

Fig 2: Removing Reversing Lamp Actuating Pin
Courtesy of FORD MOTOR CO.
Remove the gearshift lever and the cover of the internal selector mechanism.

Fig 3: Removing Gearshift Lever And Internal Selector Mechanism Cover
Courtesy of FORD MOTOR CO.

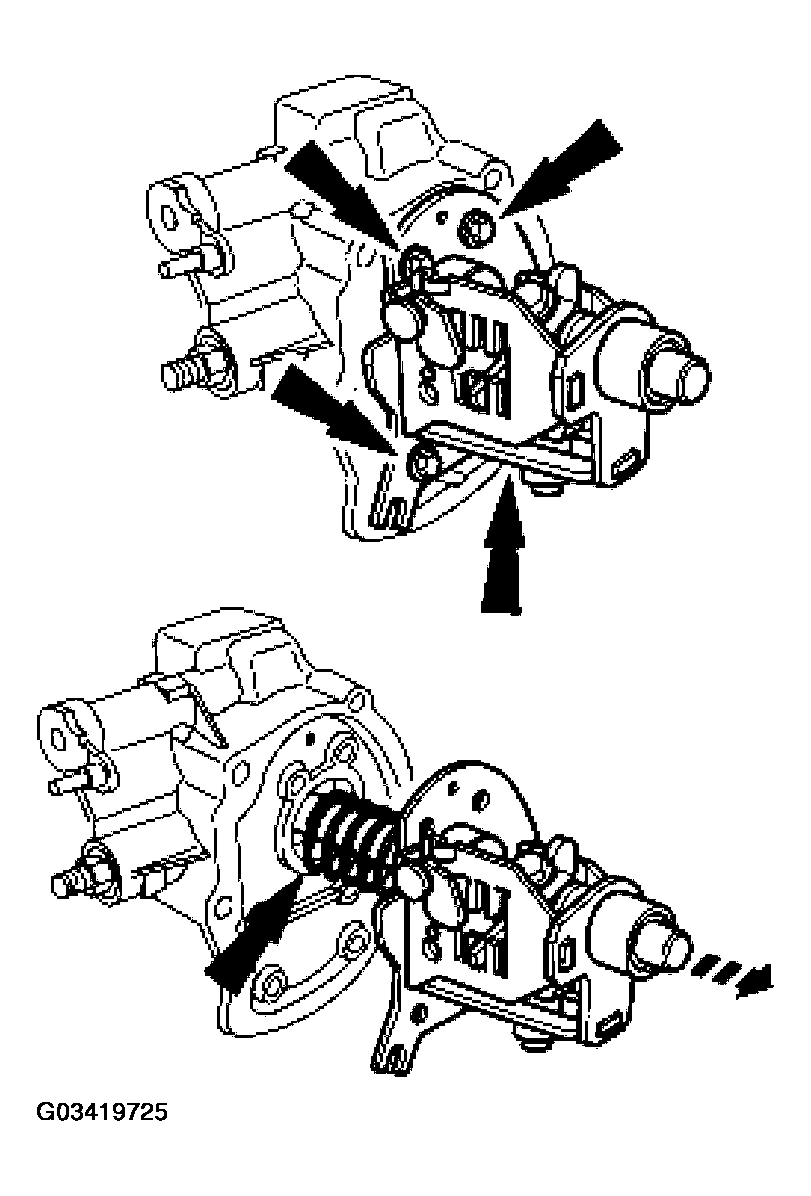

Remove the bolts and disconnect the selector gate and selector shaft from the selector mechanism housing.
- Remove the springs.

  Fig 4: Disconnecting Selector Gate And Selector Shaft From Selector Mechanism Housing
  Courtesy of FORD MOTOR CO.

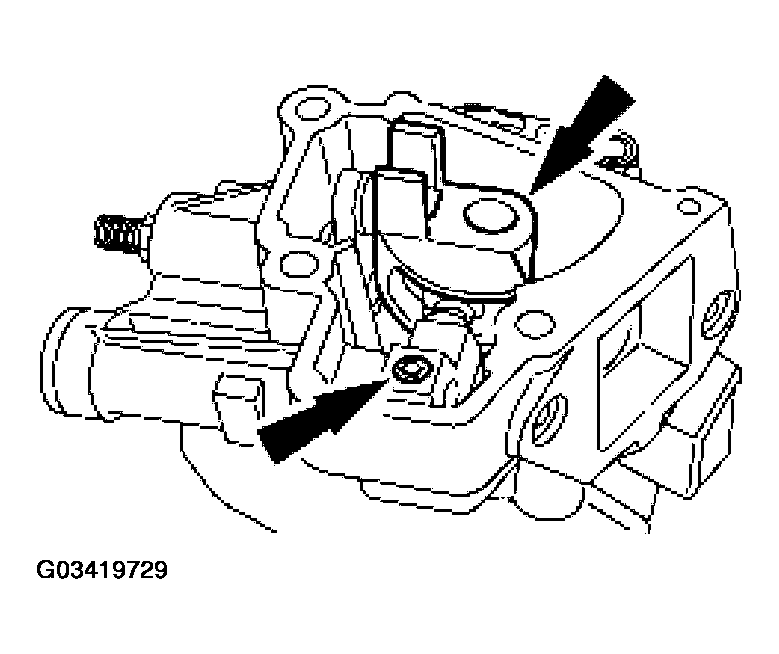

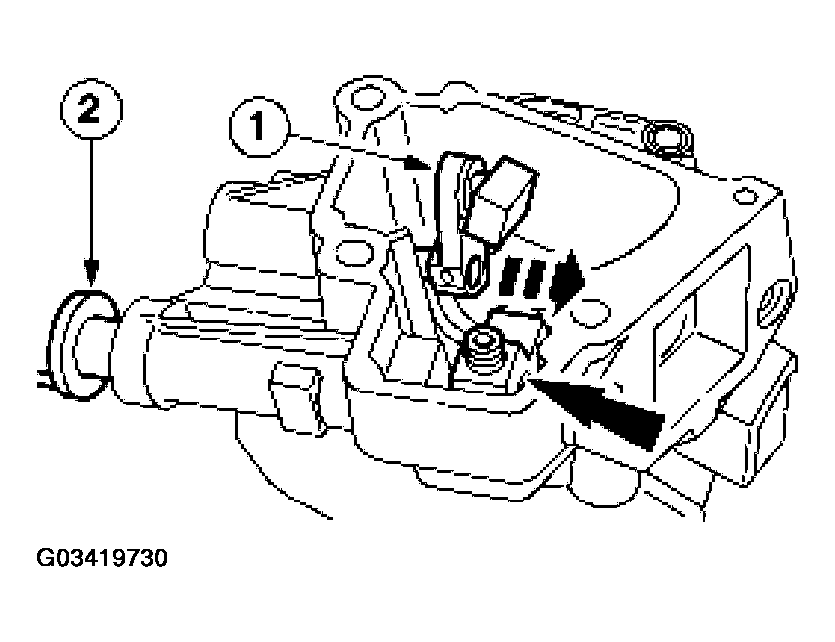

Remove the selector shaft.
1. Remove the bolt.
2. Pull out the selector shaft.
3. Remove the selector finger and bracket.

  Fig 5: Removing Selector Shaft
  Courtesy of FORD MOTOR CO.
Remove the snap ring and washer from the selector shaft.

Fig 6: Removing Snap Ring And Washer From Selector Shaft
Courtesy of FORD MOTOR CO.

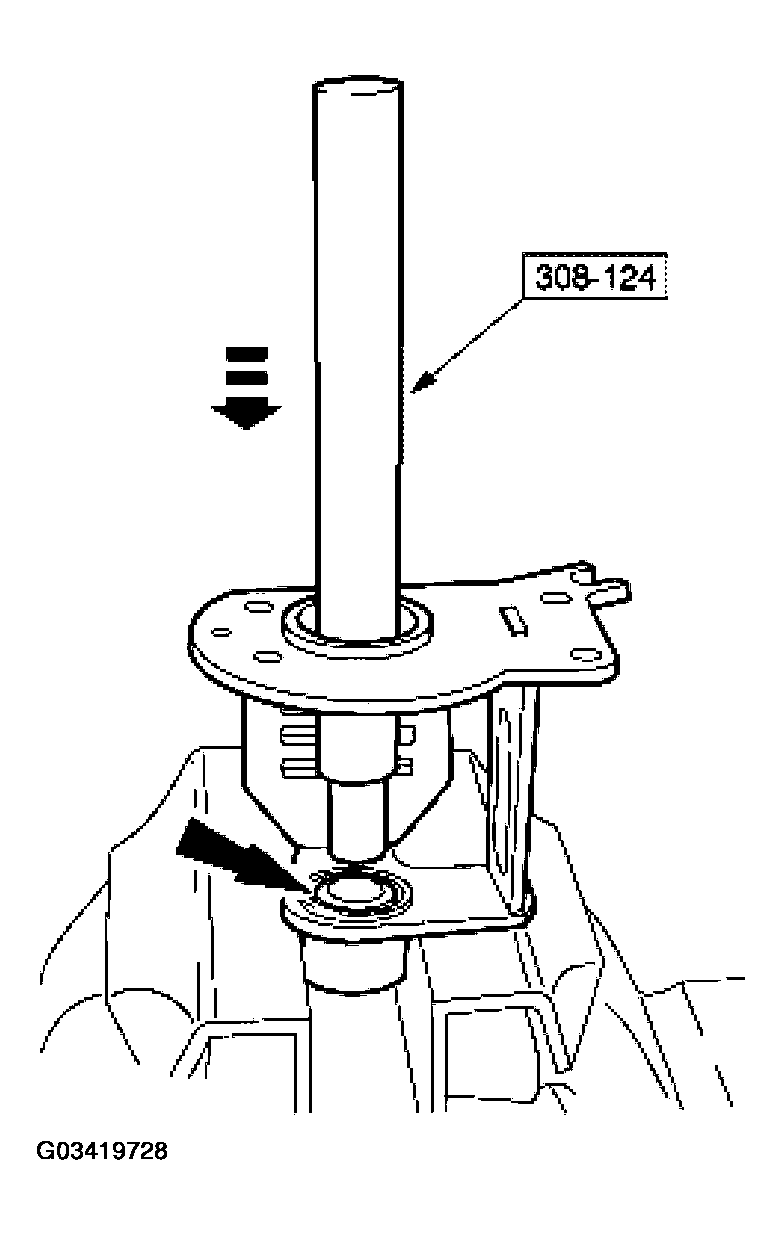

Using the special tool, drive the ball sleeve out of the selector gate.

Fig 7: Removing Ball Sleeve From Selector Gate
Courtesy of FORD MOTOR CO.
Loosen the bolt and remove the guide bracket.

Fig 8: Removing Guide Bracket
Courtesy of FORD MOTOR CO.
Remove the gearshift and selector lever shafts.
1. Gearshift lever shaft.
2. Selector lever shaft.
  - Remove the ball joint.

    Fig 9: Removing Gearshift And Selector Lever Shafts
    Courtesy of FORD MOTOR CO.
Remove the oil seals.

Fig 10: Removing Oil Seals
Courtesy of FORD MOTOR CO.
Using a suitable driver, drive out the two bearings of the gearshift lever shaft downward.

Fig 11: Removing Gearshift Lever Shaft Bearings
Courtesy of FORD MOTOR CO.
