Fill Procedure

MATERIAL SPECIFICATIONS

Item	Specification
Manual transmission fluid -	WSD-M2C200-C

Raise and support the vehicle.
Remove the fill plug.

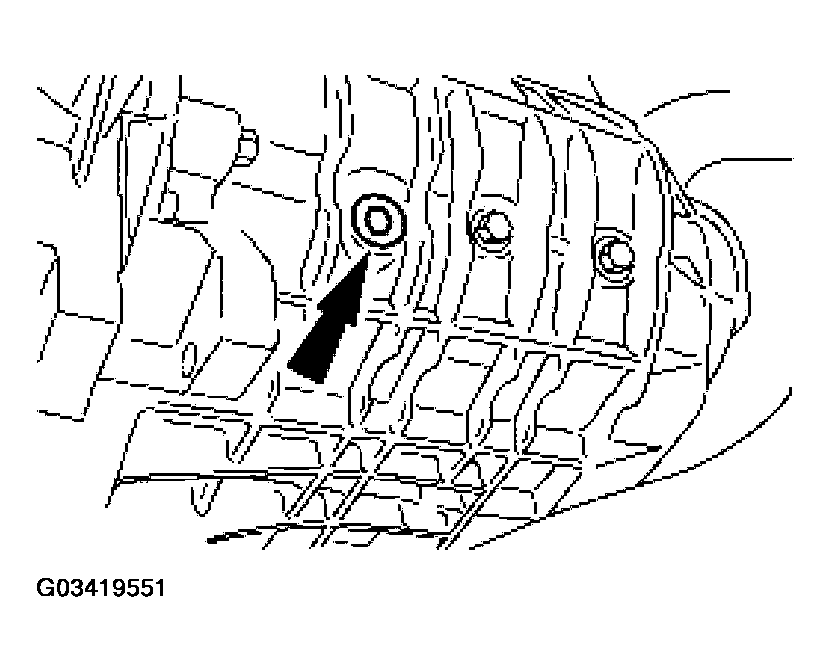

Fig 1: Removing Fill Plug
Courtesy of FORD MOTOR CO.
Fill the transaxle to 0 -5mm below the lower edge of the fill plug bore.
- Fill manual transmission fluid.

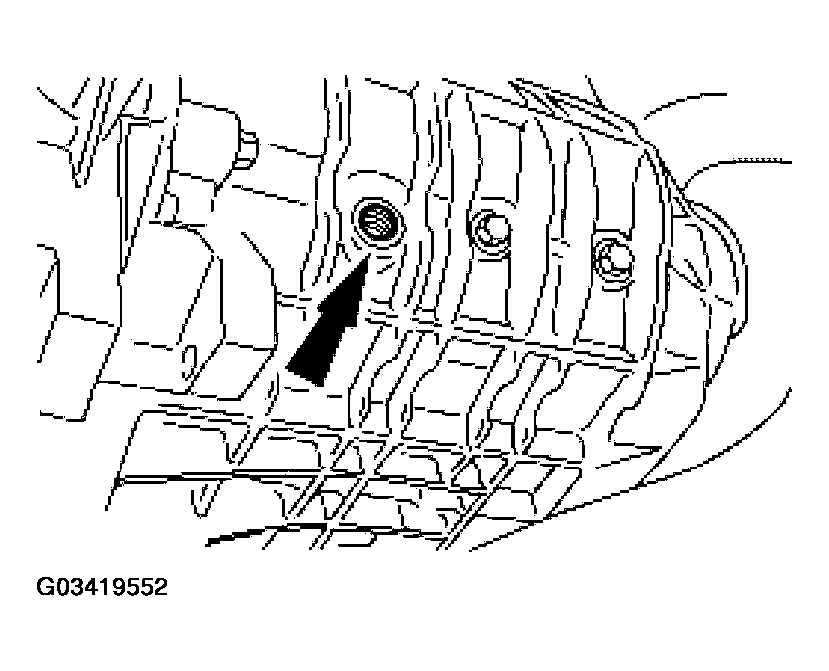

  Fig 2: Identifying Manual Transmission Fluid Filling Level
  Courtesy of FORD MOTOR CO.
Install the fill plug.

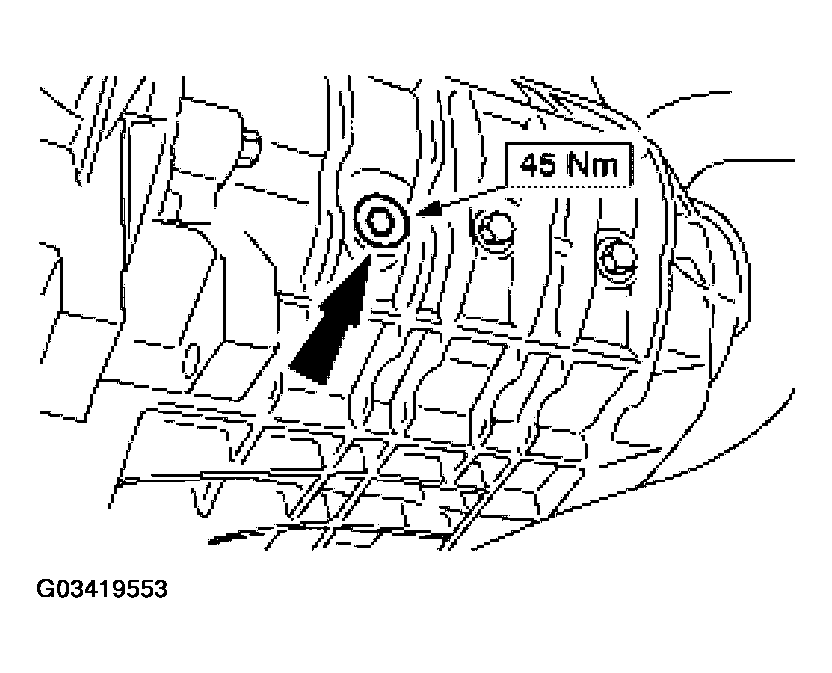

Fig 3: Installing Fill Plug
Courtesy of FORD MOTOR CO.
Lower the vehicle.
