Reference: Pressure Chart

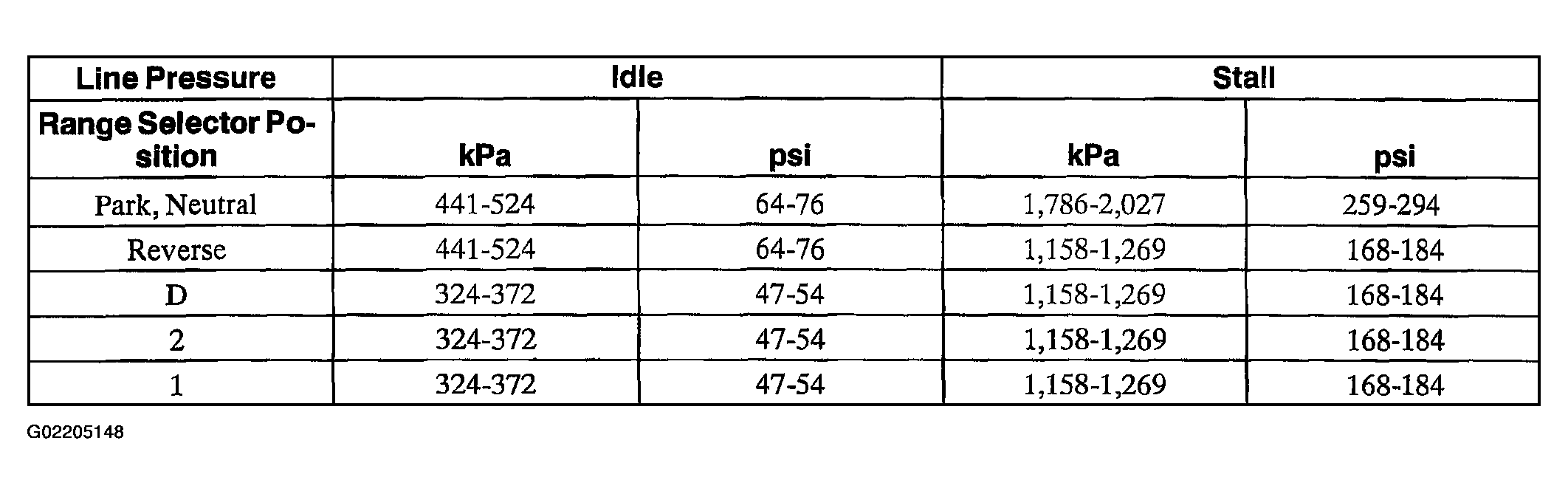

Fig 1: Pressure Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
