Ignition Switch

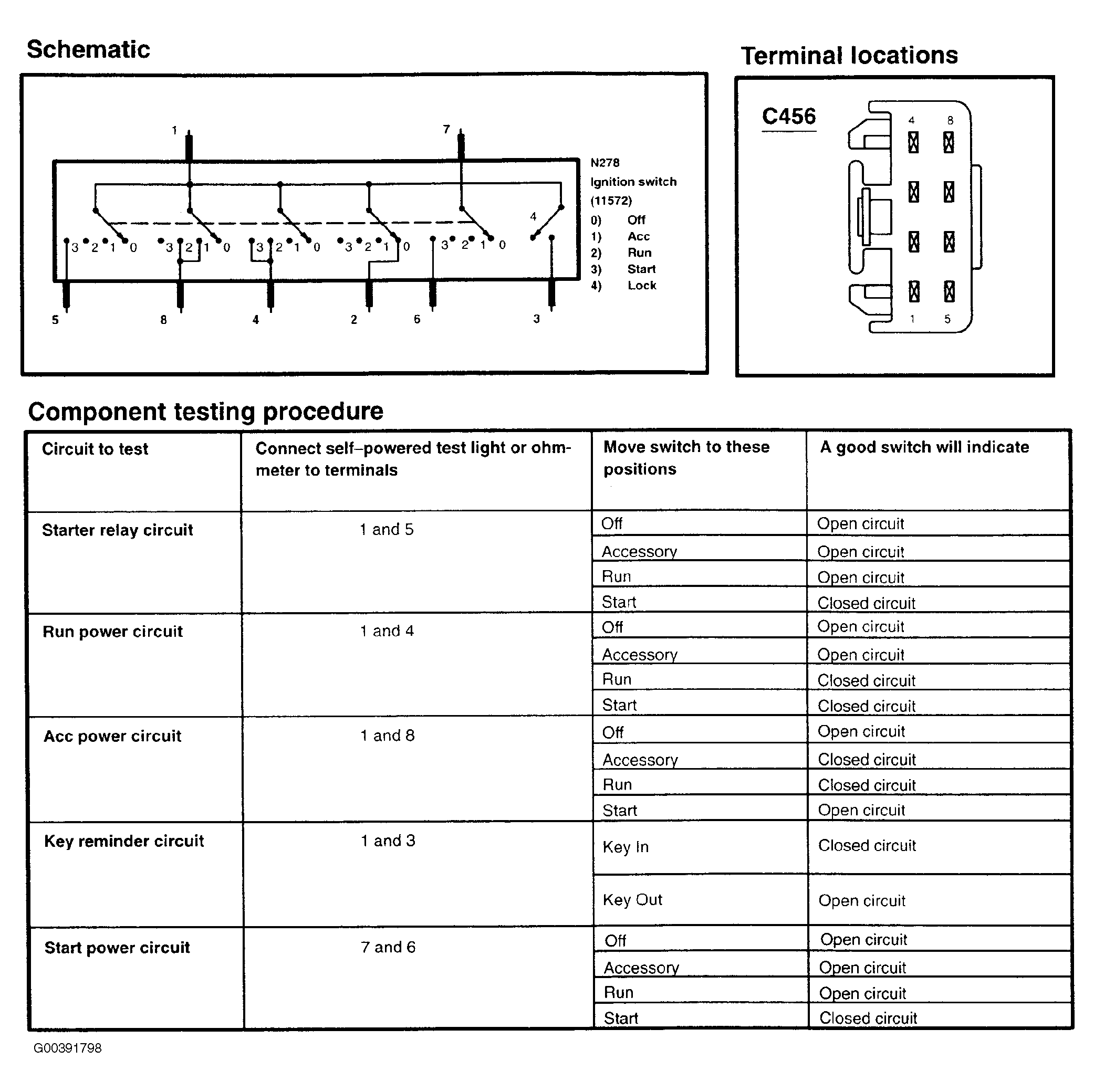

Fig 1: Testing Ignition Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
