Wiper/Washer Switch

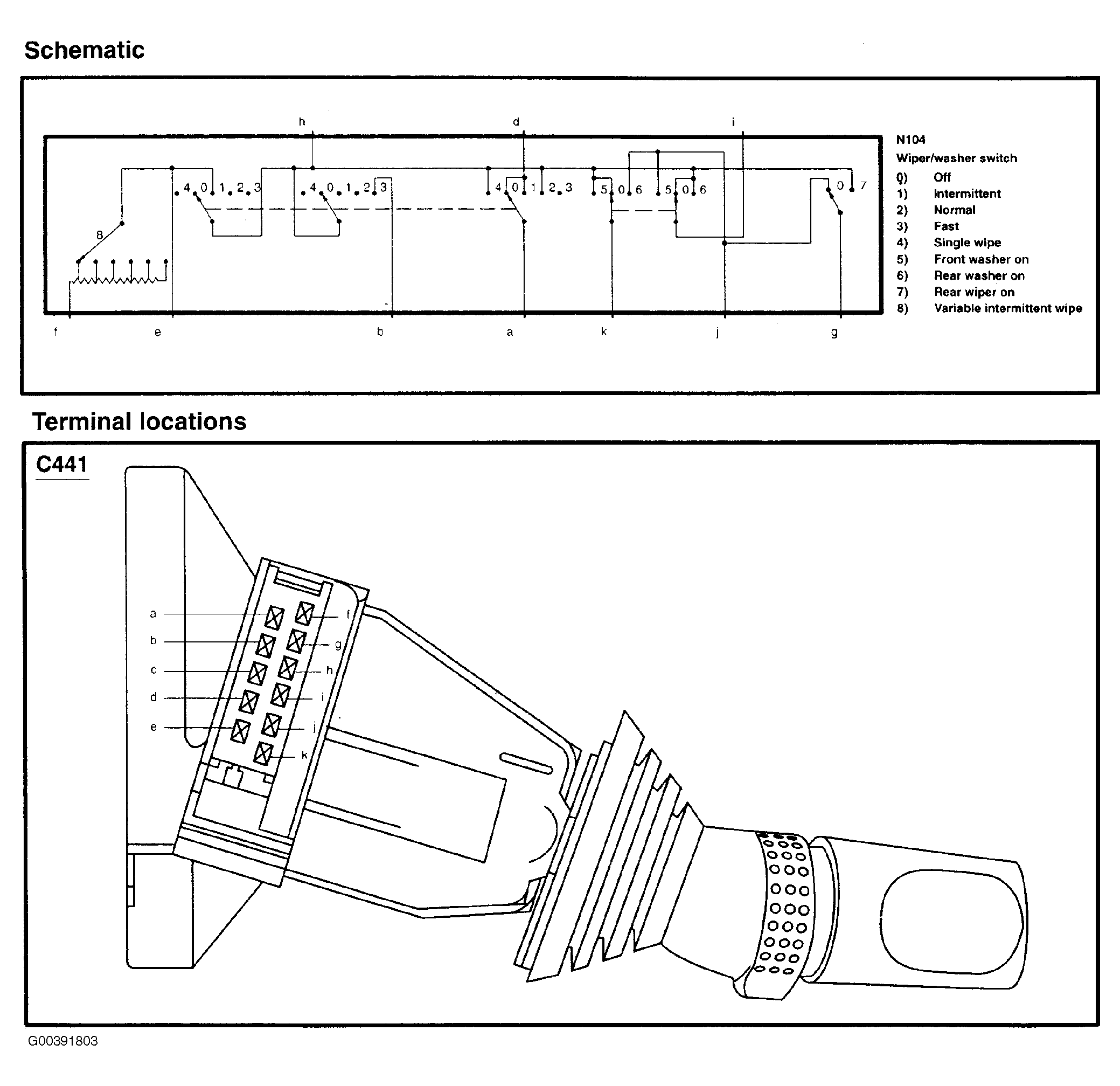

Fig 1: Testing Wiper/Washer Switch (1 Of 2)
G00391803Courtesy of FORD MOTOR CO.

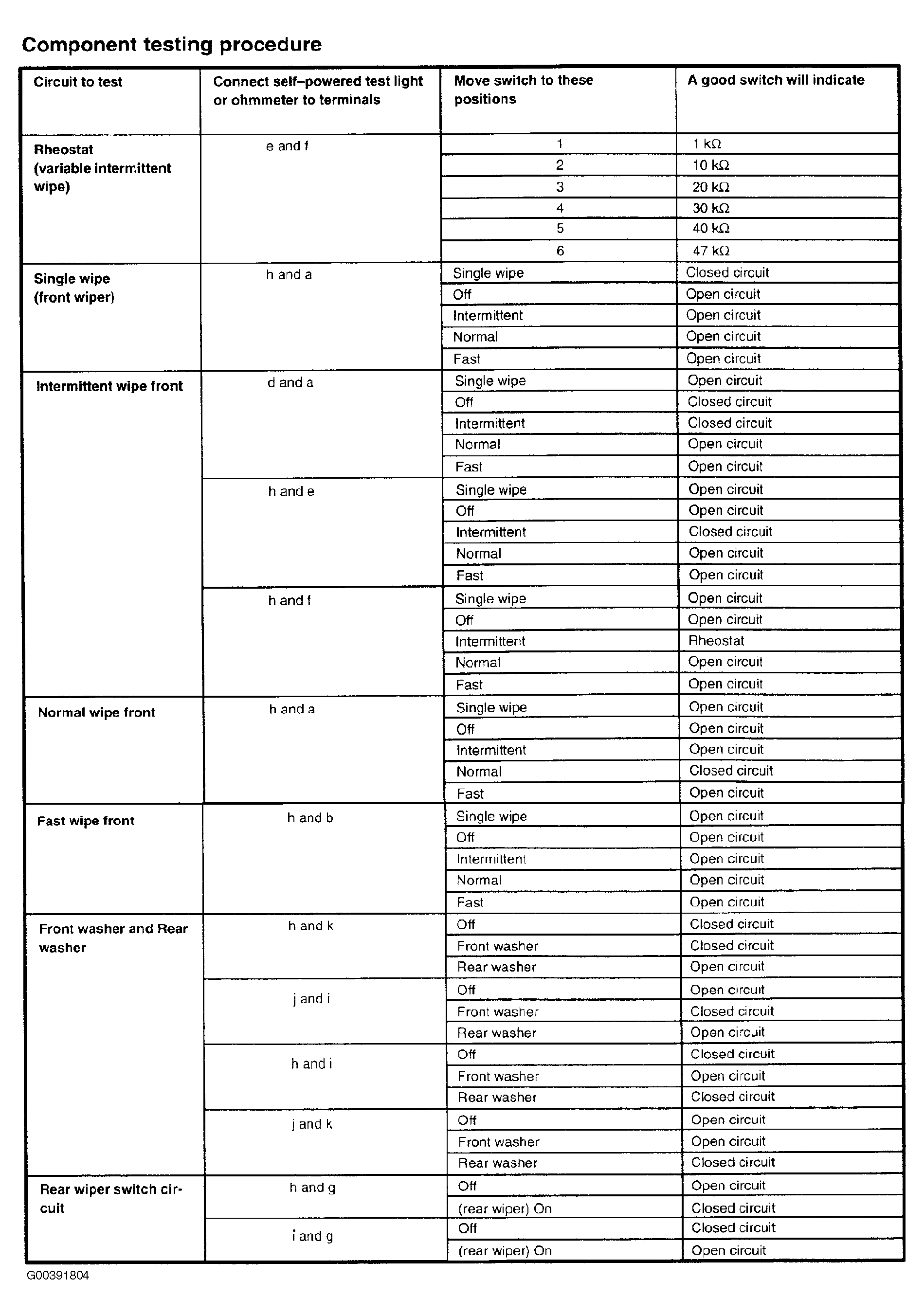

Fig 2: Testing Wiper/Washer Switch (2 Of 2)
G00391804Courtesy of FORD MOTOR CO.
