Speed Control Servo: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the speed control servo electrical connector.
- Depress the connector tab.
- Disconnect the connector.

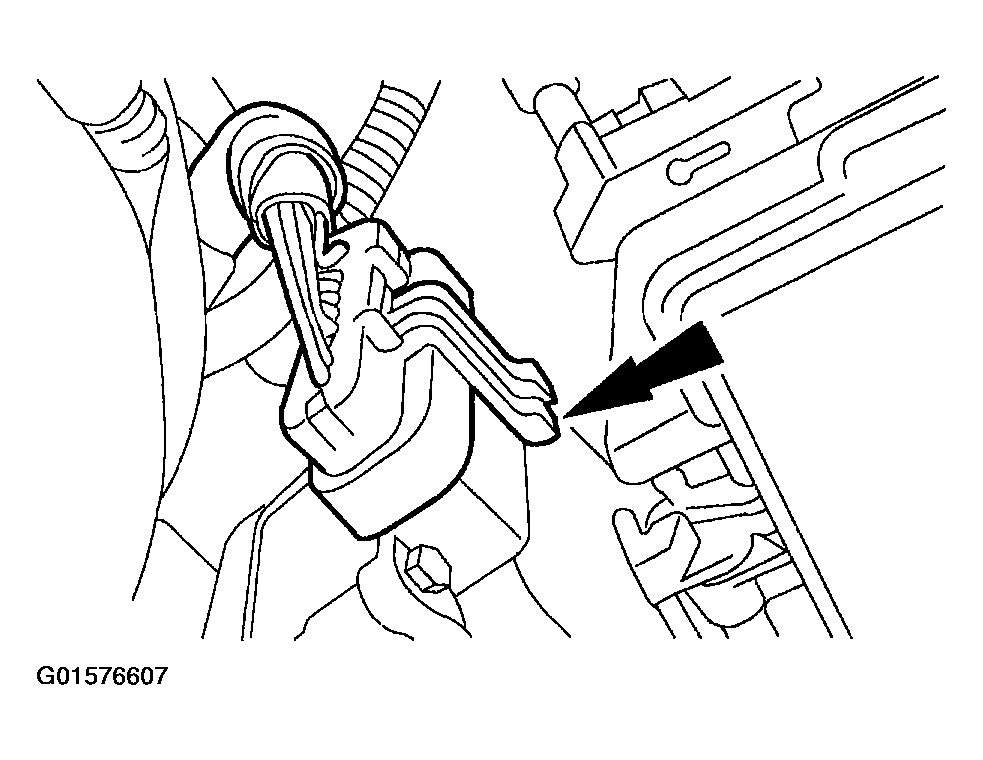

Fig 1: Identifying Speed Control Servo Electrical Connector
Courtesy of FORD MOTOR CO.
Release the speed control cable cap.
1. Depress the speed control cable cap retaining tab.
2. Rotate the speed control cable cap counterclockwise and pull the cable cap away from the servo housing.

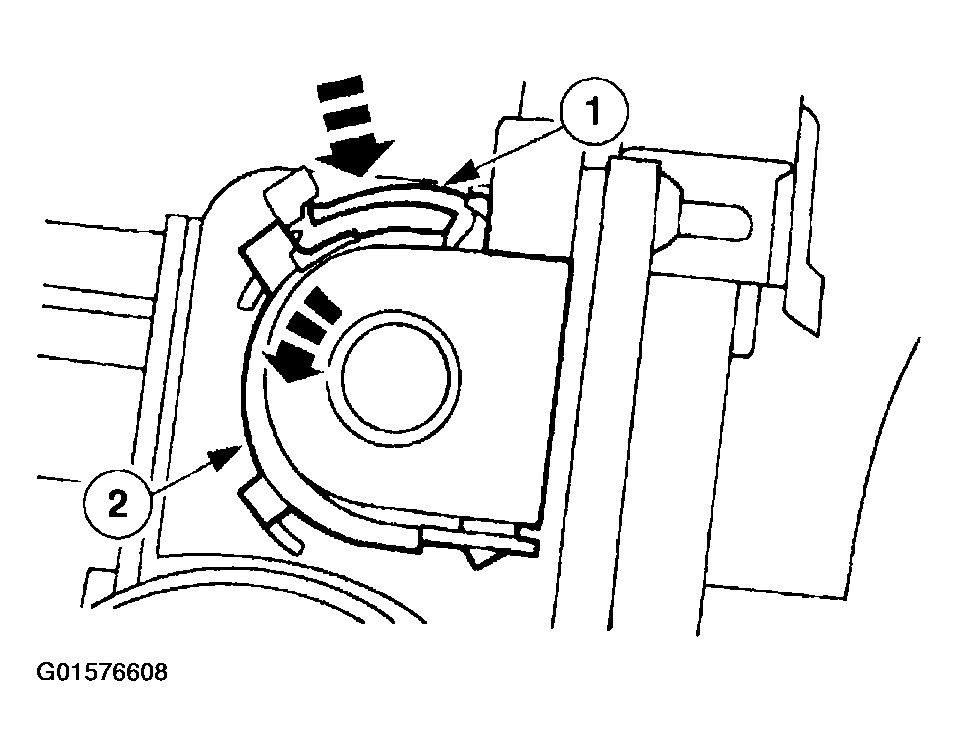

  Fig 2: Identifying Speed Control Cable Cap
  Courtesy of FORD MOTOR CO.
Disconnect the speed control cable.
1. Depress the spring retainer.
2. Slide the core wire end out of the speed control servo pulley and disconnect the speed control actuator cable.

  Fig 3: Identifying Speed Control Cable
  Courtesy of FORD MOTOR CO.
Remove the speed control servo.
1. Remove the nuts.
2. Remove the speed control servo.

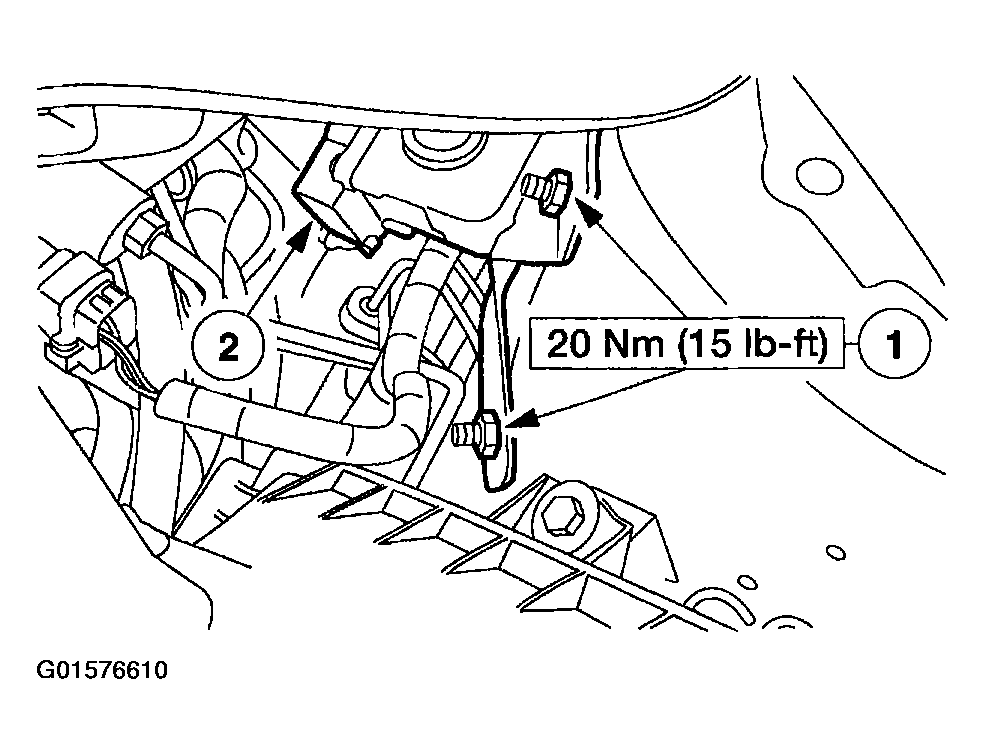

  Fig 4: Identifying Speed Control Servo
  Courtesy of FORD MOTOR CO.
Separate the bracket from the speed control servo.
1. Remove the screws.
2. Separate the bracket from the speed control servo.

  Fig 5: Identifying Bracket Of Speed Control Servo
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
