Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the catalyst monitor sensor electrical connector.

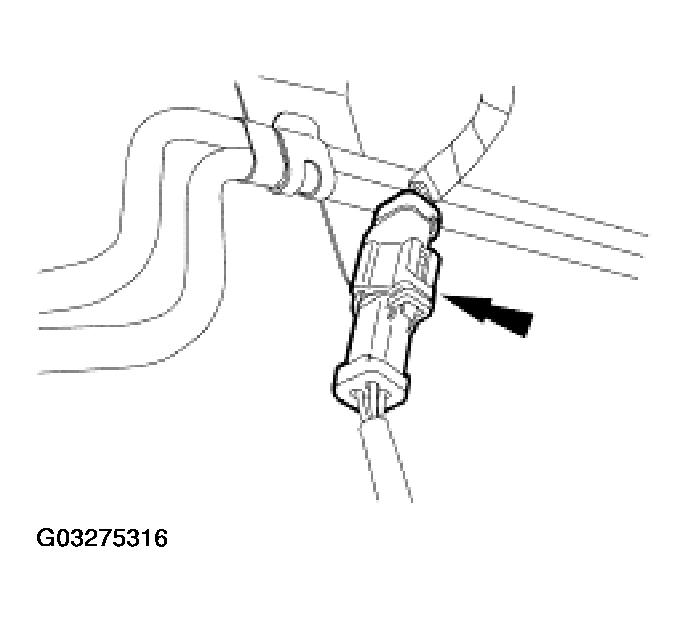

Fig 1: Disconnecting Catalyst Monitor Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: If necessary, lubricate the catalyst monitor sensor with lock lubricant to assist in removal.

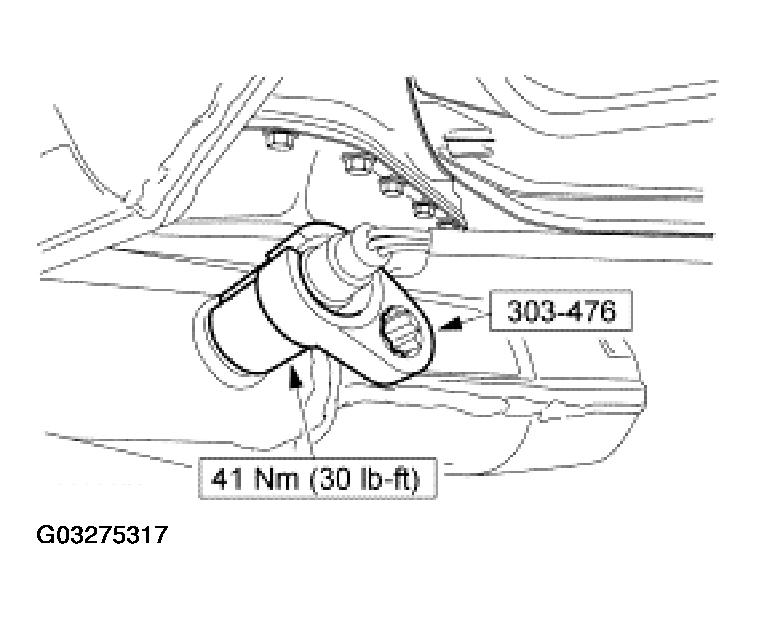

Fig 2: Removing Catalyst Monitor Sensor

Courtesy of FORD MOTOR CO.

Using the special tool, remove the catalyst monitor sensor.

NOTE: Apply a light coat of anti-seize lubricant to the threads of the catalyst monitor sensor.

To install, reverse the removal procedure.
