Steering System

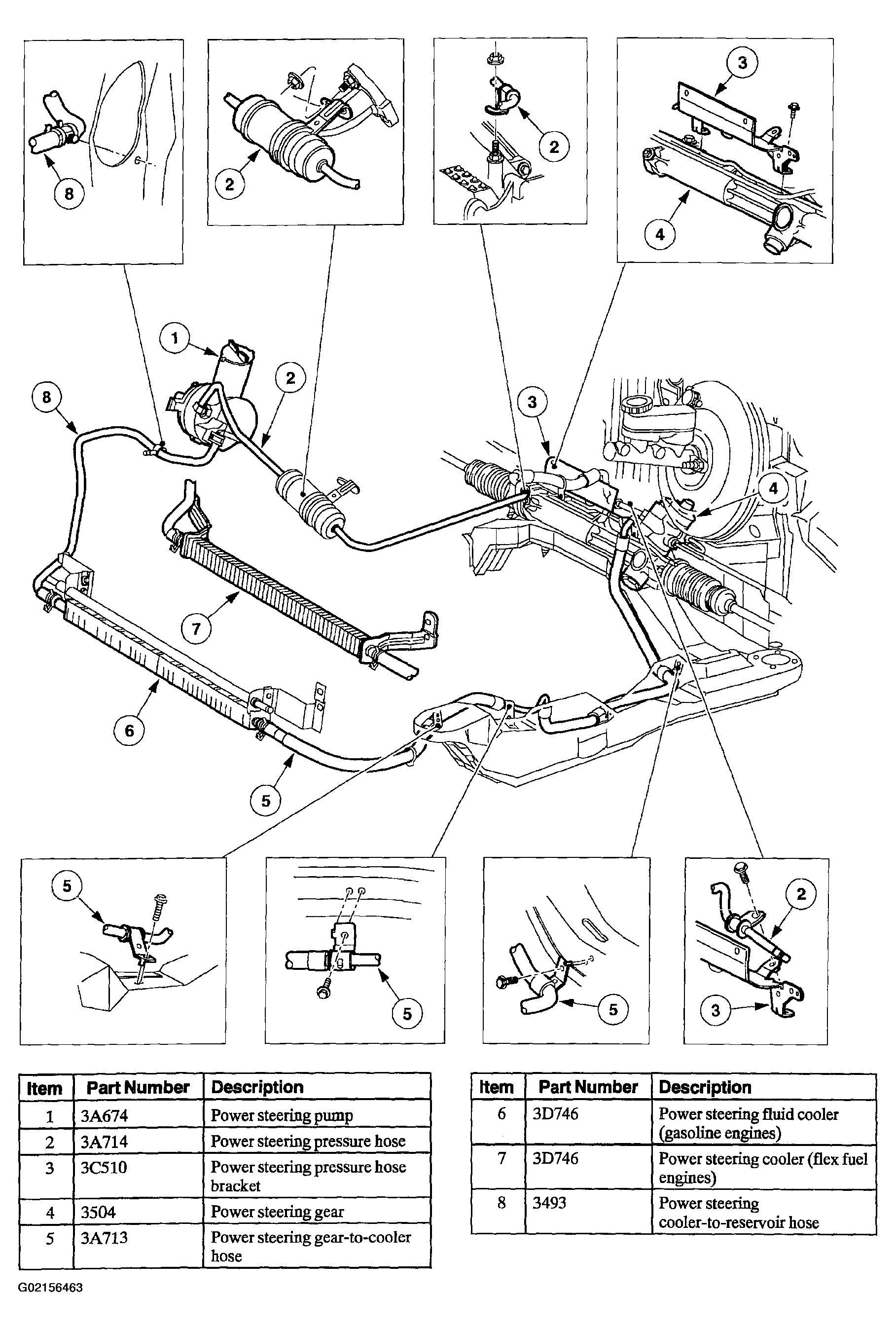

Fig 1: Identifying Steering System Components (3.0L 2V Engine, CII Pump)
G02156463Courtesy of FORD MOTOR CO.

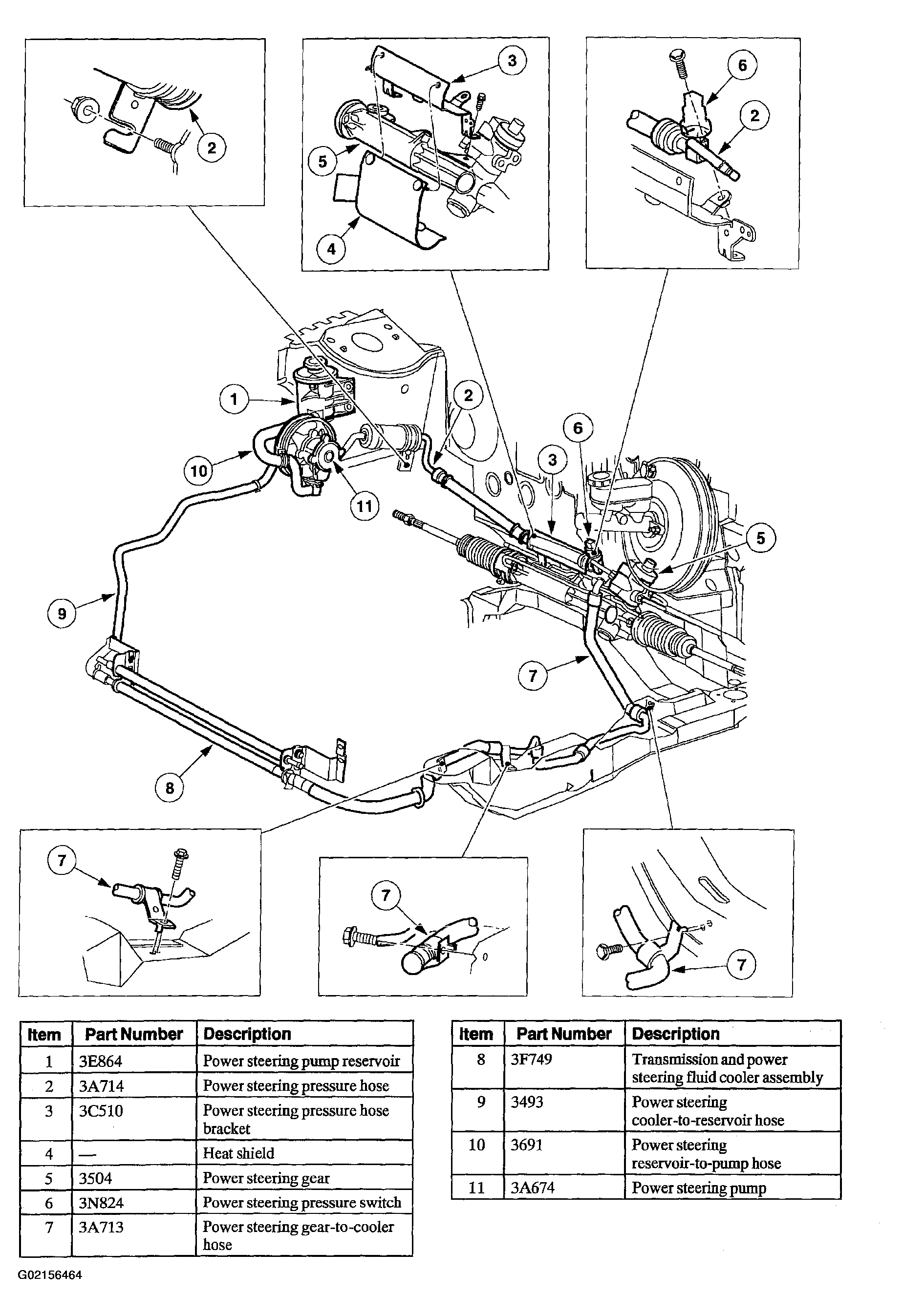

Fig 2: Identifying Steering System Components (3.0L 4V Engine, CIII Pump)
G02156464Courtesy of FORD MOTOR CO.
