Symptom Chart

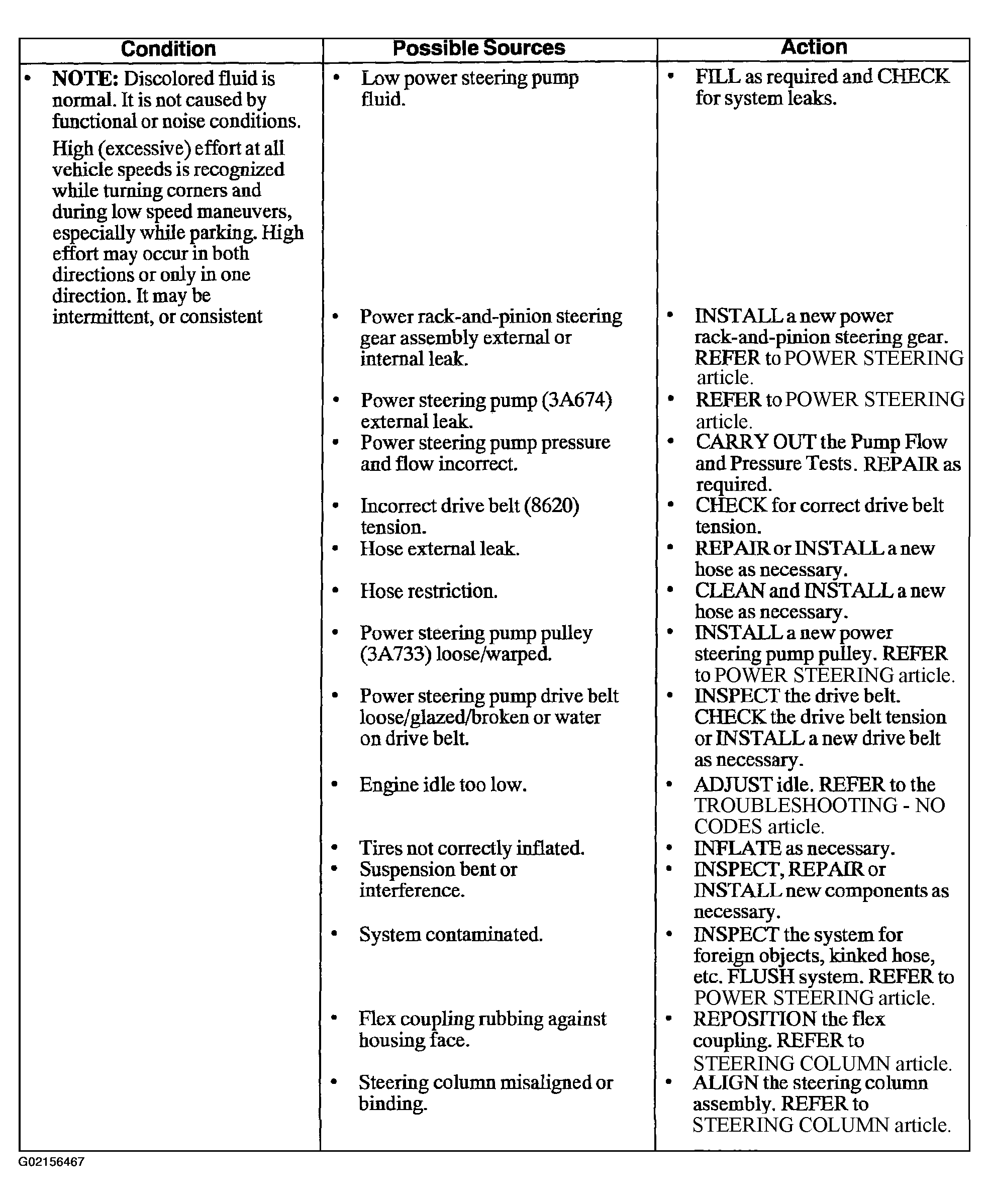

Fig 1: Symptom Chart (1 Of 12)

G02156467

Courtesy of FORD MOTOR CO.

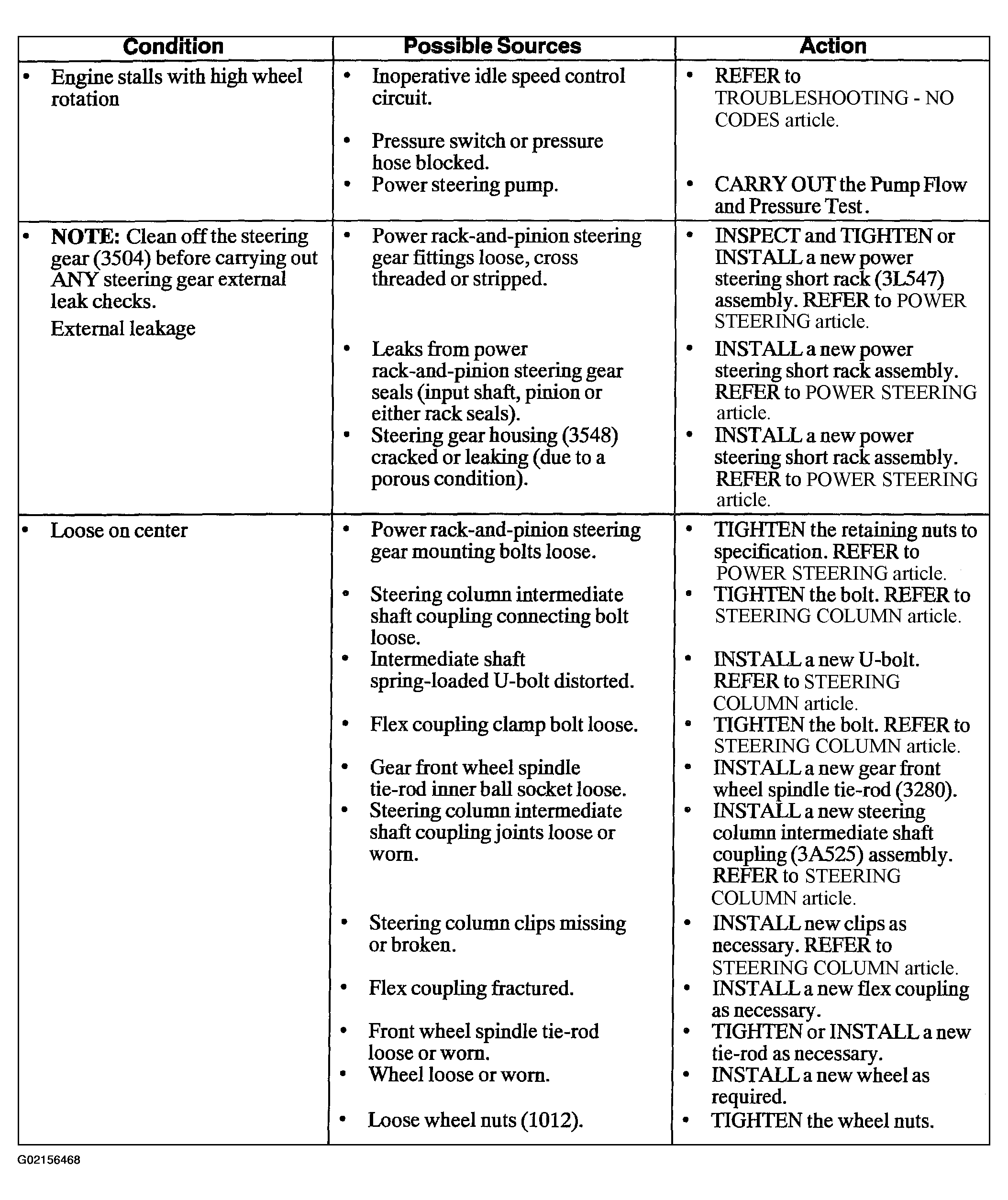

Fig 2: Symptom Chart (2 Of 12)

G02156468

Courtesy of FORD MOTOR CO.

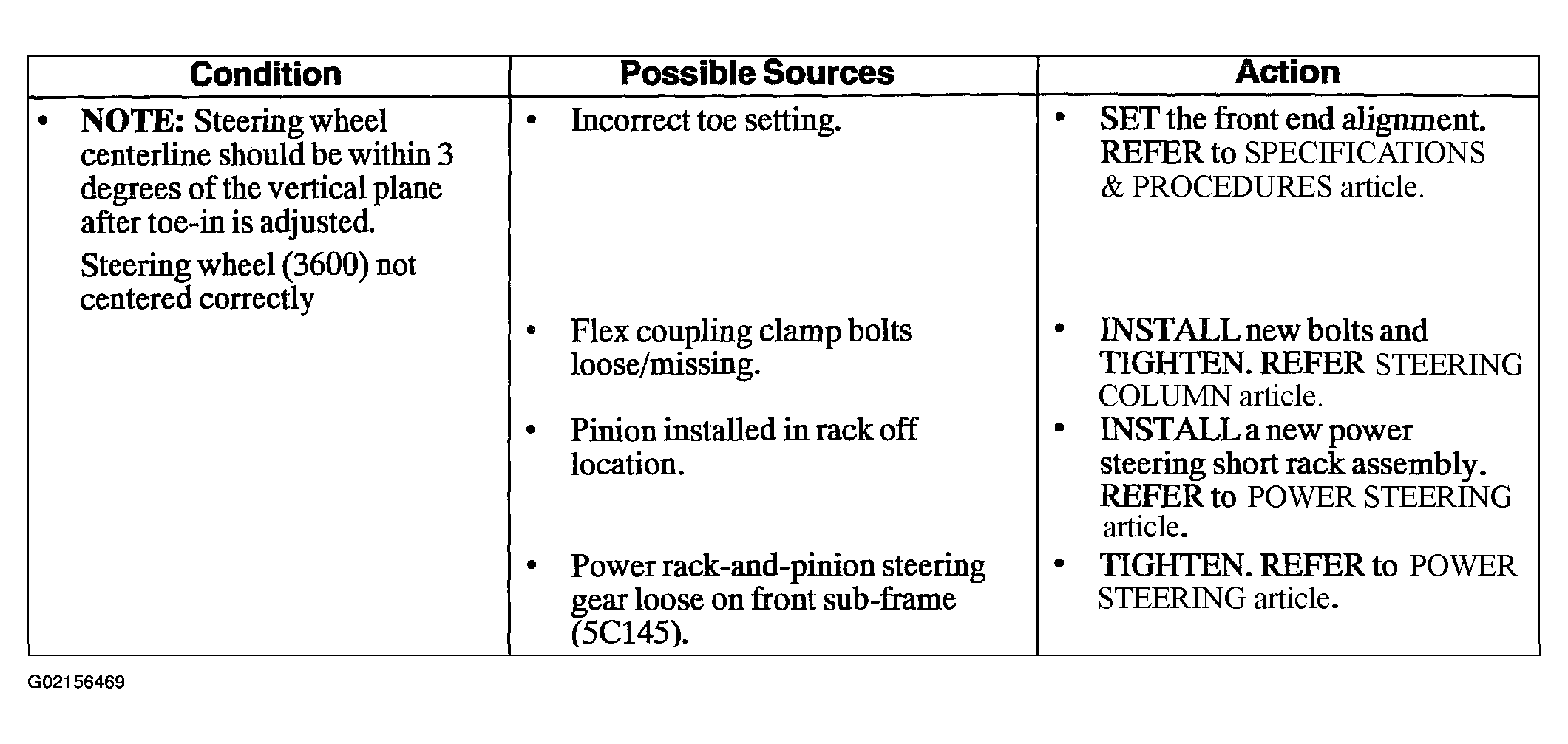

Fig 3: Symptom Chart (3 Of 12)

G02156469

Courtesy of FORD MOTOR CO.

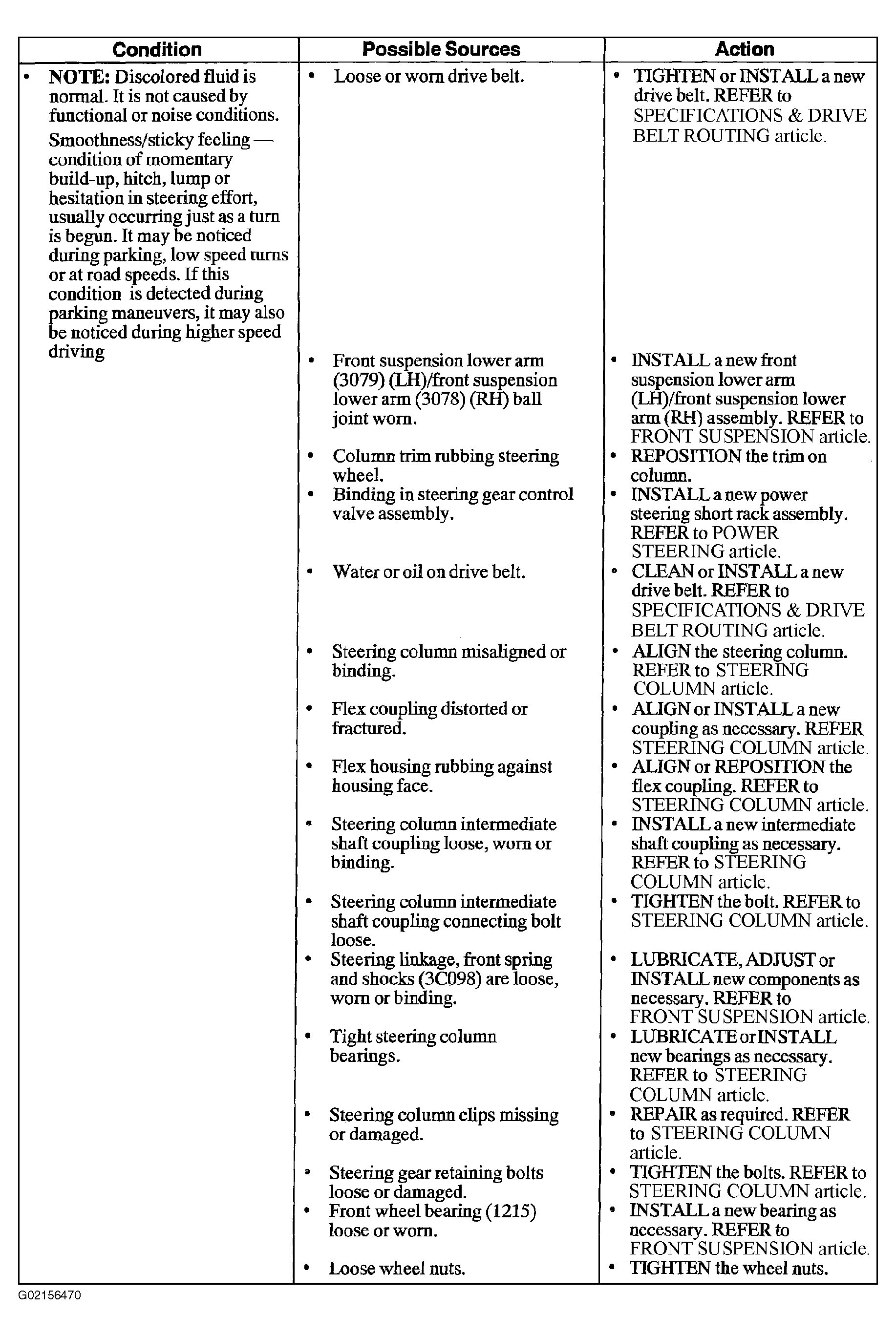

Fig 4: Symptom Chart (4 Of 12)

G02156470

Courtesy of FORD MOTOR CO.

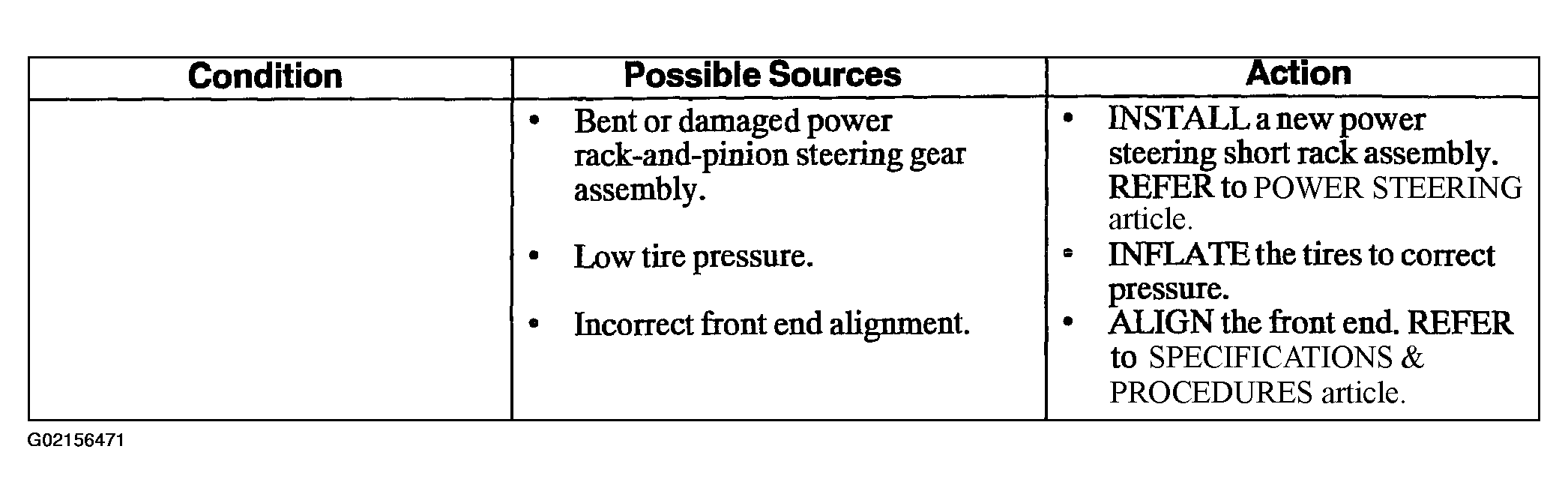

Fig 5: Symptom Chart (5 Of 12)

G02156471

Courtesy of FORD MOTOR CO.

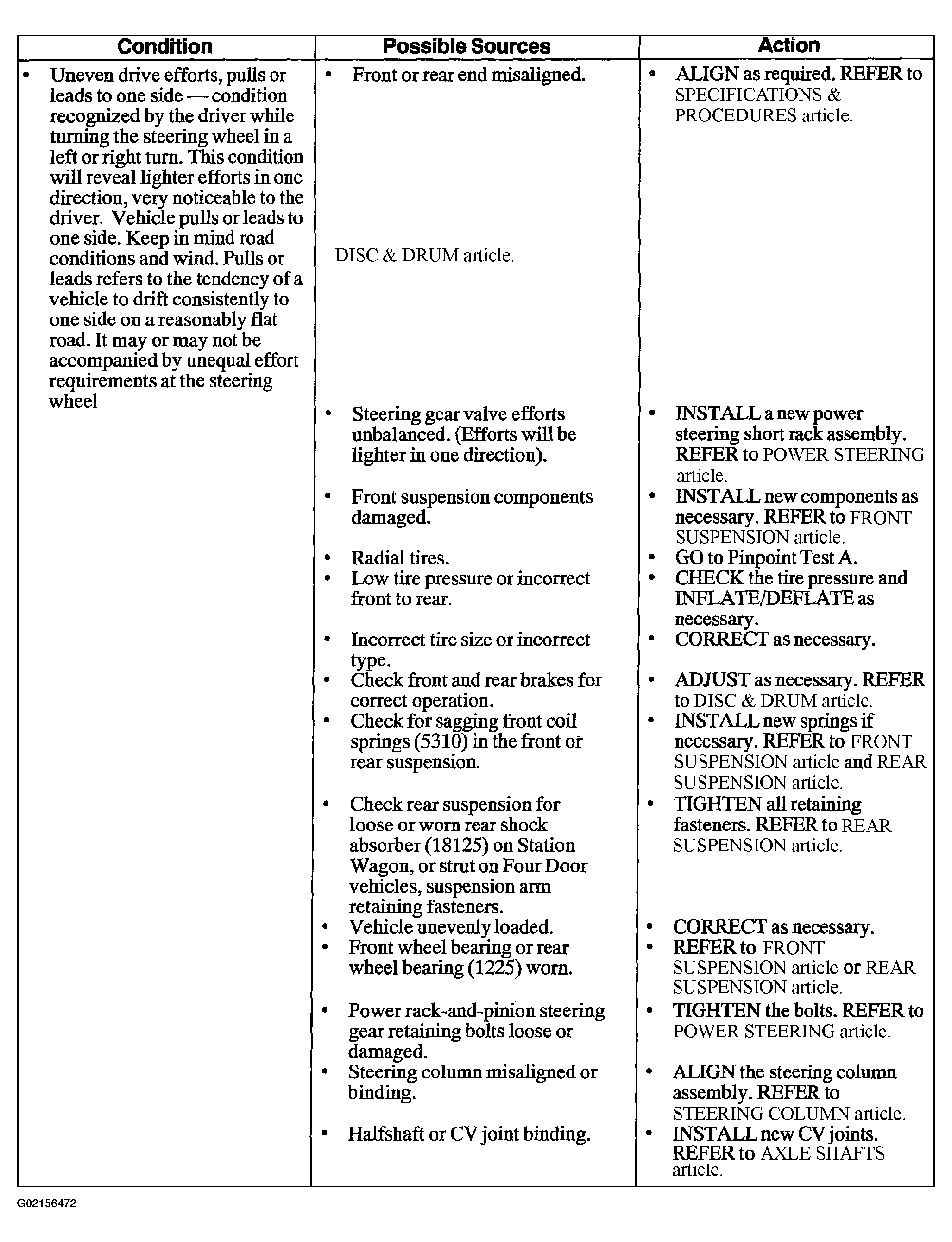

Fig 6: Symptom Chart (6 Of 12)

G02156472

Courtesy of FORD MOTOR CO.

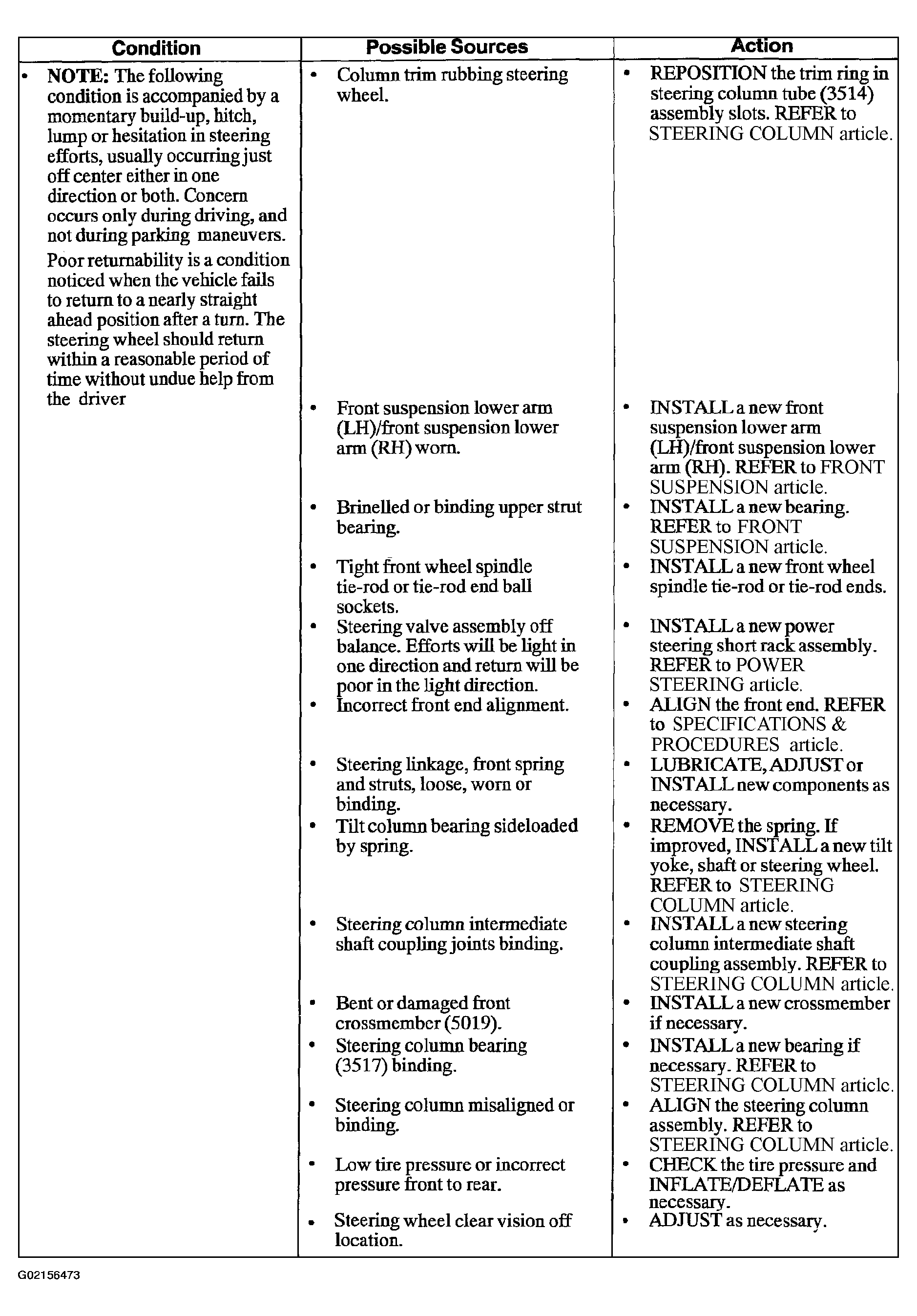

Fig 7: Symptom Chart (7 Of 12)

G02156473

Courtesy of FORD MOTOR CO.

Fig 8: Symptom Chart (8 Of 12)

G02156474

Courtesy of FORD MOTOR CO.

Fig 9: Symptom Chart (9 Of 12)

G02156475

Courtesy of FORD MOTOR CO.

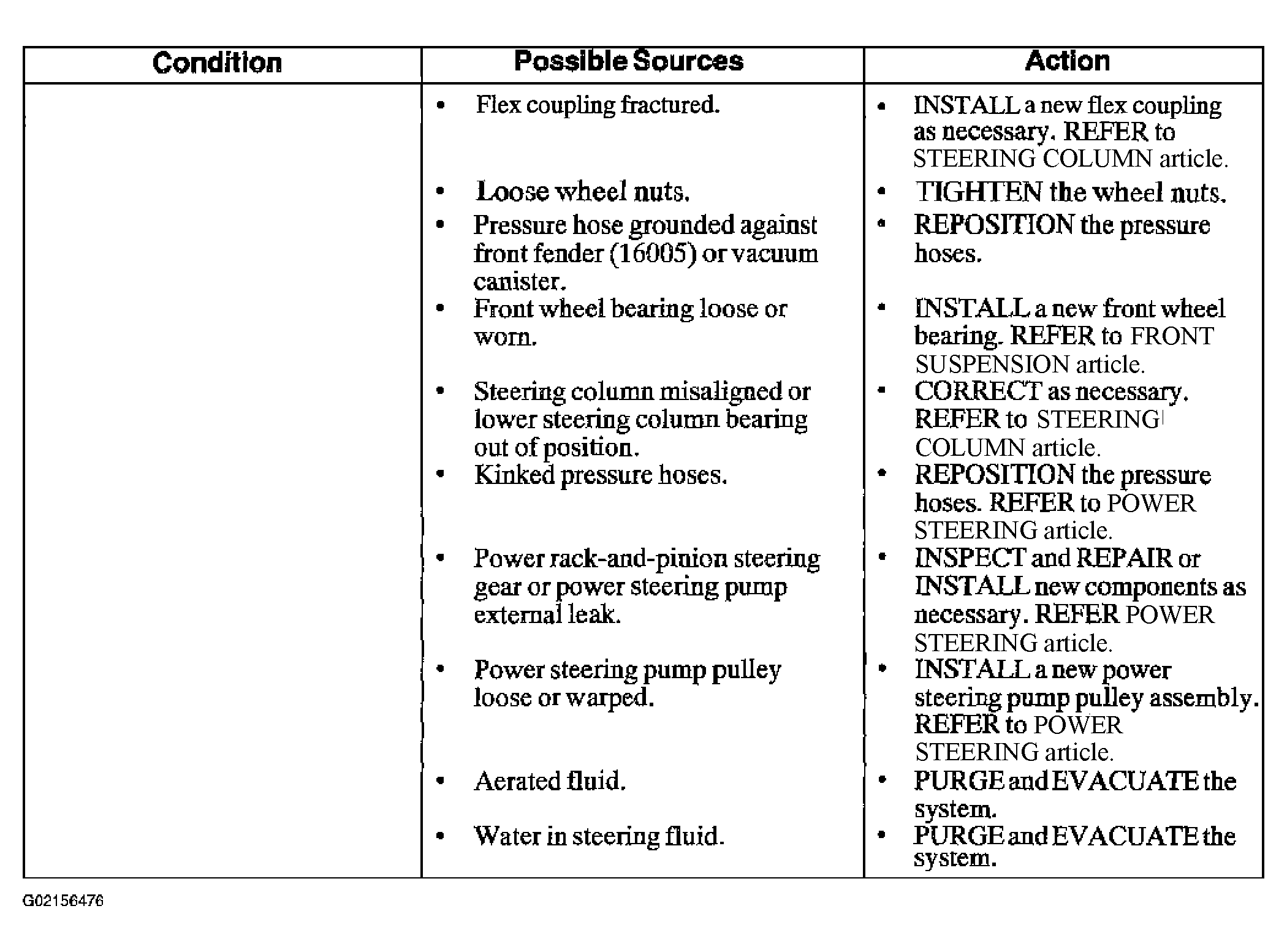

Fig 10: Symptom Chart (10 Of 12)

G02156476

Courtesy of FORD MOTOR CO.

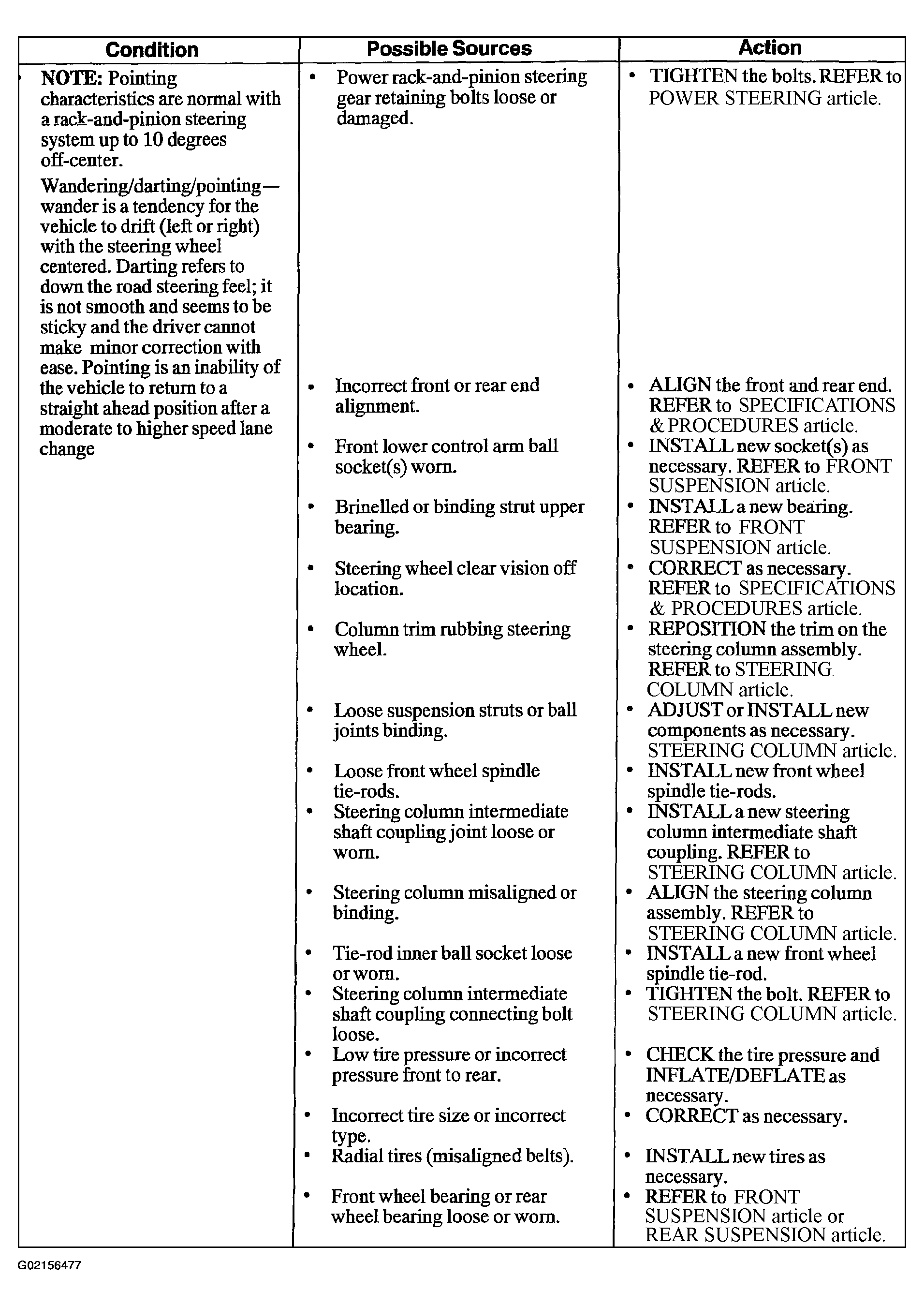

Fig 11: Symptom Chart (11 Of 12)

G02156477

Courtesy of FORD MOTOR CO.

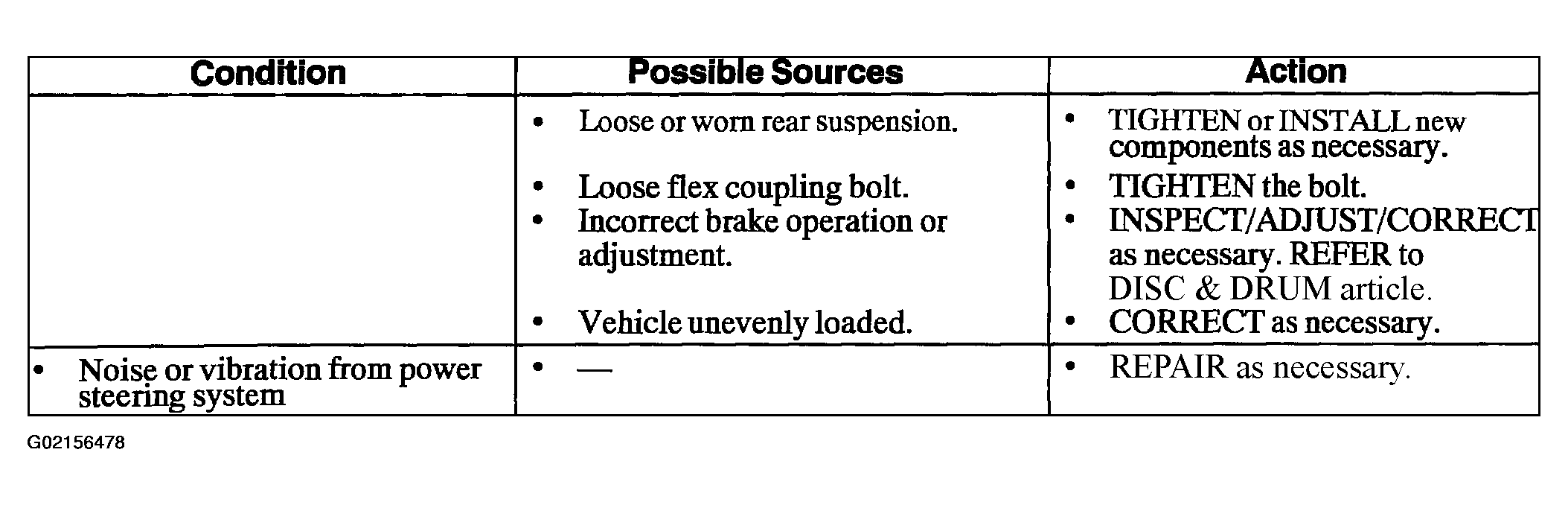

Fig 12: Symptom Chart (12 Of 12)

G02156478

Courtesy of FORD MOTOR CO.
