Removal and Installation

  1. Remove the integrated control panel (18C858). Refer to Climate Control Assembly .
  2. Remove the knob (18519).

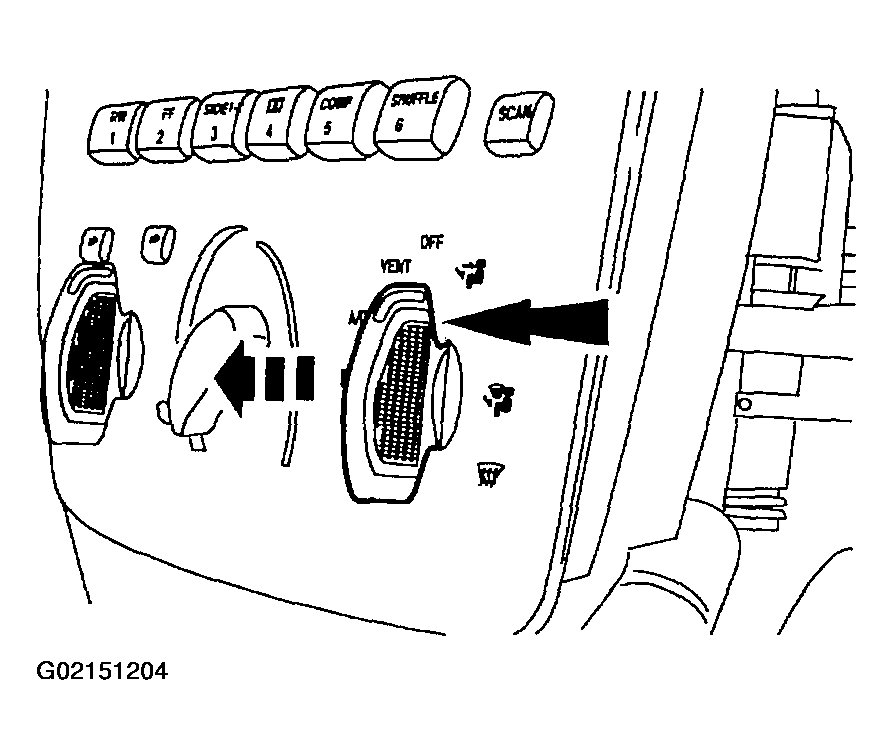

    Fig 1: Removing Knob
    G02151204Courtesy of FORD MOTOR CO.
  3. Disengage the retaining tabs. Remove the function selector switch (19B888).

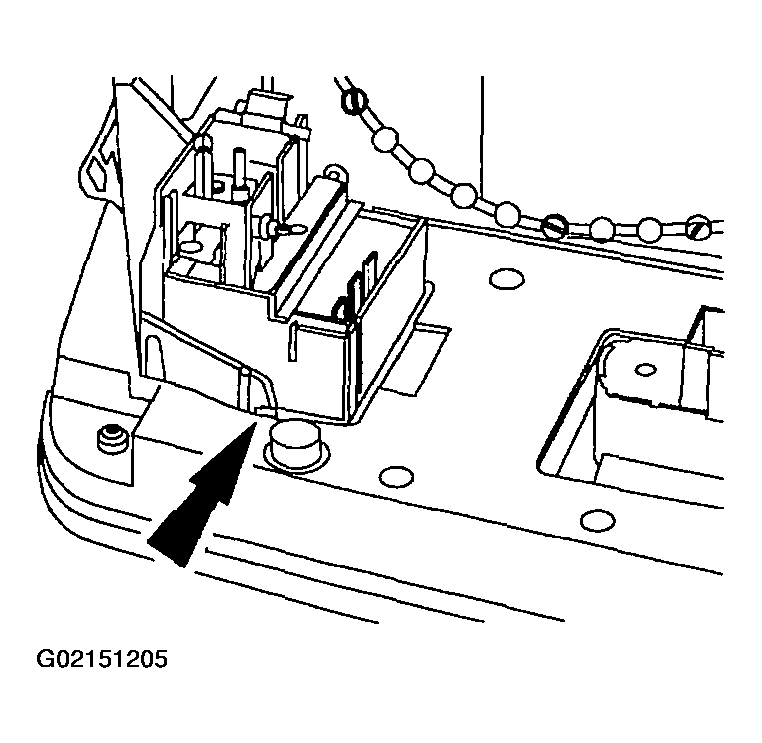

    Fig 2: Removing Function Selector Switch
    G02151205Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
