Switch - Power Seat Control: Removal

  1. Disconnect the battery ground cable.
  2. Remove the power seat switch buttons.
    Fig 1: Removing Power Seat Switch Buttons
    G03413332Courtesy of FORD MOTOR CO.
  3. Remove the outboard seat cushion trim cover.
    1. Remove the screws.
    2. Remove the outboard seat cushion trim cover.
      Fig 2: Removing Outboard Seat Cushion Trim Cover
      G03413333Courtesy of FORD MOTOR CO.
  4. Remove the power seat switch.
    1. Disconnect the electrical connector.
    2. Remove the screws.
    3. Remove the power seat switch.

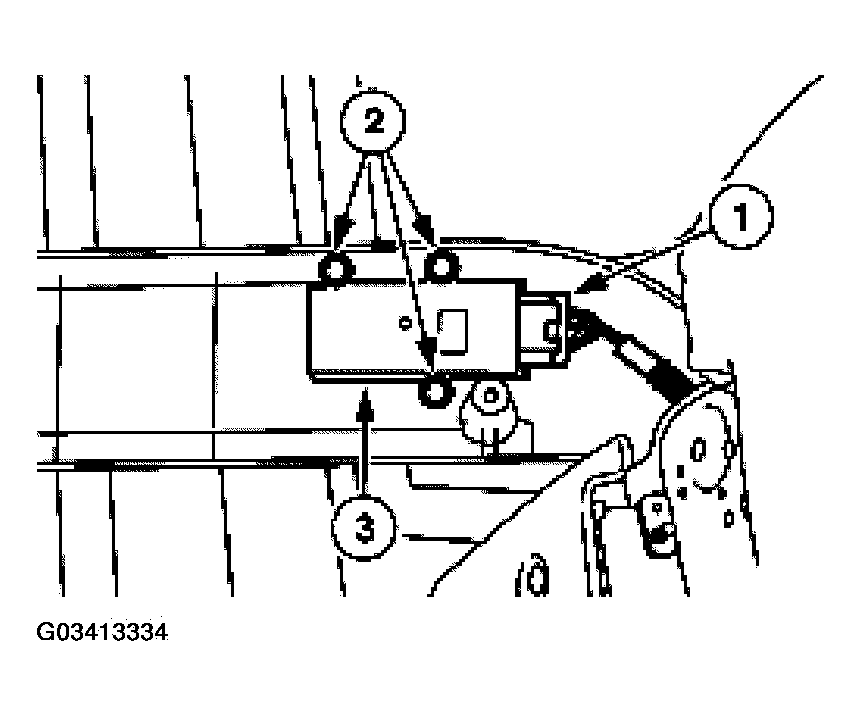

      Fig 3: Removing Power Seat Switch
      G03413334Courtesy of FORD MOTOR CO.
