Ignition Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Ignition Switch

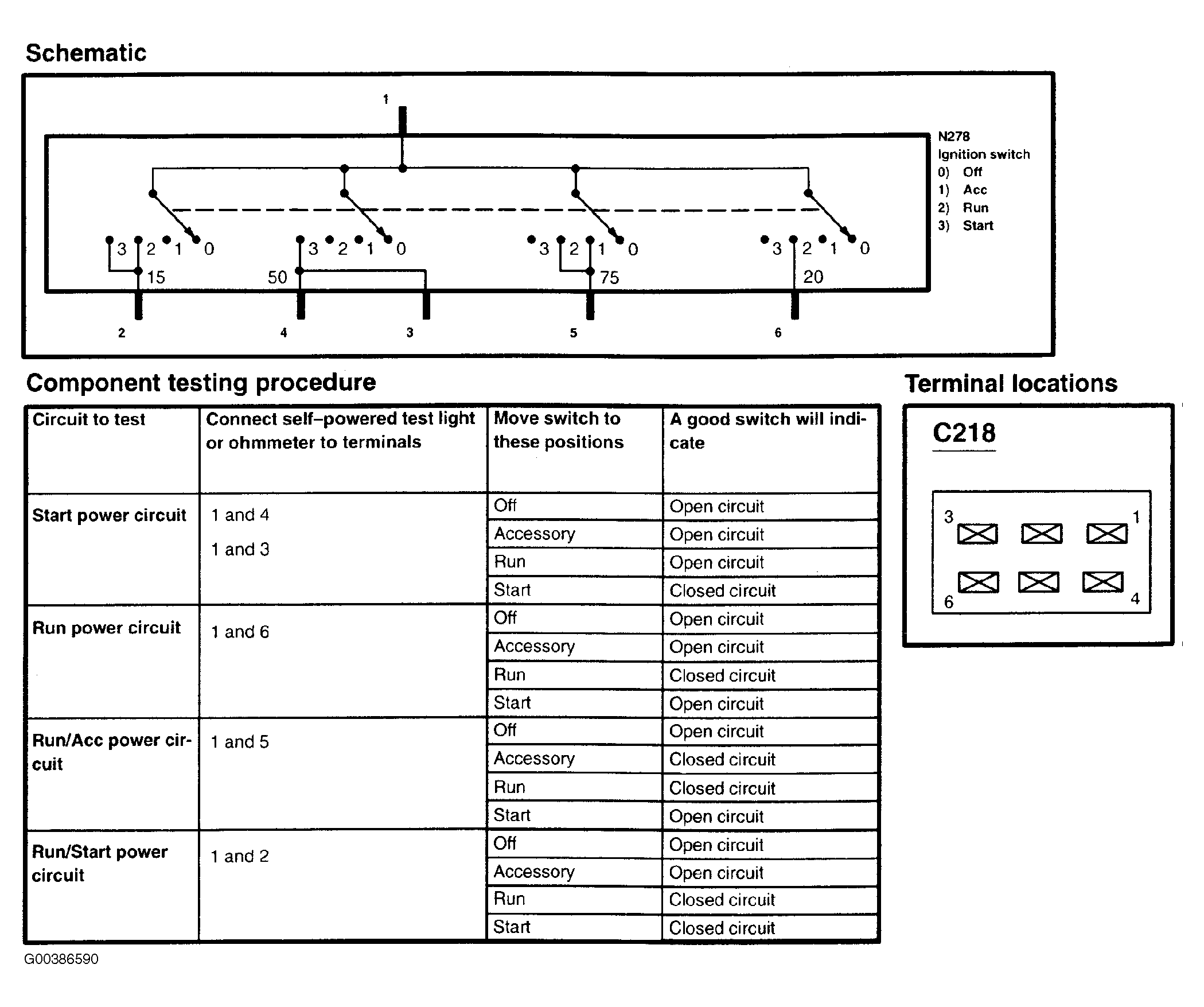

Fig 1: Testing Ignition Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
