Connecting Rod - Large End Bore

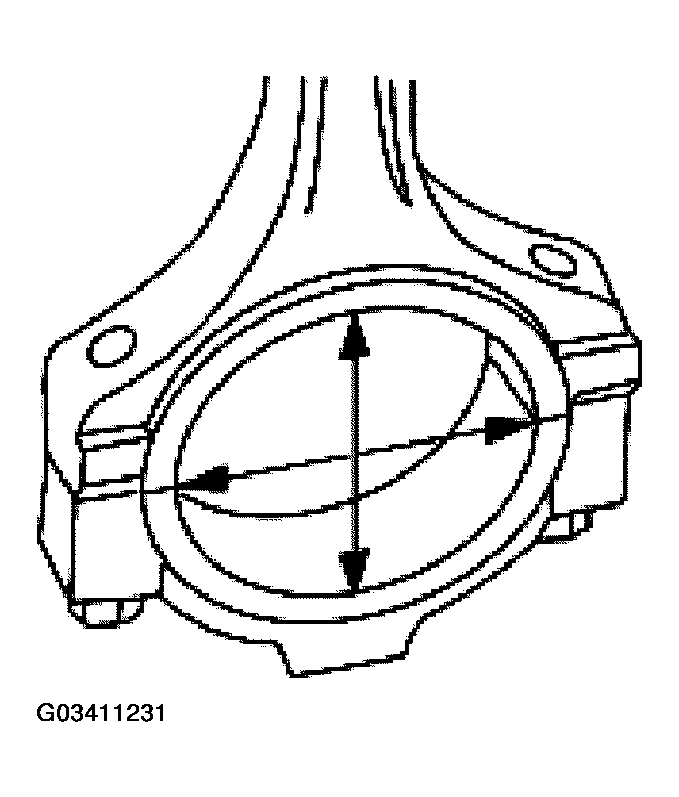

- Measure the bore in two directions. The difference is the connecting rod bore out-of -round. Verify the out -of-round is within specification.
- For additional information, refer to SPECIFICATIONS .
- If out of specification, install new components as necessary. Refer to 3.3L V6 for the procedure.
