Connecting Rod - Twist

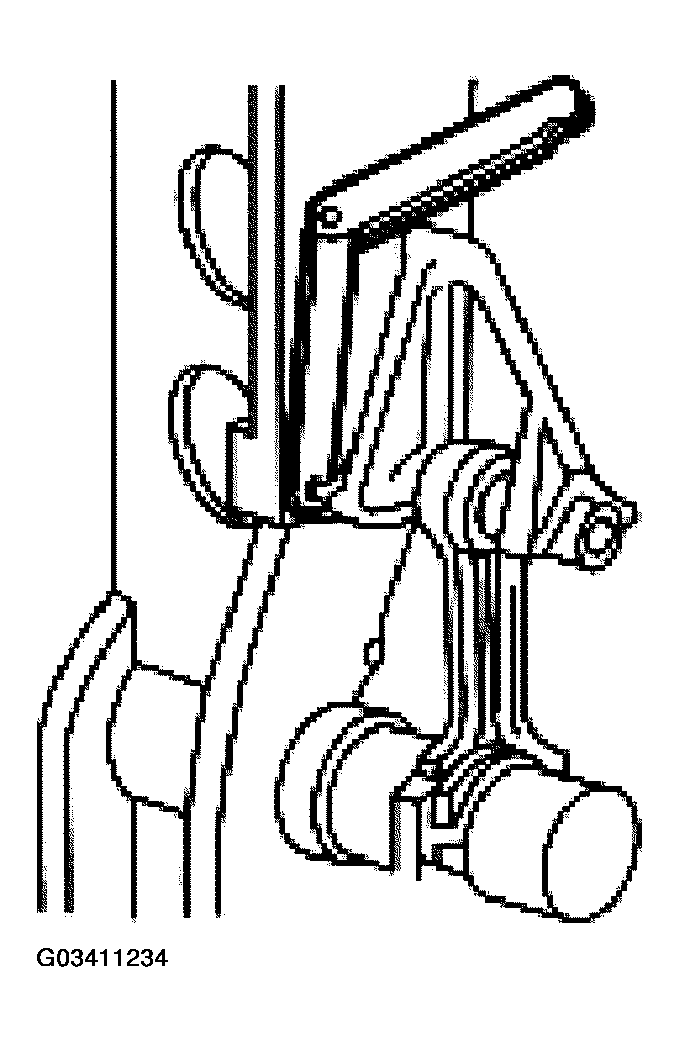

- Measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the measurement is within specification.
- For additional information, refer to SPECIFICATIONS .
- If out of specification, install new components as necessary. Refer to 3.3L V6 for the procedure.
