Special Tool(s)

Fig 1: Identifying Valve Spring Strength Special Tool
G03411248Courtesy of FORD MOTOR CO.
  1. Use a Valve/Clutch Spring Tester to check the valve spring for correct strength at the specified valve spring length.
    • For additional information, refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary. Refer to 3.3L V6 for the procedure.

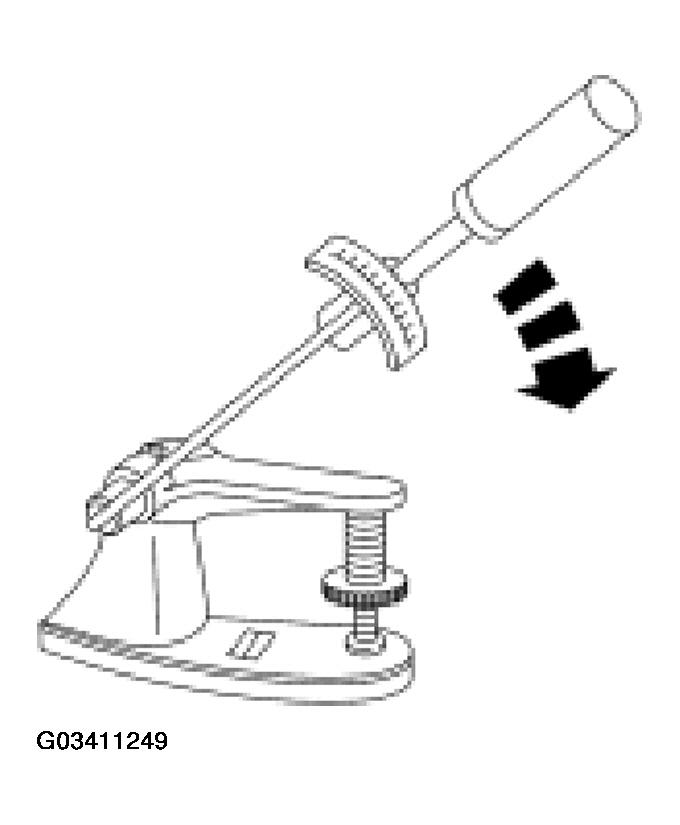

      Fig 2: Checking Valve Spring Using Clutch Spring Tester
      G03411249Courtesy of FORD MOTOR CO.
