Blower Motor Resistor: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

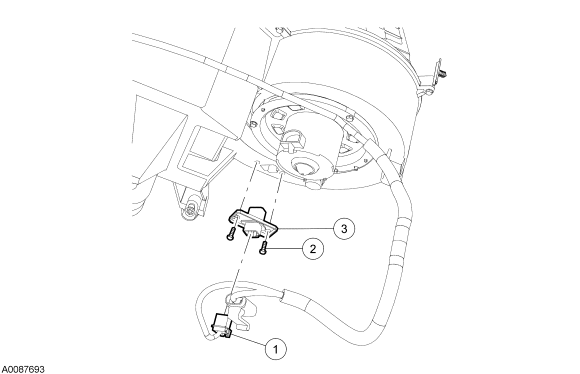

Fig 1: Exploded View Of Blower Motor Resistor

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Blower motor resistor electrical connector
2	-	Blower motor resistor screws (2 required)
3	19A706	Blower motor resistor
