General Service Conditions
WARNING: This page is about a different car, the 2002 Saturn LW300, 2002 Saturn LW200, 2002 Saturn L300, 2002 Saturn L200, and 2002 Saturn L100. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The suction pipe will be cold and the discharge pipe will be hot.
NOTE:

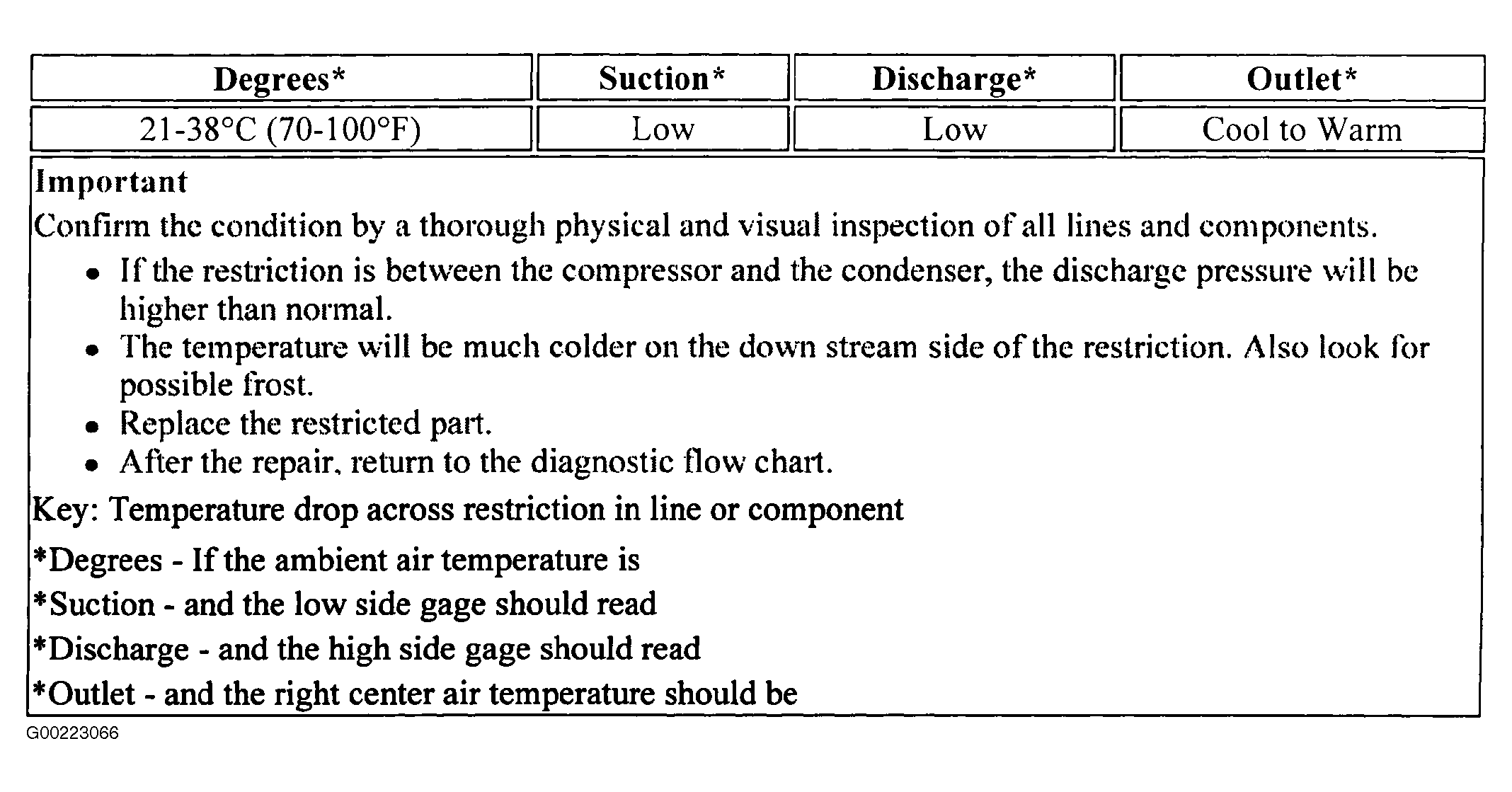

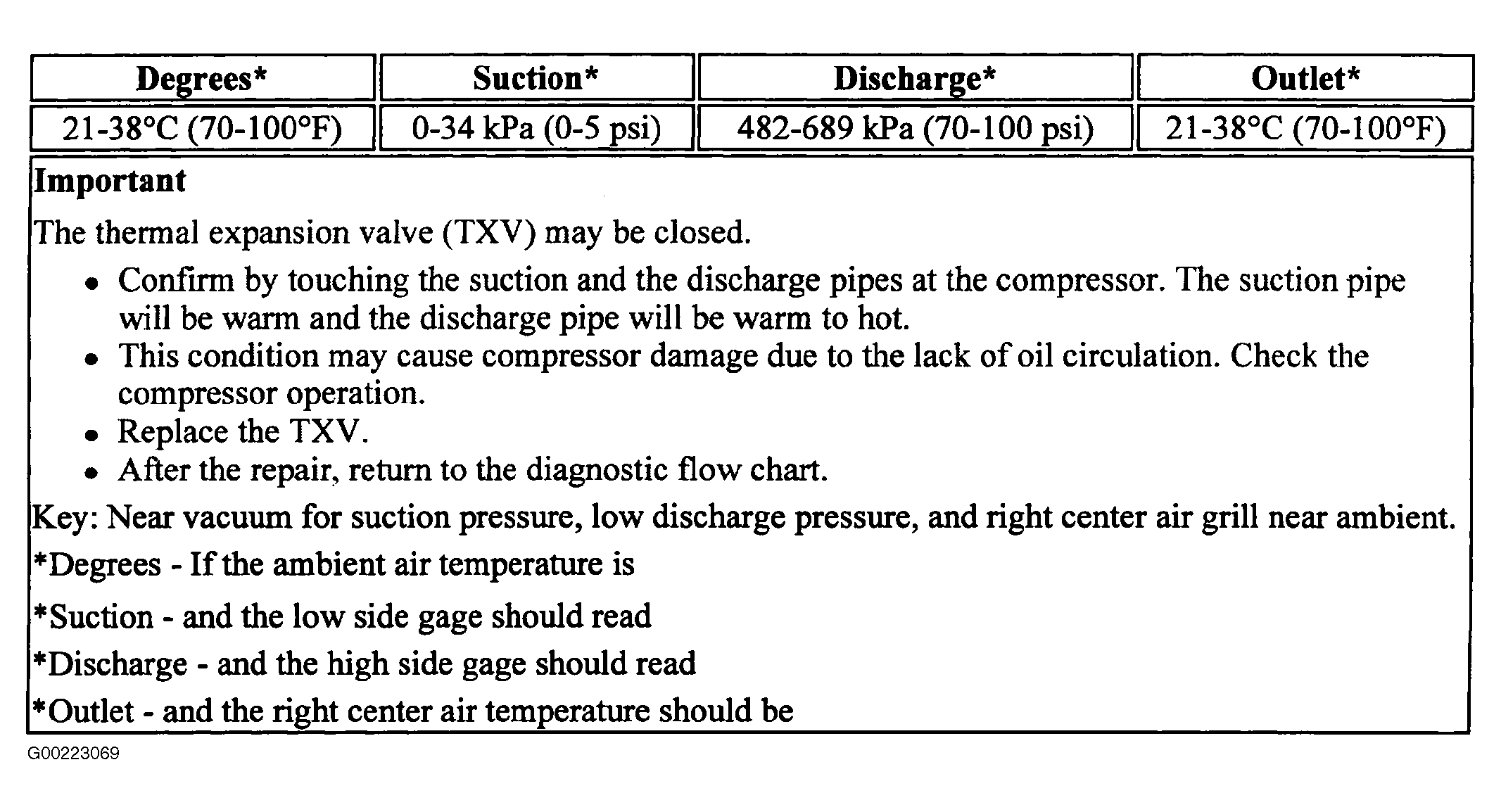

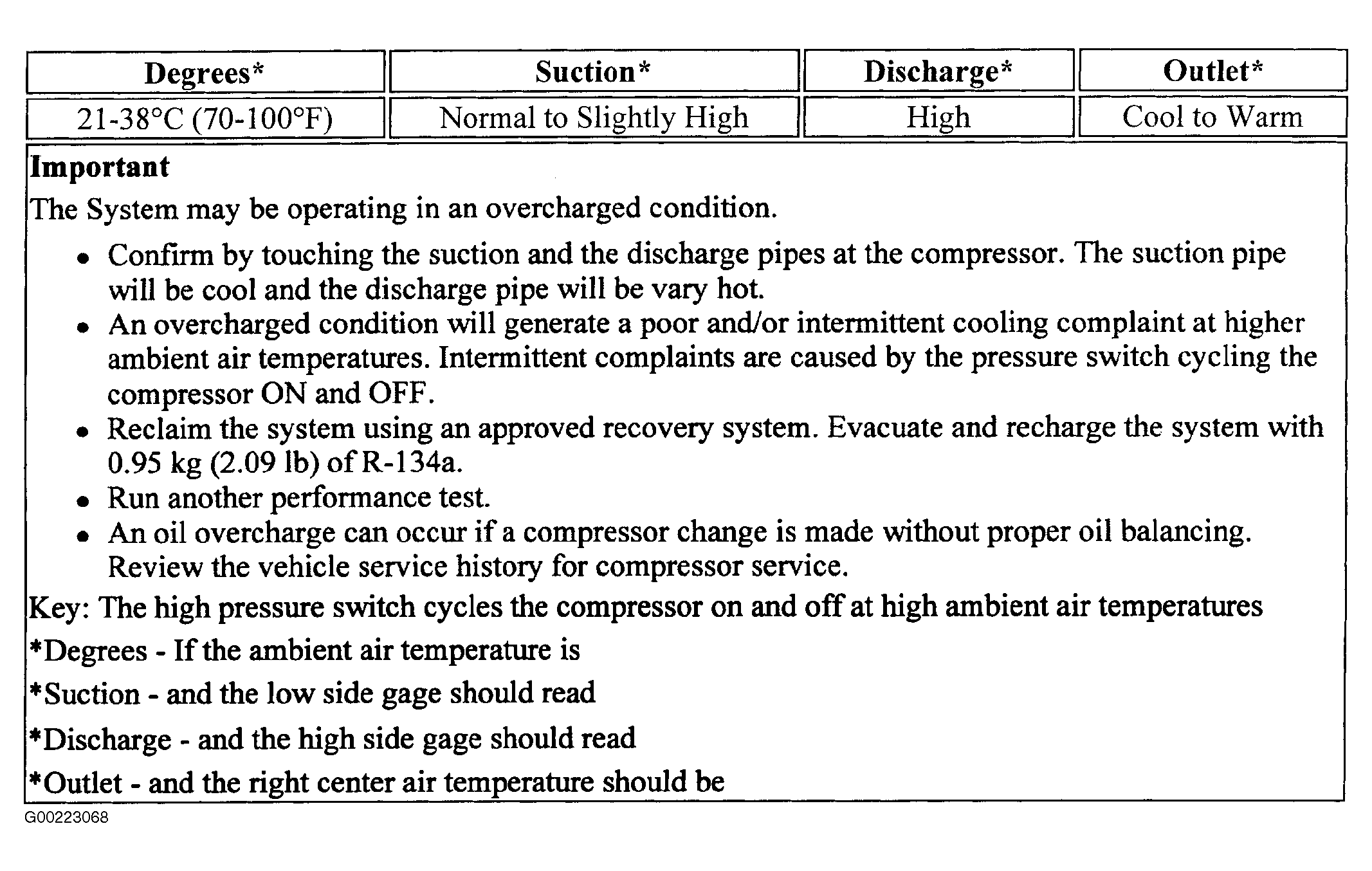

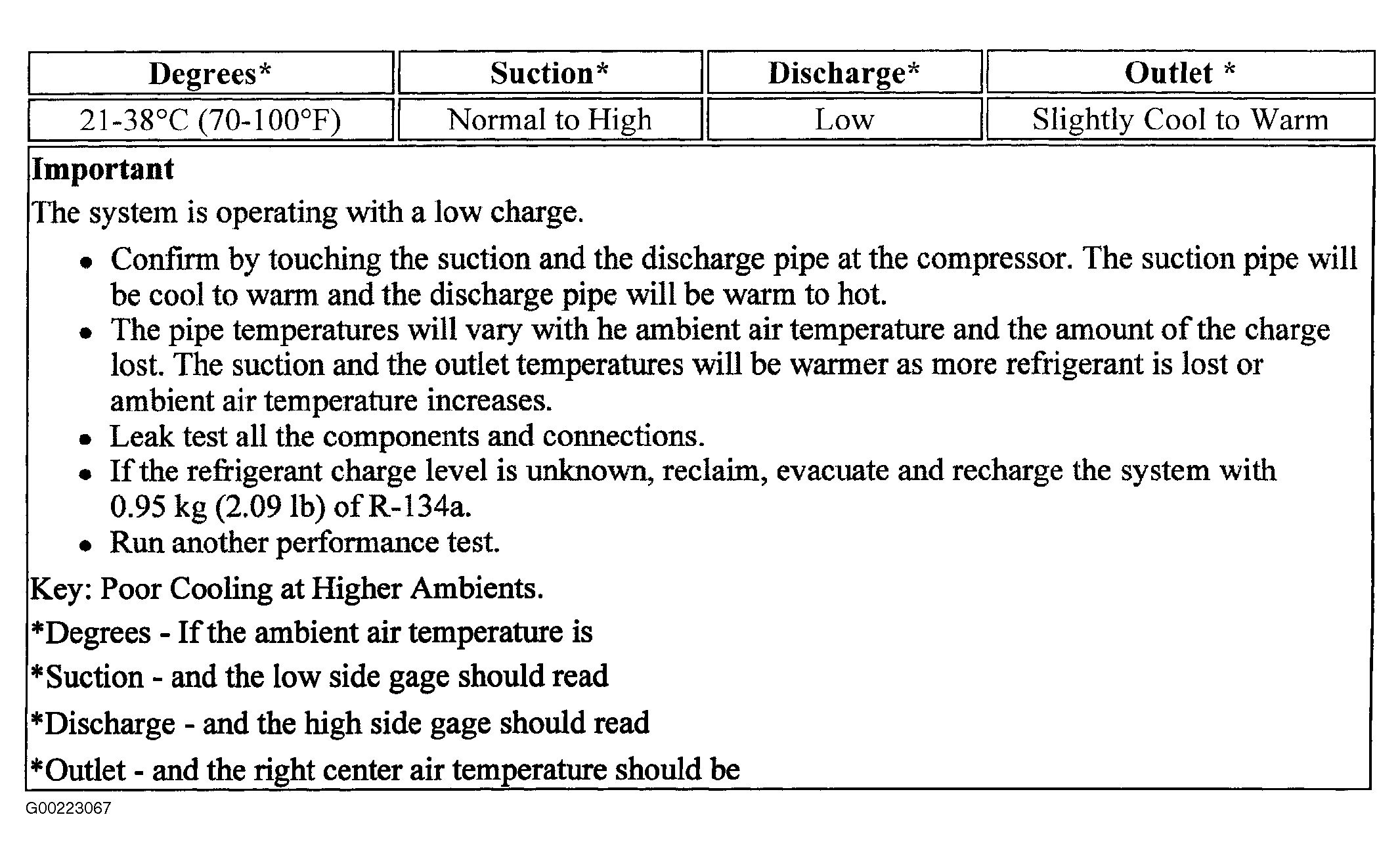

Statements in the following table illustrations contain additional information to help you confirm your diagnosis and lead you to a corrective action. For 2.2L models, see Fig 1
-Fig 4

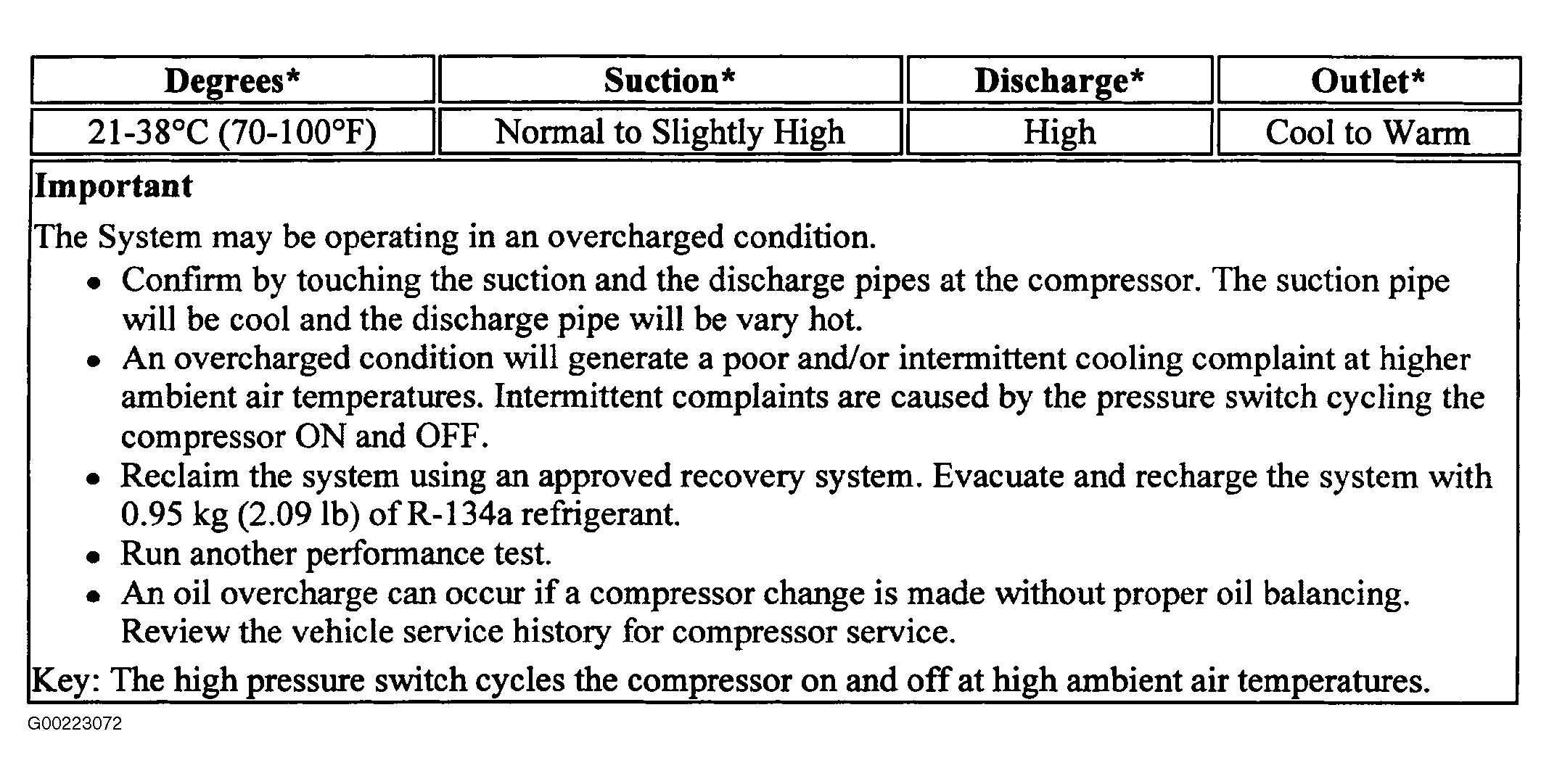

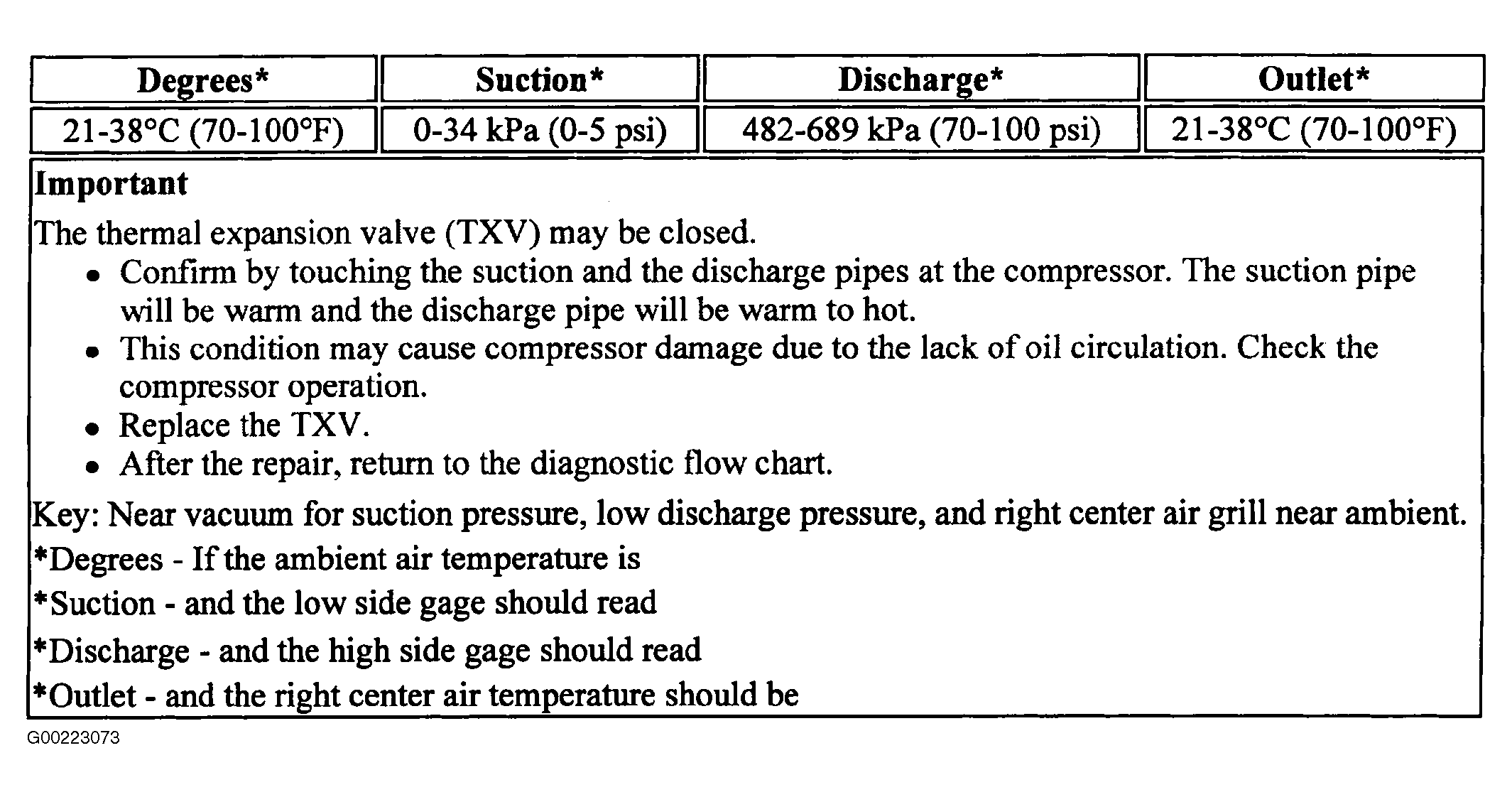

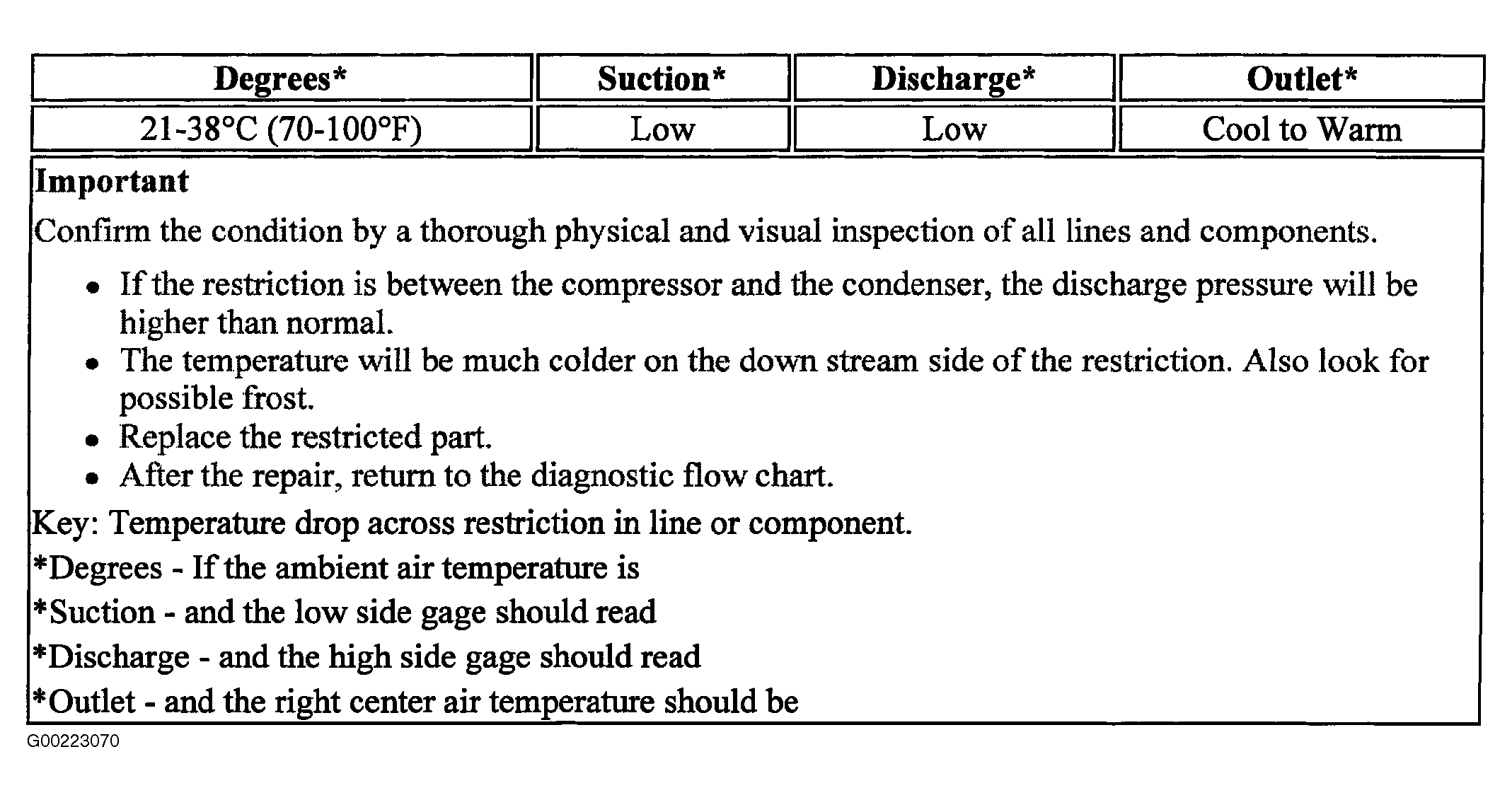

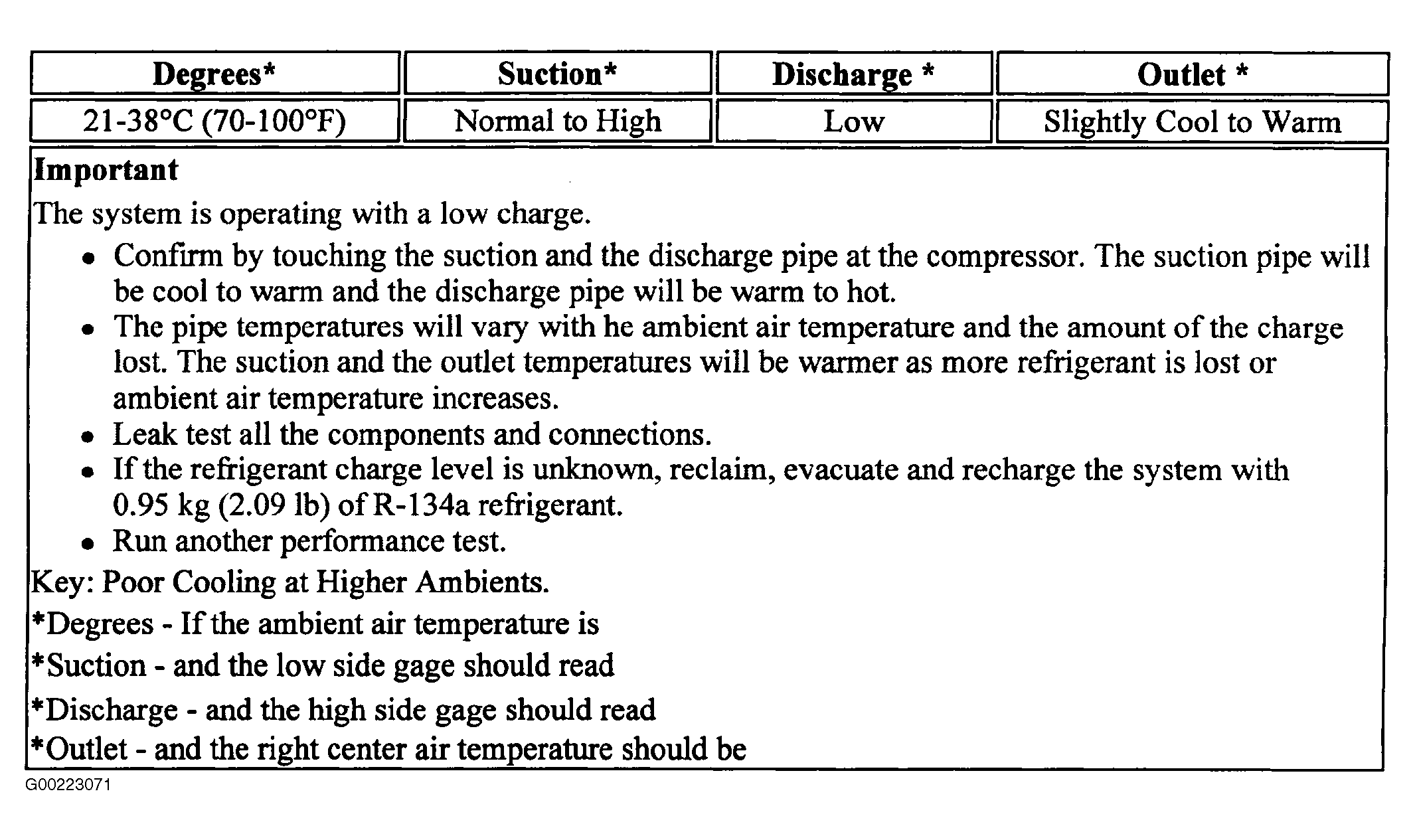

. For 3.0L models see Fig 5
-Fig 8
. When ALL pressure and temperature readings fall within the ranges of a given table, use that table to repair the vehicle.
