Fog Lamp: Fusion
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

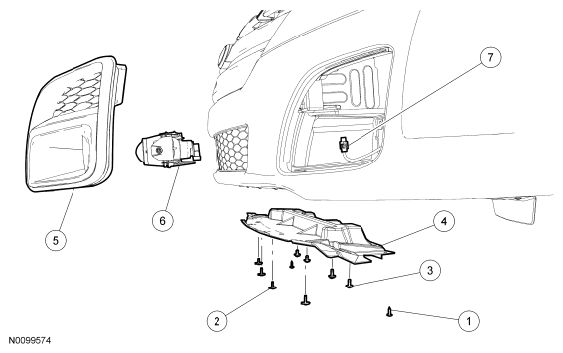

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W706805 | Lower radiator air deflector outer screws (2 required) |
| 2 | W709976 | Lower radiator air deflector front screws (4 required) |
| 3 | N807389 | Lower radiator air deflector pin-type retainers (4 required) |
| 4 | 8327 | Lower radiator air deflector |
| 5 | 17E811/17E810 | Fog lamp bezel (LH/RH) |
| 6 | 15K200 | Fog lamp |
| 7 | - | Fog lamp electrical connector (part of 14290) |
