Wheel Alignment Angles: Toe

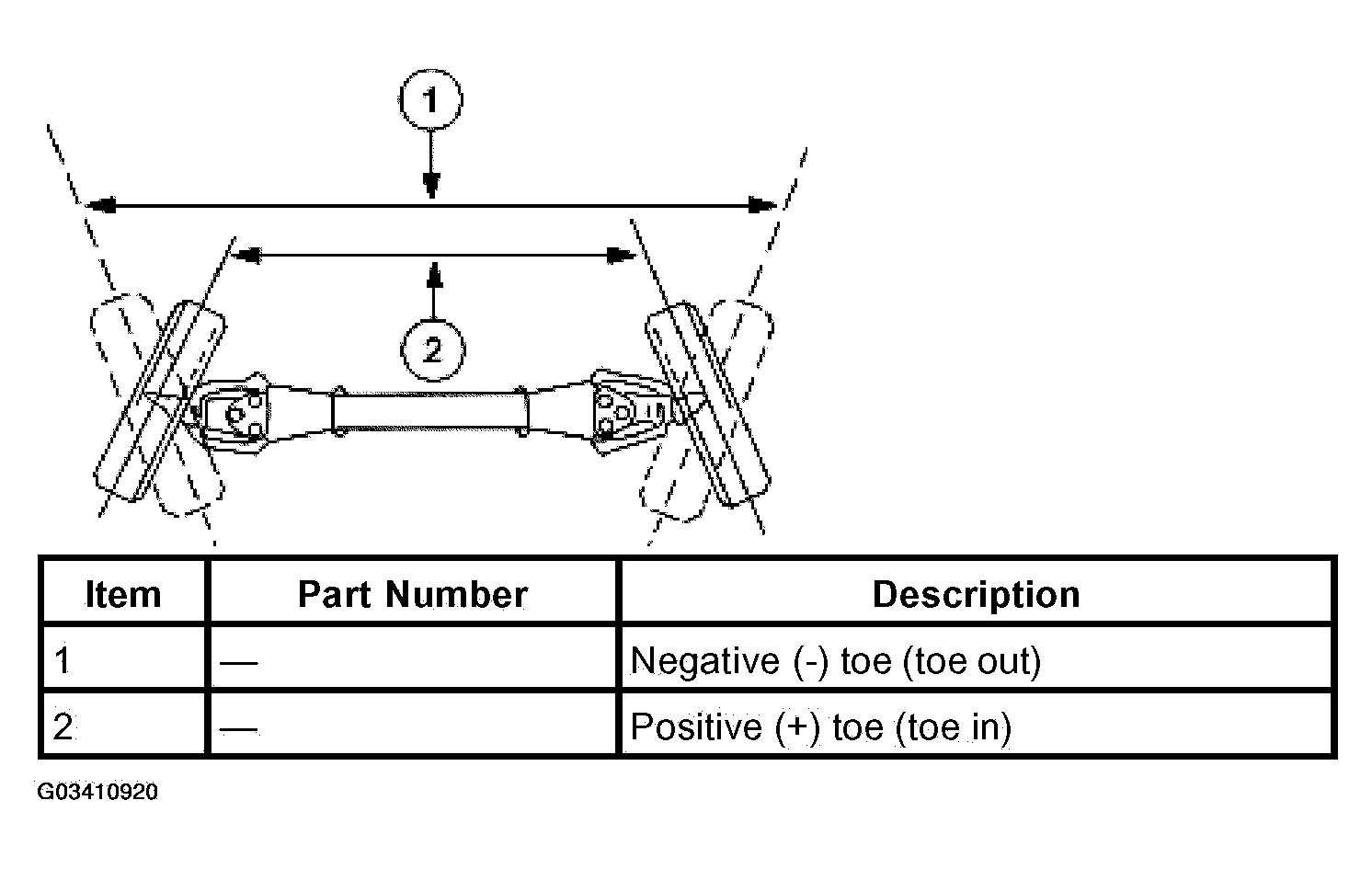

Fig 1: Identifying Toe

Courtesy of FORD MOTOR CO.

When the wheels are turned in, toe is positive (+) (toe in). When the wheels are turned out, toe is negative (-) (toe out). Toe is measured in degrees, from side to side, and totaled.
