Special Tool(s)

Fig 1: Identifying Special Tool(s) (1 Of 2)
G03412583Courtesy of FORD MOTOR CO.

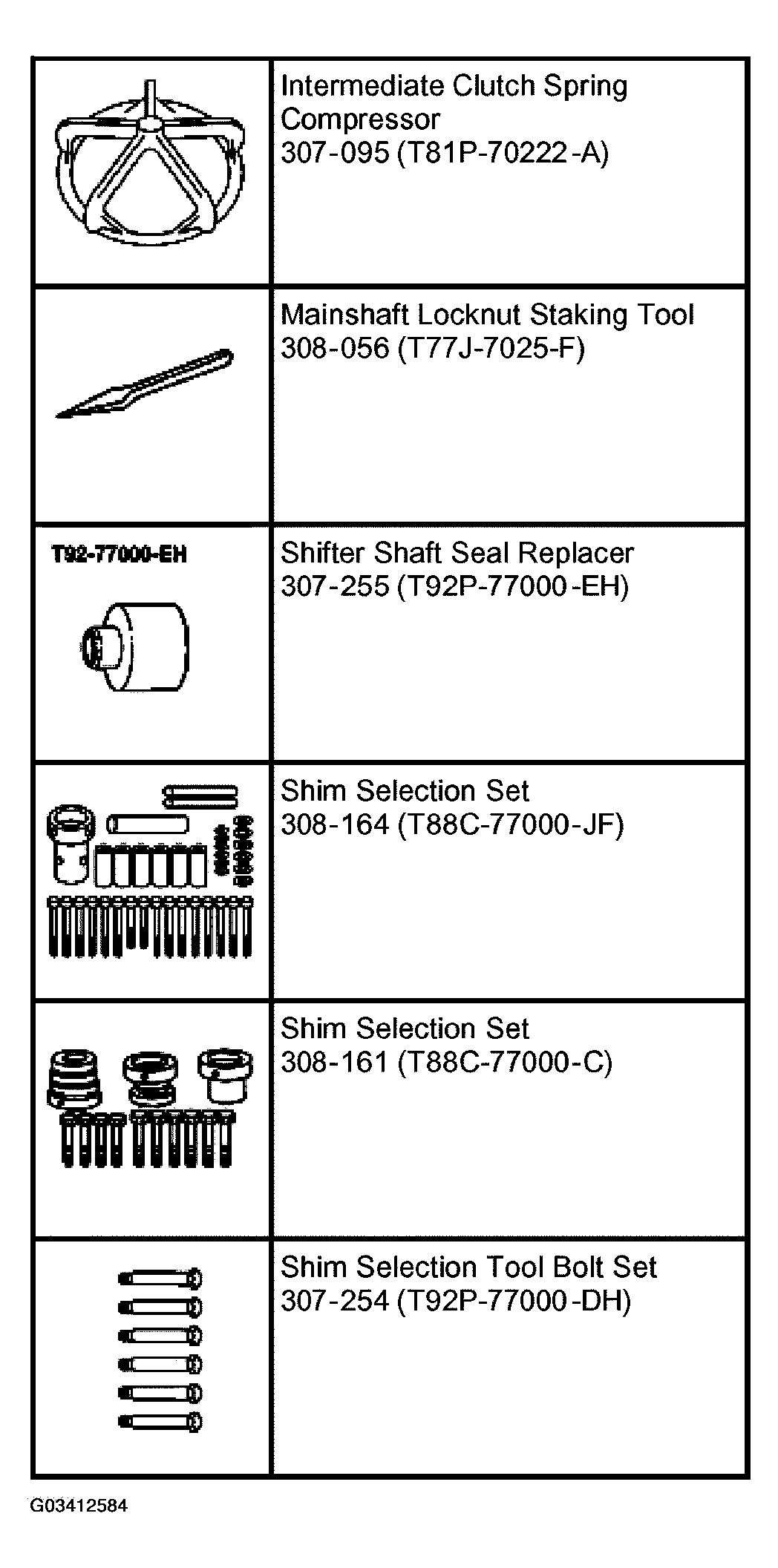

Fig 2: Identifying Special Tool(s) (2 Of 2)
G03412584Courtesy of FORD MOTOR CO.
