Fluid Level Check

Under normal circumstances the fluid level should be checked during normal maintenance. If the transaxle starts to slip, shift slowly, or has signs of fluid leaking, the fluid level should be checked immediately.

1. With the transaxle in (P) PARK, the engine at idle, foot pressed on the brake, move the selector lever through each gear and allow engagement of each gear. Place the selector lever in the PARK position.
2. Wipe the fluid level indicator with a clean cloth.
3. Install the fluid level indicator back in the fluid filler tube until it is fully seated, then remove the indicator. The fluid level should be within the normal operating range.

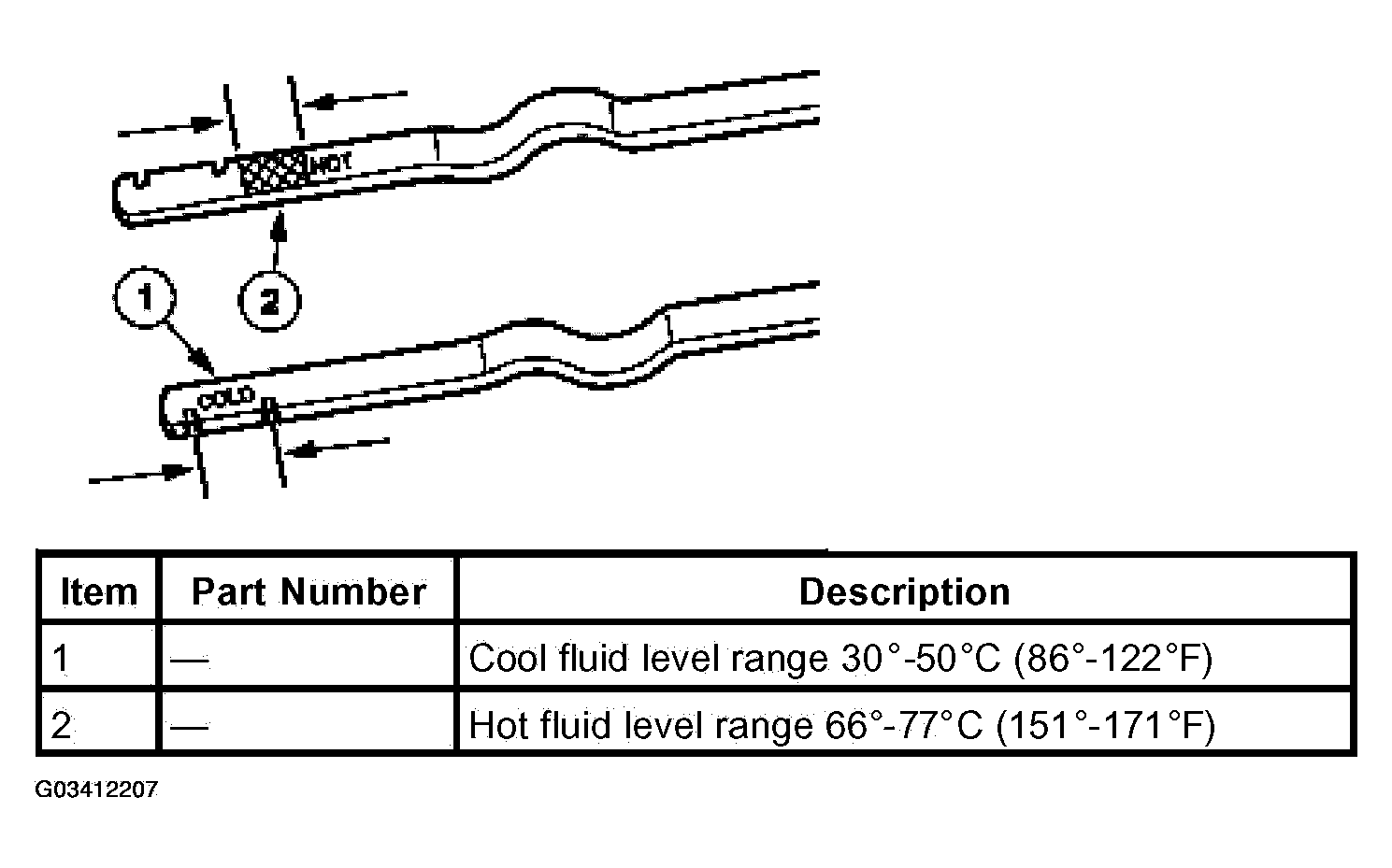

   Fig 1: Checking Fluid Level

   Courtesy of FORD MOTOR CO.
