Idler Gear: Disassembly

    NOTE: The idler gear bearing must be replaced.

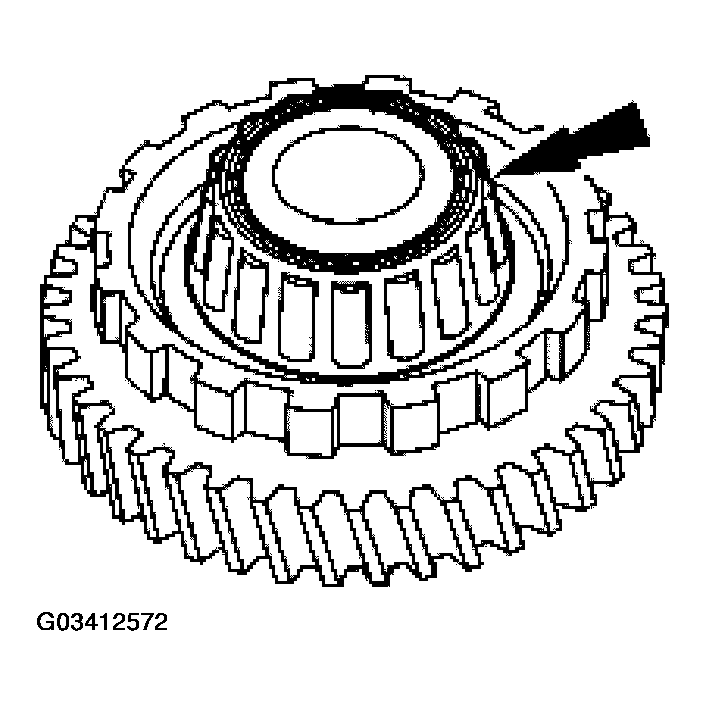

    Fig 1: Removing Idler Gear Bearing Cage
    G03412572Courtesy of FORD MOTOR CO.
  1. Remove the idler gear bearing cage.
  2. Remove the idler gear bearing inner race.

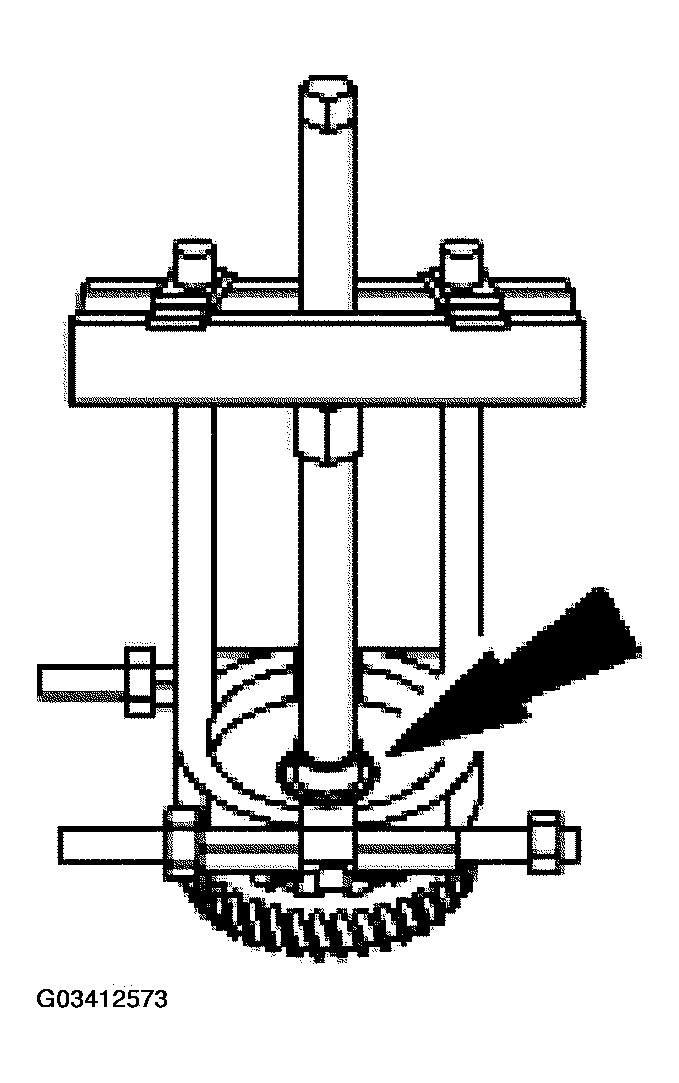

    Fig 2: Removing Idler Gear Bearing Inner Race
    G03412573Courtesy of FORD MOTOR CO.
  3. Check the idler gear shaft for wear or damage. Replace if necessary.
  4. Check the idler gear for wear or damage. Replace if necessary.
  5. Measure the distance between the end of the idler gear and the idler gear bearing inner race. Record this measurement for use during reassembly. The measurement is used for selection of the reduction gear bearing adjusting shim.

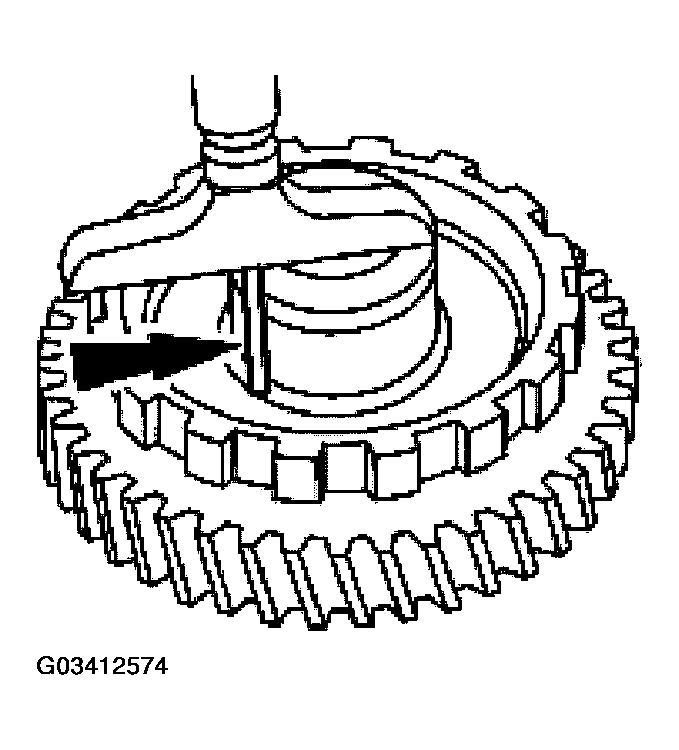

    Fig 3: Measuring Distance Between End Of Idler Gear And Idler Gear Bearing Inner Race
    G03412574Courtesy of FORD MOTOR CO.
