Intermediate Servo - 2-4 Servo: Installation

  1. Install the second apply piston assembly.

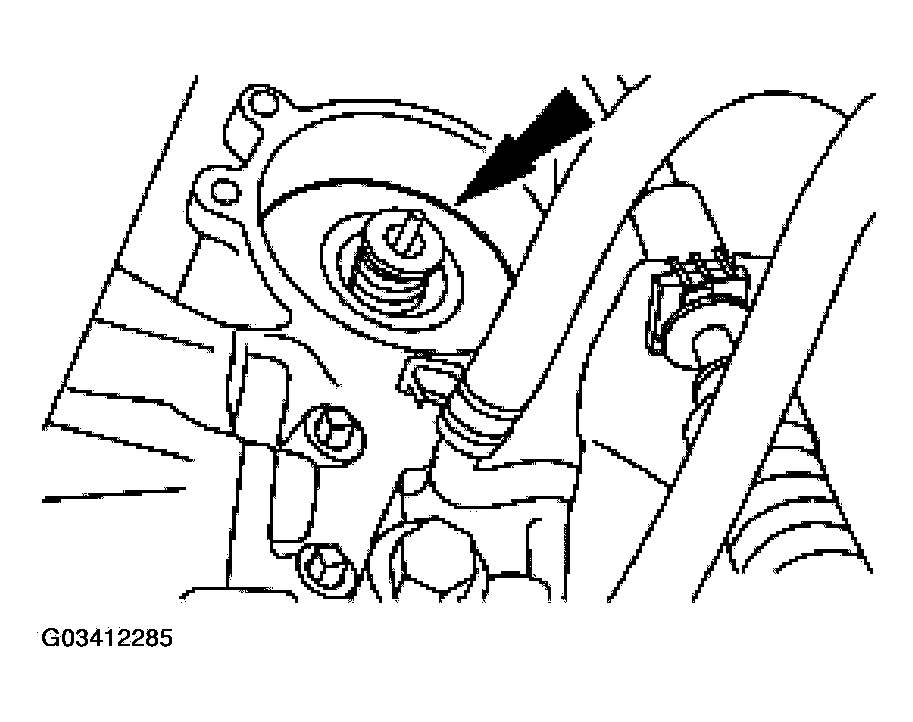

    Fig 1: Installing Second Apply Piston Assembly
    G03412285Courtesy of FORD MOTOR CO.
  2. Install the 2-4 servo piston retainer assembly.
    1. Install the retainer assembly.
    2. Install the bolts.

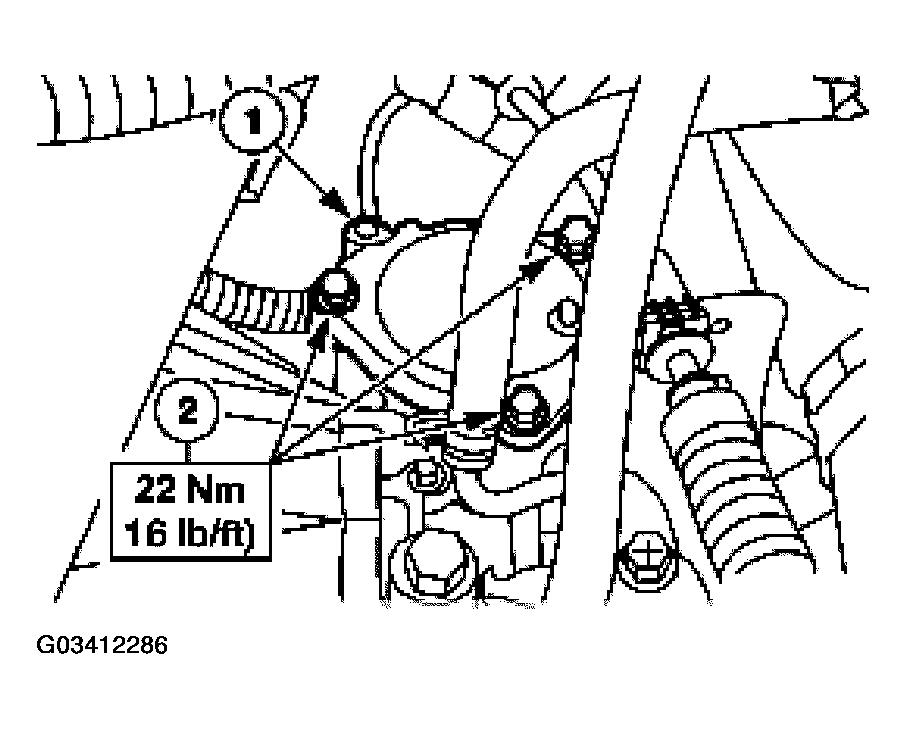

      Fig 2: Installing Bolts
      G03412286Courtesy of FORD MOTOR CO.
  3. Install the transaxle fill tube.
    1. Install the fill tube.
    2. Install the fill tube bolts.
    3. Install the ground strap nut.

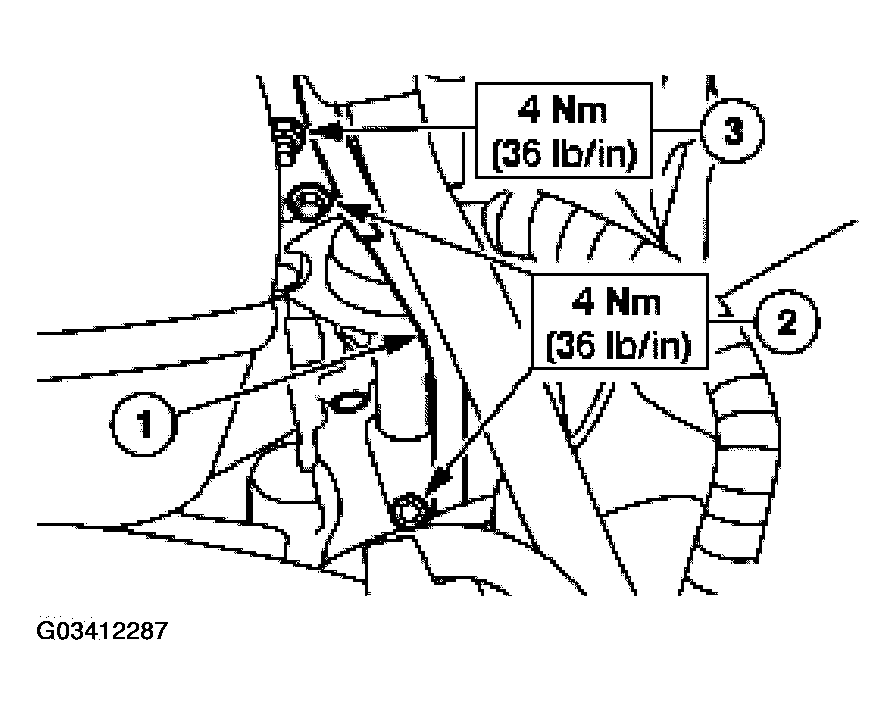

      Fig 3: Installing Fill Tube Bolts
      G03412287Courtesy of FORD MOTOR CO.
  4. Install the engine splash shield.
  5. Lower the vehicle.
    6. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
  6. Connect the battery ground cable.
