Pinpoint Test H: Traction Control Is Inoperative/Cannot Be Disabled

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

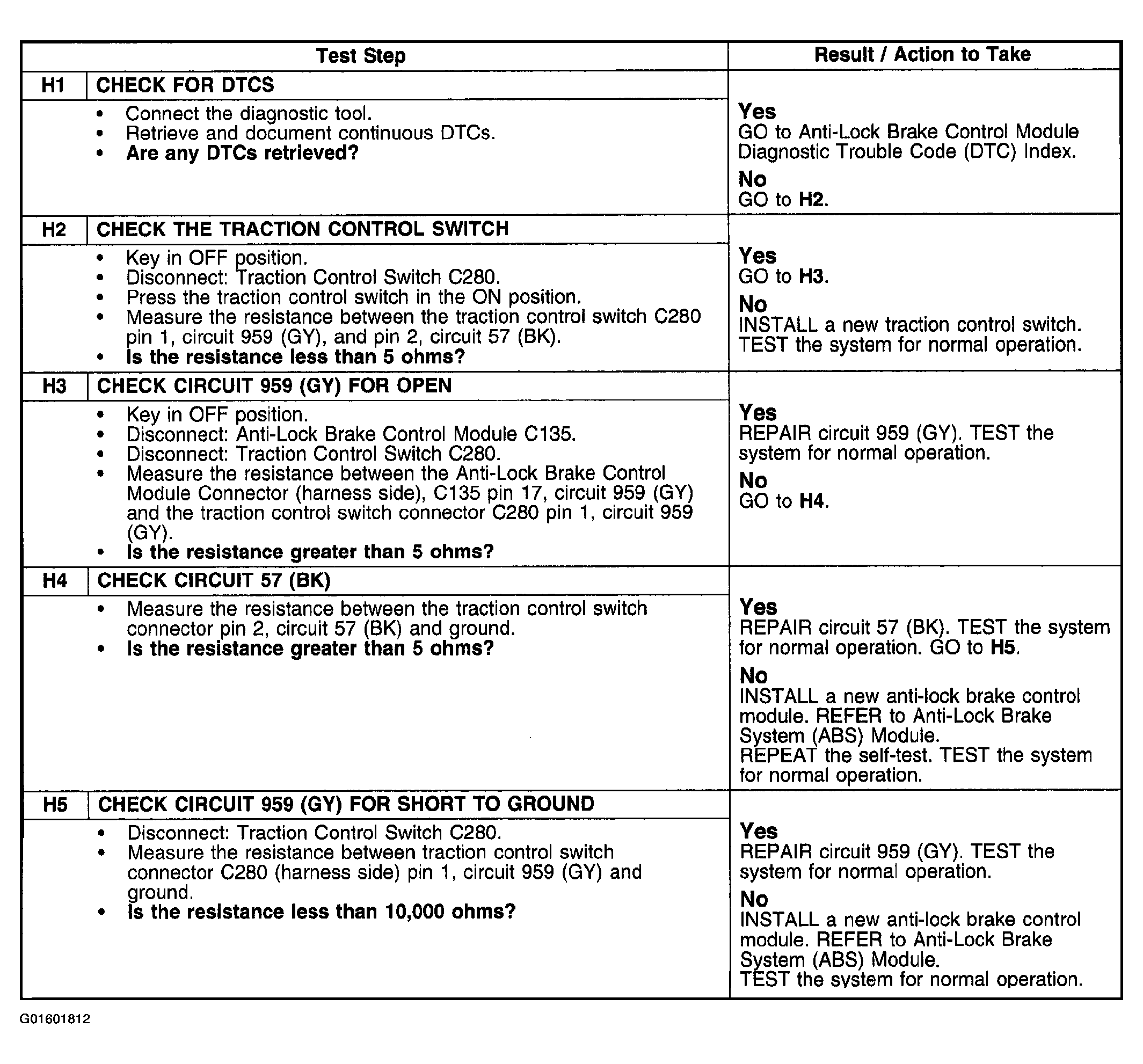

Fig 1: Pinpoint Test H: Traction Control Is Inoperative/Cannot Be Disabled
G01601812Courtesy of FORD MOTOR CO.
