Disassembly & Assembly: Notes

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the disc brake caliper. For additional information, refer to FRONT DISC BRAKE .
Secure the disc brake caliper in a vise.

NOTE: Do not hone the piston bores. If the bores are excessively scored or corroded, install a new brake disc caliper.

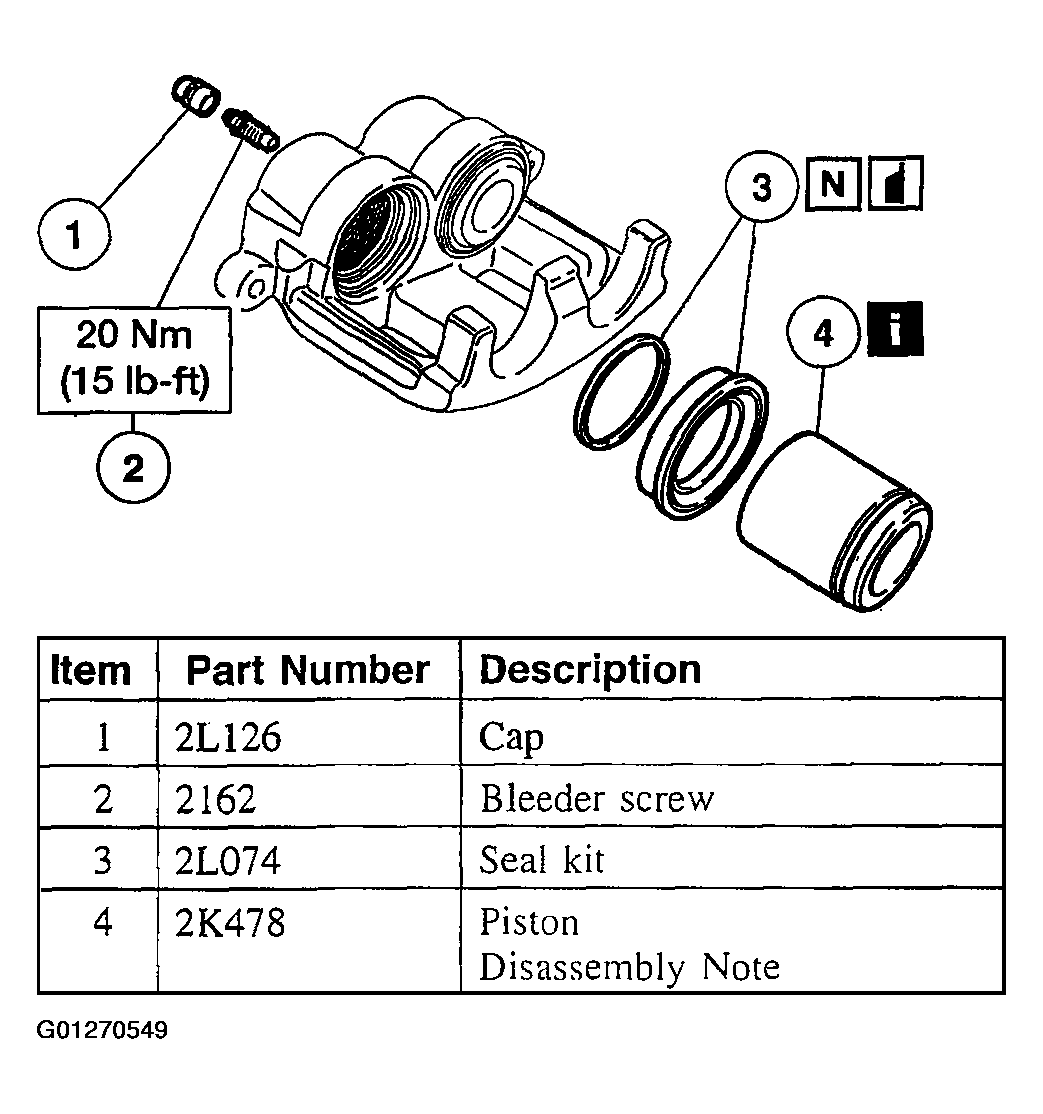

Fig 1: Identifying Different Components Of Brake Caliper - Front In Order Of Their Disassembling

Courtesy of FORD MOTOR CO.

Disassemble the components in the order indicated in the following illustration and table.
To assemble, reverse the disassembly procedure.
