Connector Circuit Reference

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

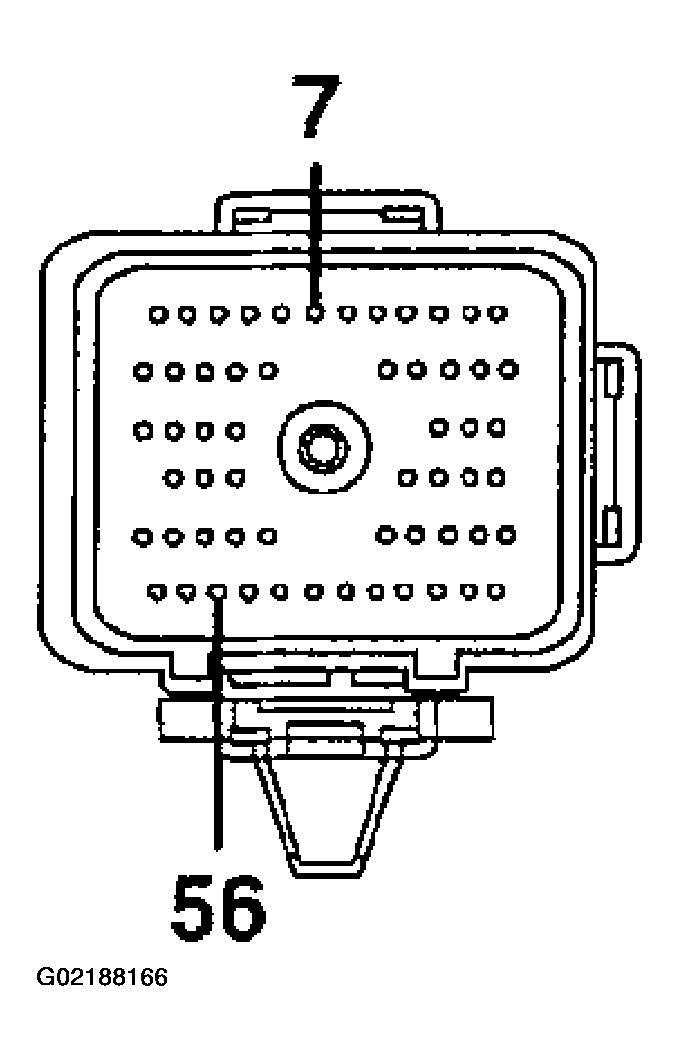

Fig 1: Identifying Powertrain Control Module (PCM) C175a Connector Pinouts

Courtesy of FORD MOTOR CO.

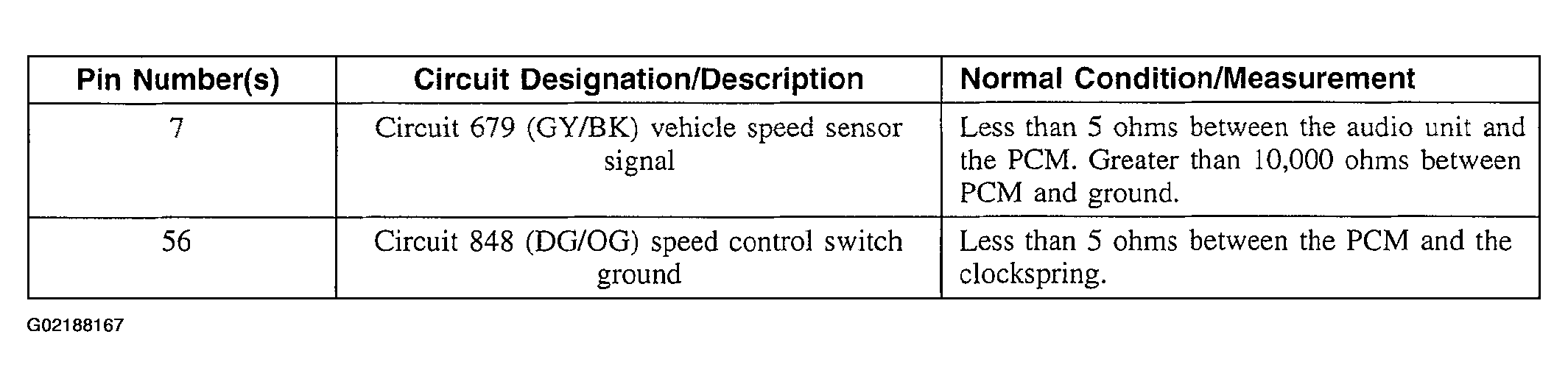

Fig 2: Identifying Powertrain Control Module (PCM) C175a Connector Pins Reference Table

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Clockspring C218a Connector Pinouts

Courtesy of FORD MOTOR CO.

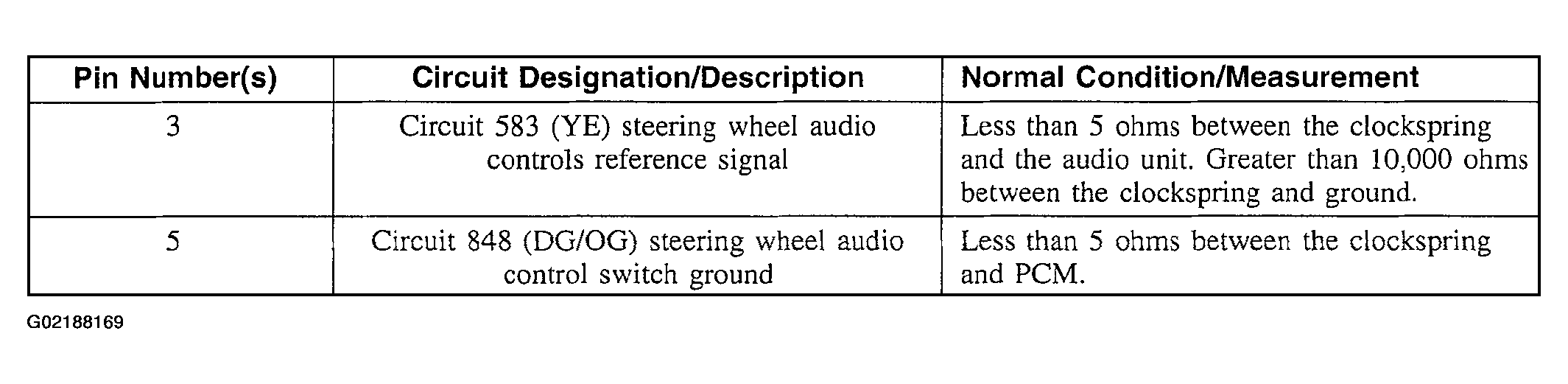

Fig 4: Identifying Clockspring C218a Connector Pins Reference Table

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Audio Unit C240a Connector Pinouts

Courtesy of FORD MOTOR CO.

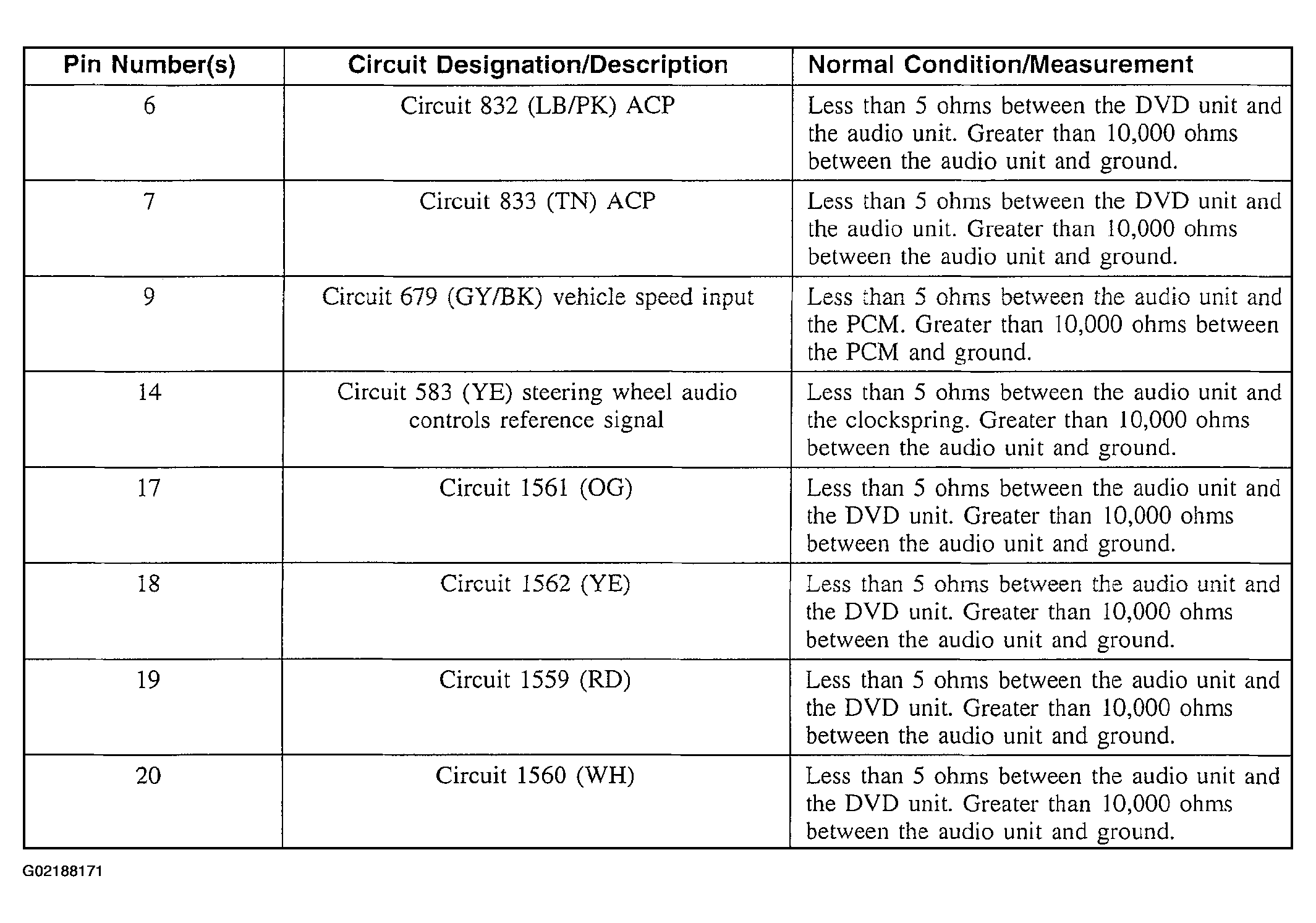

Fig 6: Identifying Audio Unit C240a Connector Pins Reference Table

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Audio Unit C240b Connector Pinouts

Courtesy of FORD MOTOR CO.

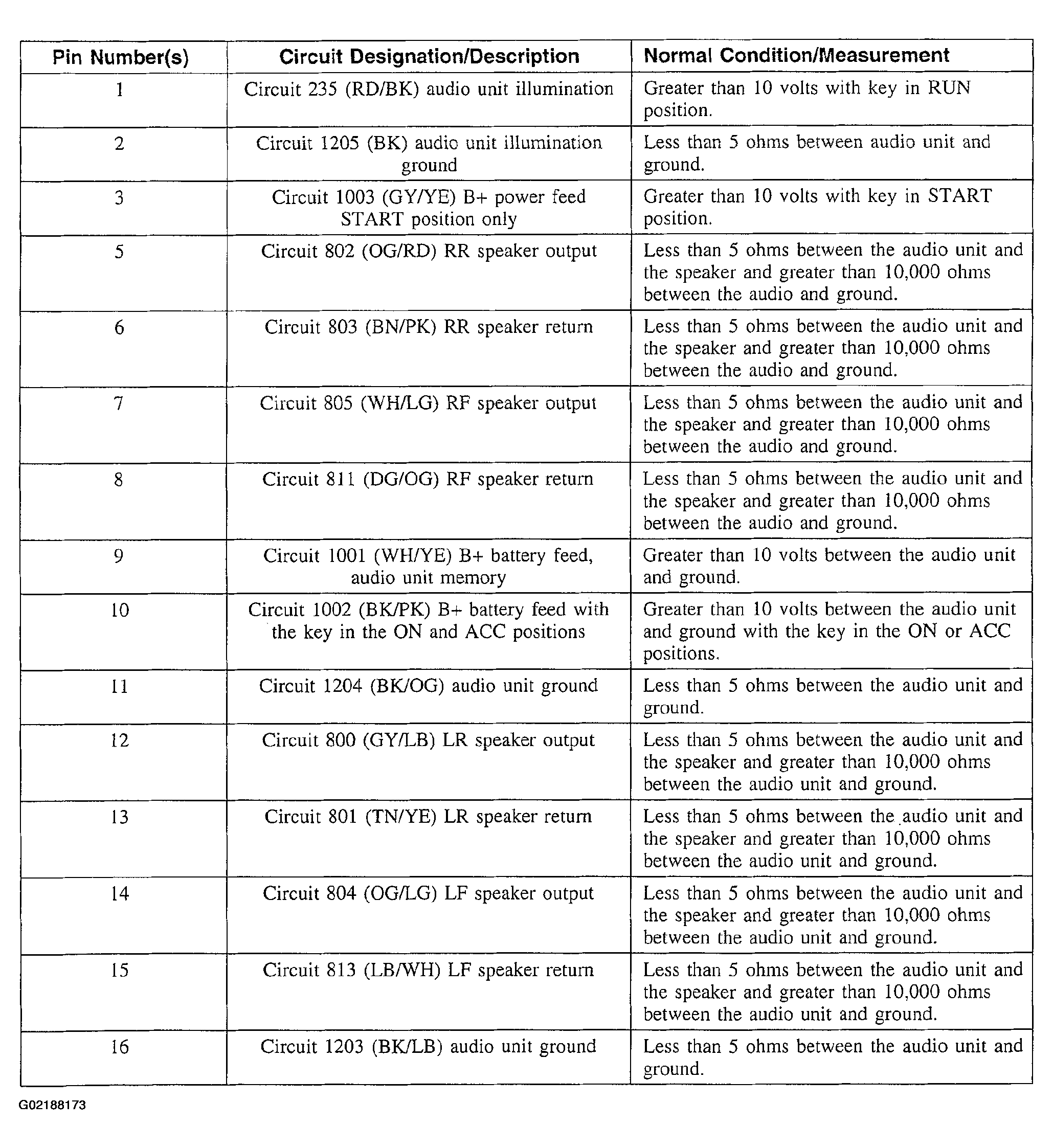

Fig 8: Identifying Audio Unit C240b Connector Pins Reference Table

Courtesy of FORD MOTOR CO.

Fig 9: Identifying Audio Unit C240c Connector Pinouts

Courtesy of FORD MOTOR CO.

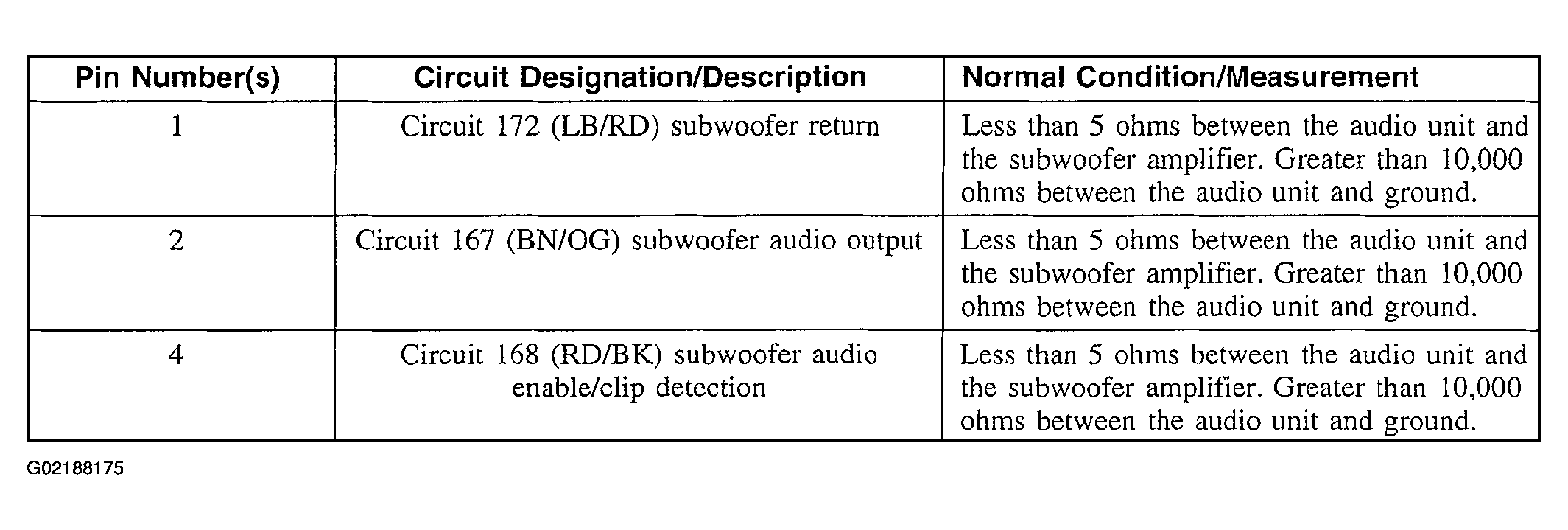

Fig 10: Identifying Audio Unit C240c Connector Pins Reference Table

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Subwoofer Amplifier C466 Connector Pinouts

Courtesy of FORD MOTOR CO.

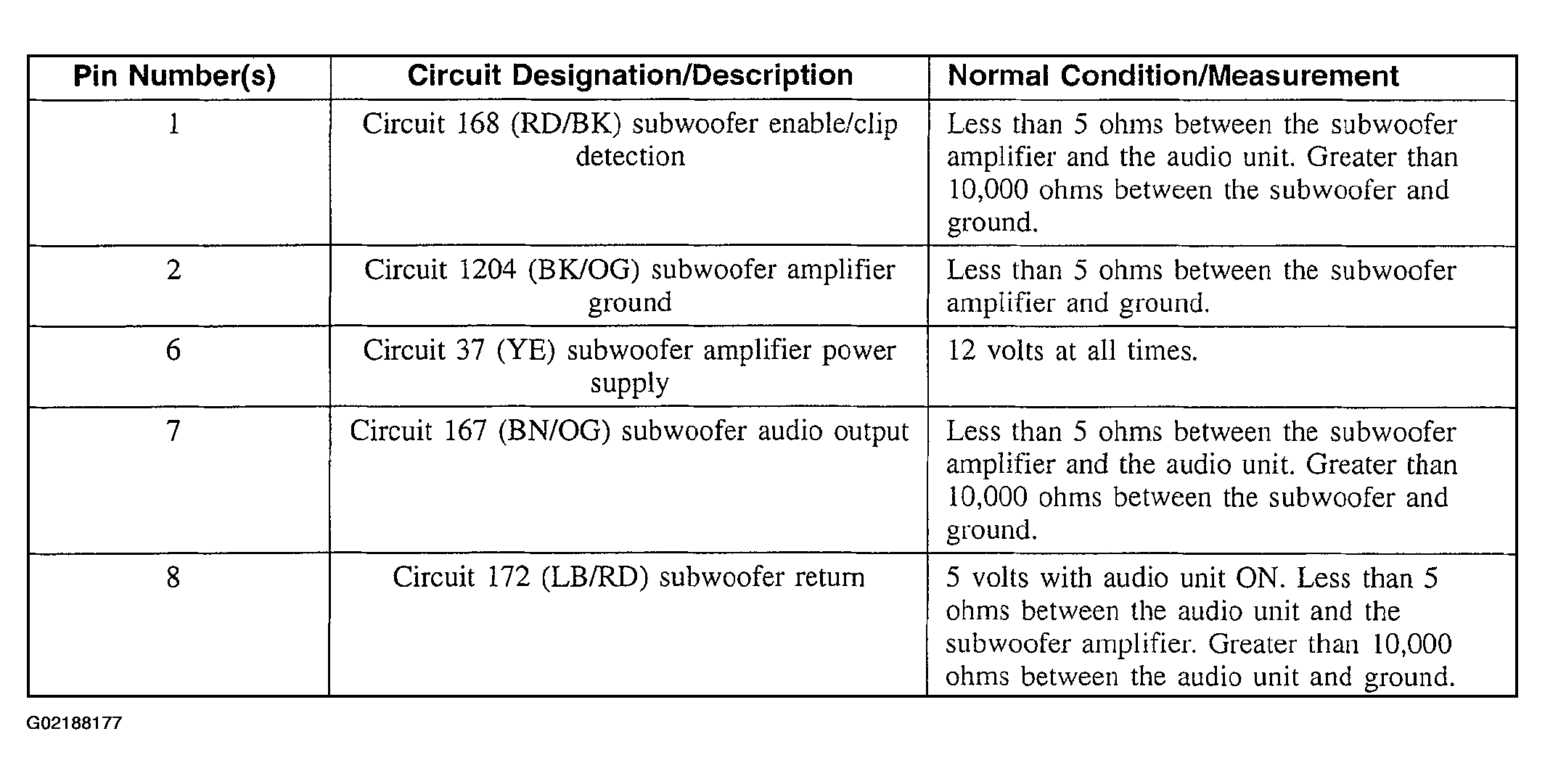

Fig 12: Identifying Subwoofer Amplifier C466 Connector Pins Reference Table

Courtesy of FORD MOTOR CO.

Fig 13: Identifying DVD Unit C949 Connector Pinouts

Courtesy of FORD MOTOR CO.

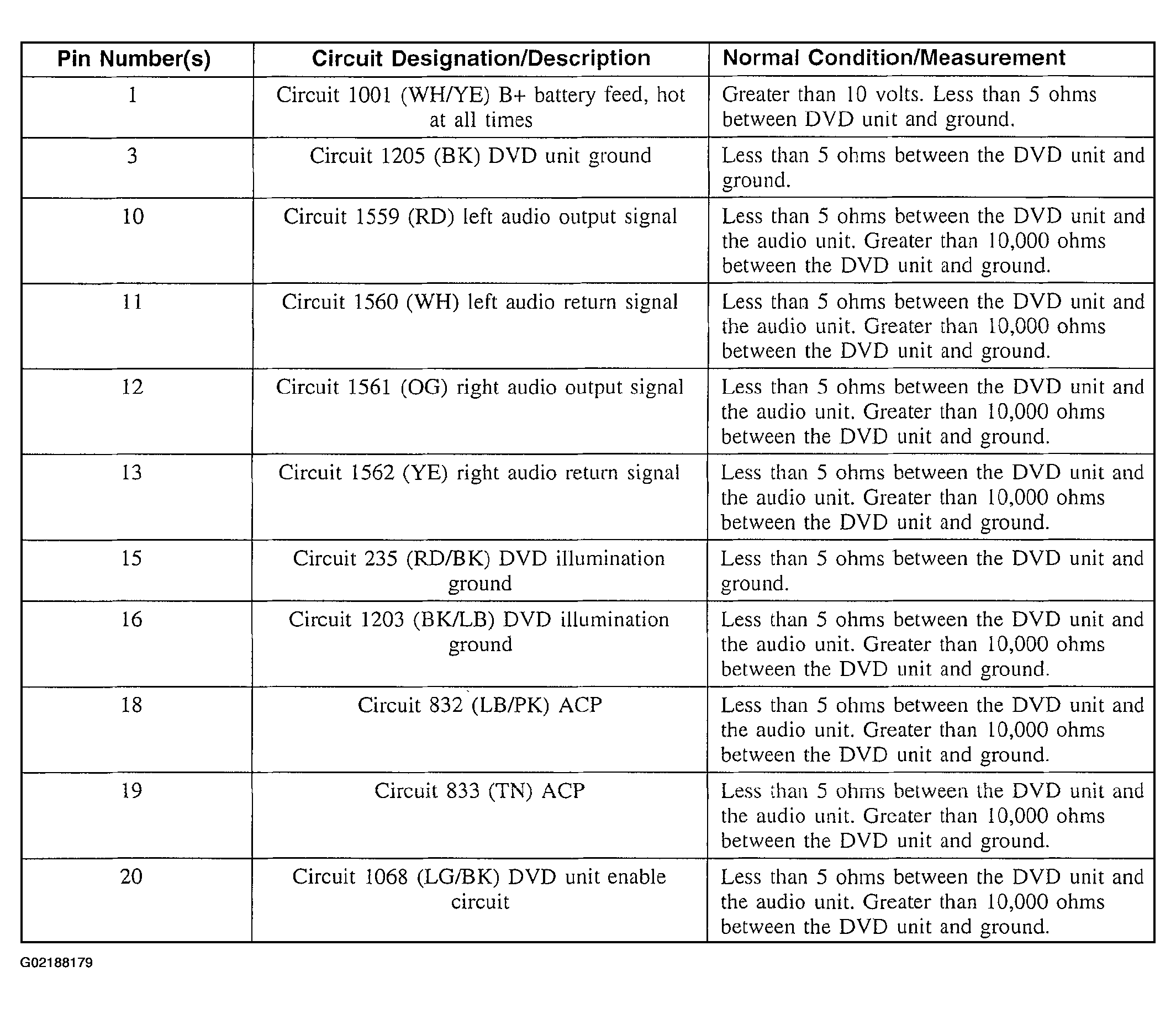

Fig 14: Identifying DVD Unit C949 Connector Pins Reference Table

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Speaker C523 (LF), C612 (RF), C702 (LR), C802 (RR) Connector Pinouts

Courtesy of FORD MOTOR CO.

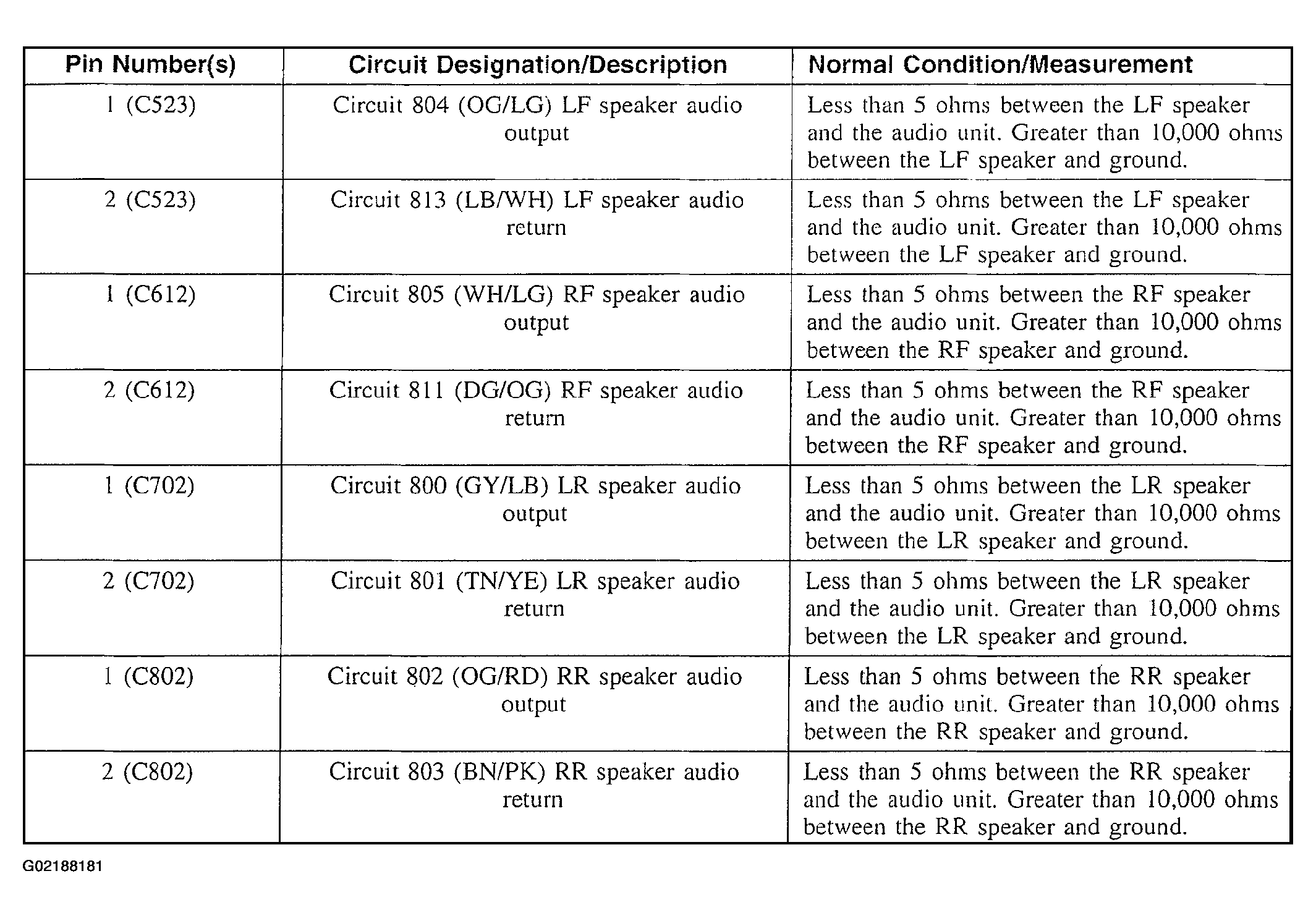

Fig 16: Identifying Speaker C523 (LF), C612 (RF), C702 (LR), C802 (RR) Connector Pins Reference Table

Courtesy of FORD MOTOR CO.
