Vehicle Security Module C3008e

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Vehicle Security Module C3008e (1 Of 2)
G02188244Courtesy of FORD MOTOR CO.

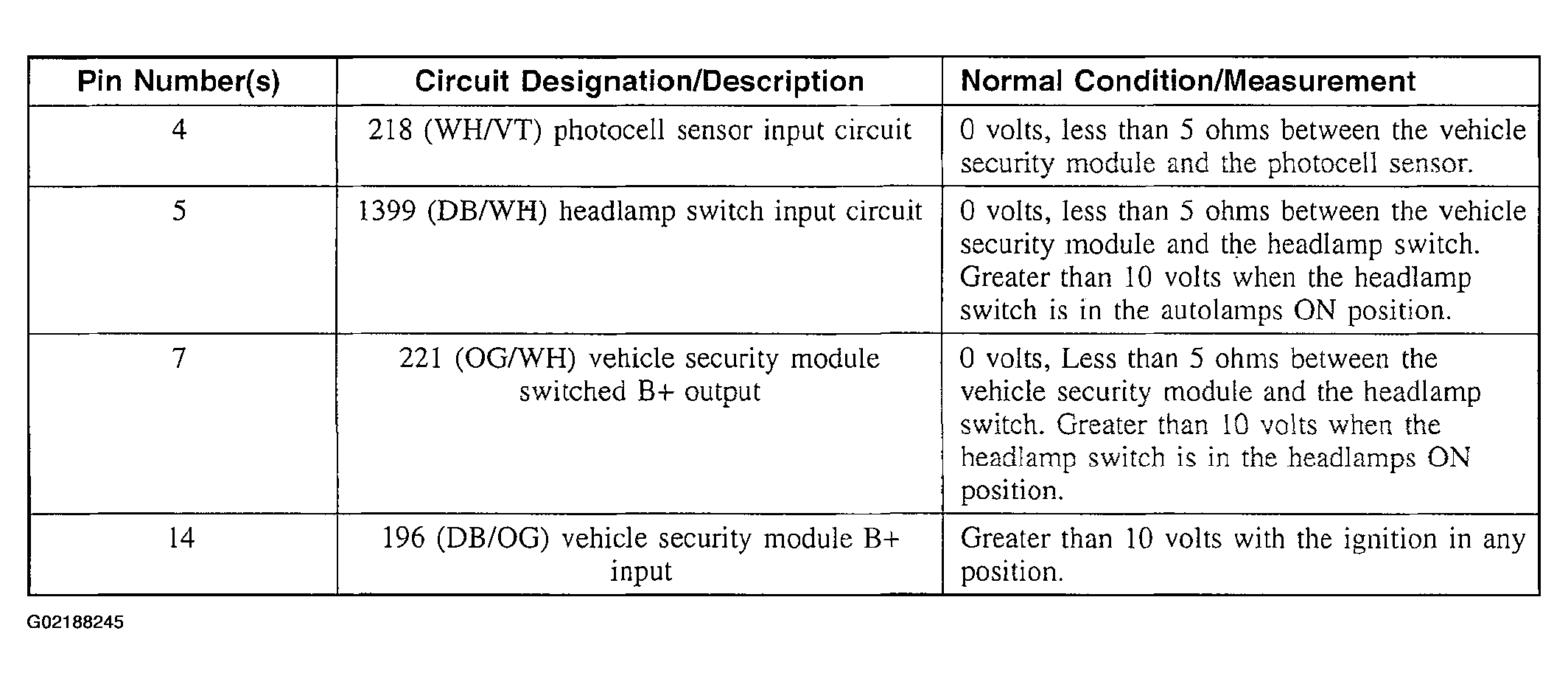

Fig 2: Identifying Vehicle Security Module C3008e (2 Of 2)
G02188245Courtesy of FORD MOTOR CO.
