General Specifications

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

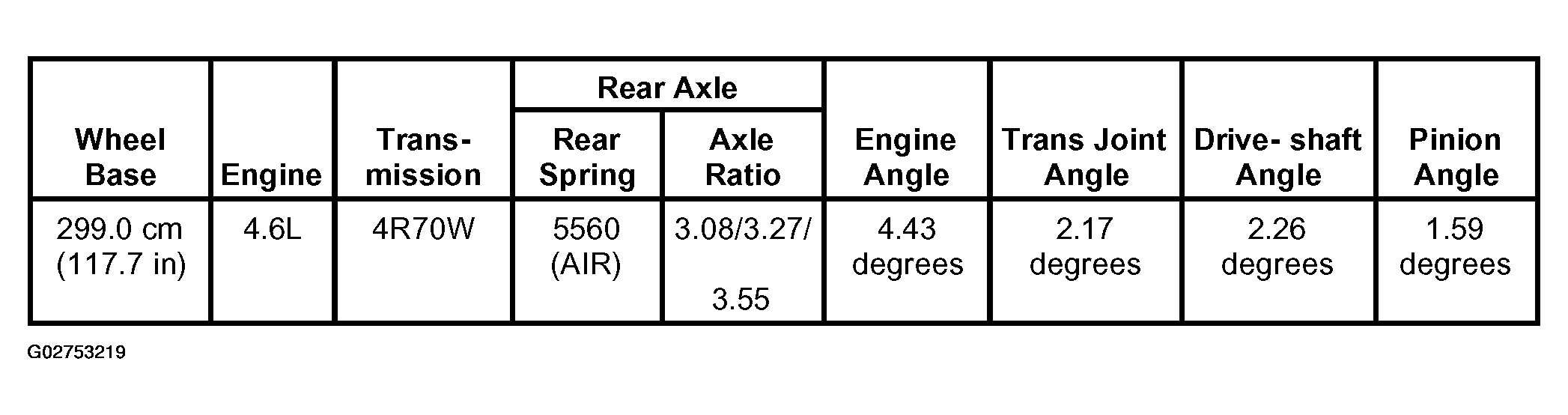

Fig 1: Identifying Rear Driveline Angles @ Curb Specifications

Courtesy of FORD MOTOR CO.

GENERAL SPECIFICATIONS

Item

Specification

Capacities

Rear axle ⁽¹⁾

2.25L (4.75 pints)

Traction-Lok® ⁽²⁾

118 ml (4 oz.)

Rear Axle

SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL

WSP-M2C197-A

Additive Friction Modifier C8AZ-19B546-A

EST-M2C118-A

(Police/Taxi/Limo Applications) High Performance SAE 75W-140 Rear Axle Lubricant F1TZ-19580-B

WSL-M2C192-A

Driveshaft Slip Yoke

Premium Long-Life Grease XG-1-C

ESA-M1C75-B

⁽¹⁾	Service refill capacities are determined by filling the axle 6.3 mm (1/4 inch) to 14.3 mm (9/16 inch) below the bottom of the filler hole. The vehicle must be on a level surface.

⁽²⁾	Additive Friction Modifier
