Cable Adjustment

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Crown Victoria and Grand Marquis shown, Marauder is similar.

Remove the retaining clip from the speed control actuator cable adjuster.

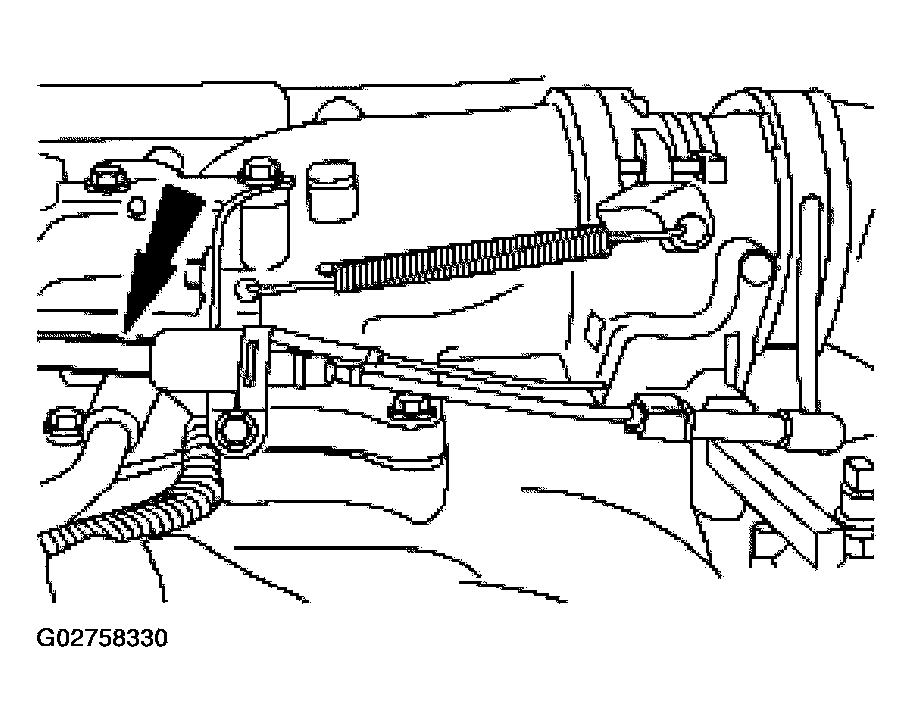

Fig 1: Removing Retaining Clip From Speed Control Actuator Cable Adjuster
Courtesy of FORD MOTOR CO.

NOTE: Make sure the throttle is in the fully closed position.

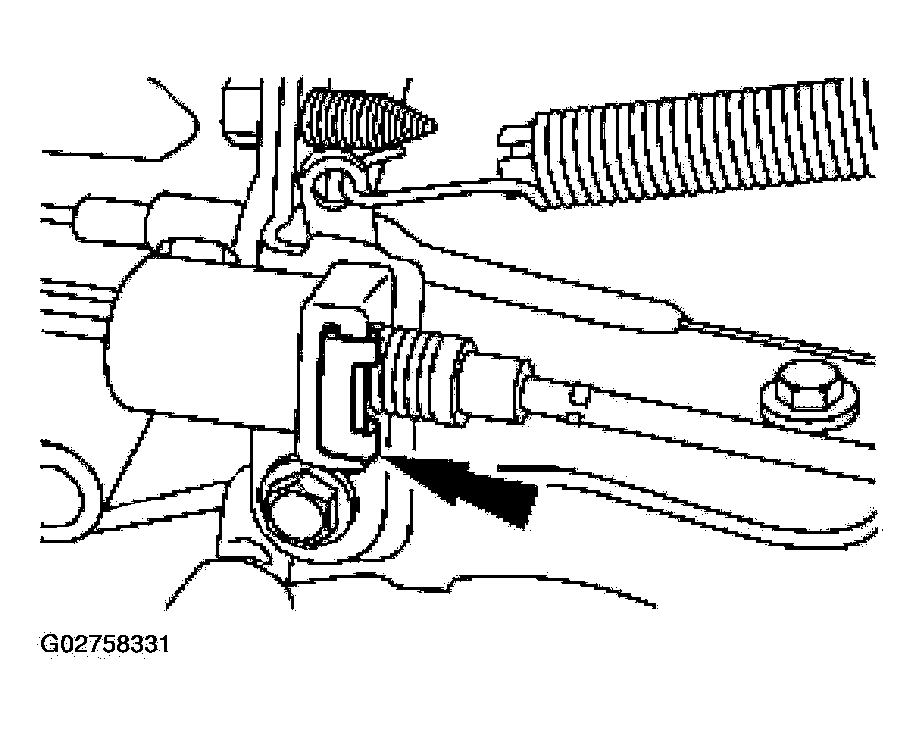

Fig 2: Pulling On Speed Control Actuator Cable To Take Up Slack

Courtesy of FORD MOTOR CO.

Pull on the speed control actuator cable to take up slack, then back off at least one notch so there is approximately 3 mm (0.118 in) of slack in the speed control actuator cable.
Insert the speed control actuator cable retaining clip and snap into place.

Fig 3: Inserting Speed Control Actuator Cable Retaining Clip
Courtesy of FORD MOTOR CO.
Verify that the throttle linkage operates freely and smoothly.
