Intake Components

WARNING: This page is about a different car, the 2003 Mercury Marauder. However, it is still accessible from the selected car via links, so may be relevant.

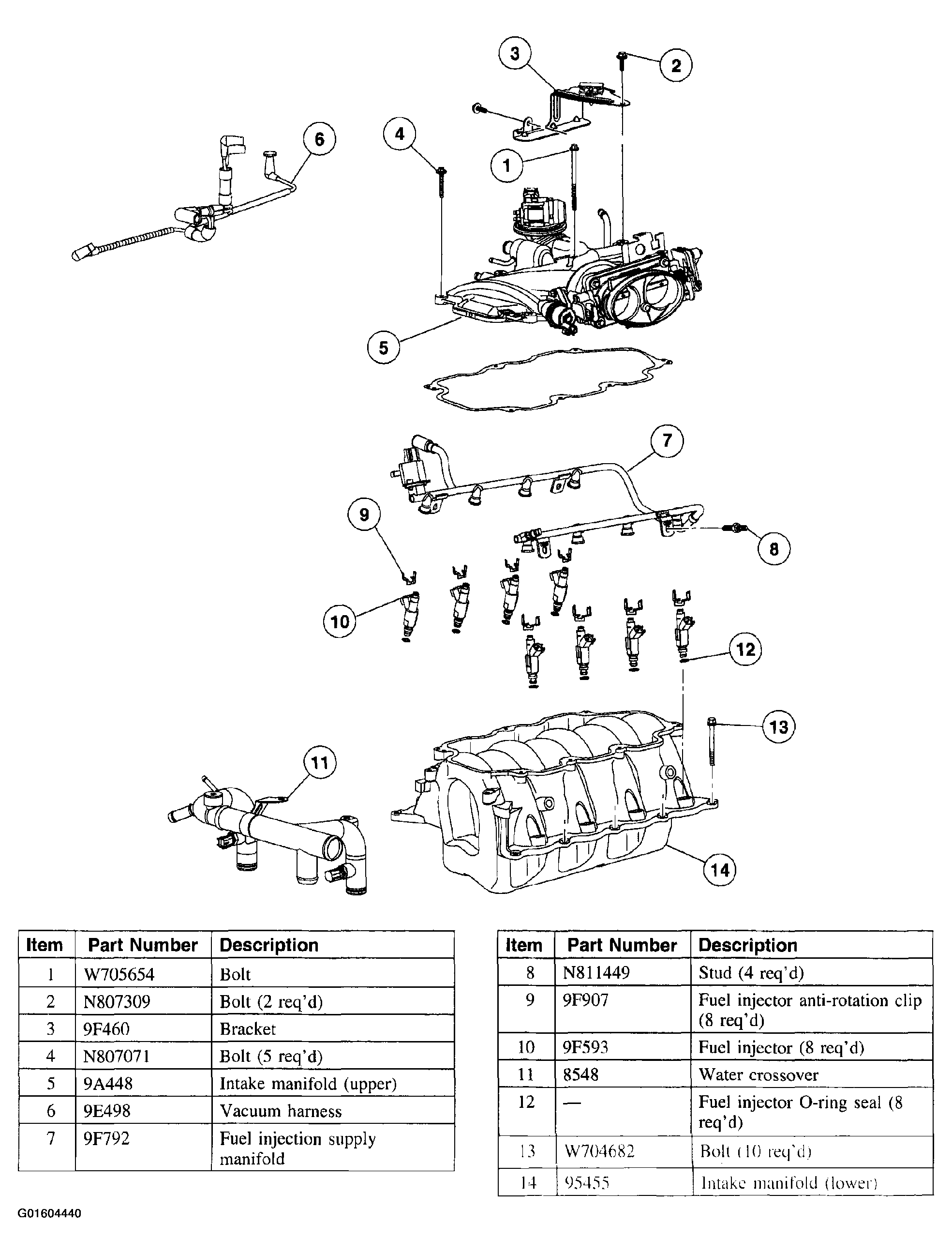

Fig 1: Exploded View Of Intake Components
G01604440Courtesy of FORD MOTOR CO.
